Description

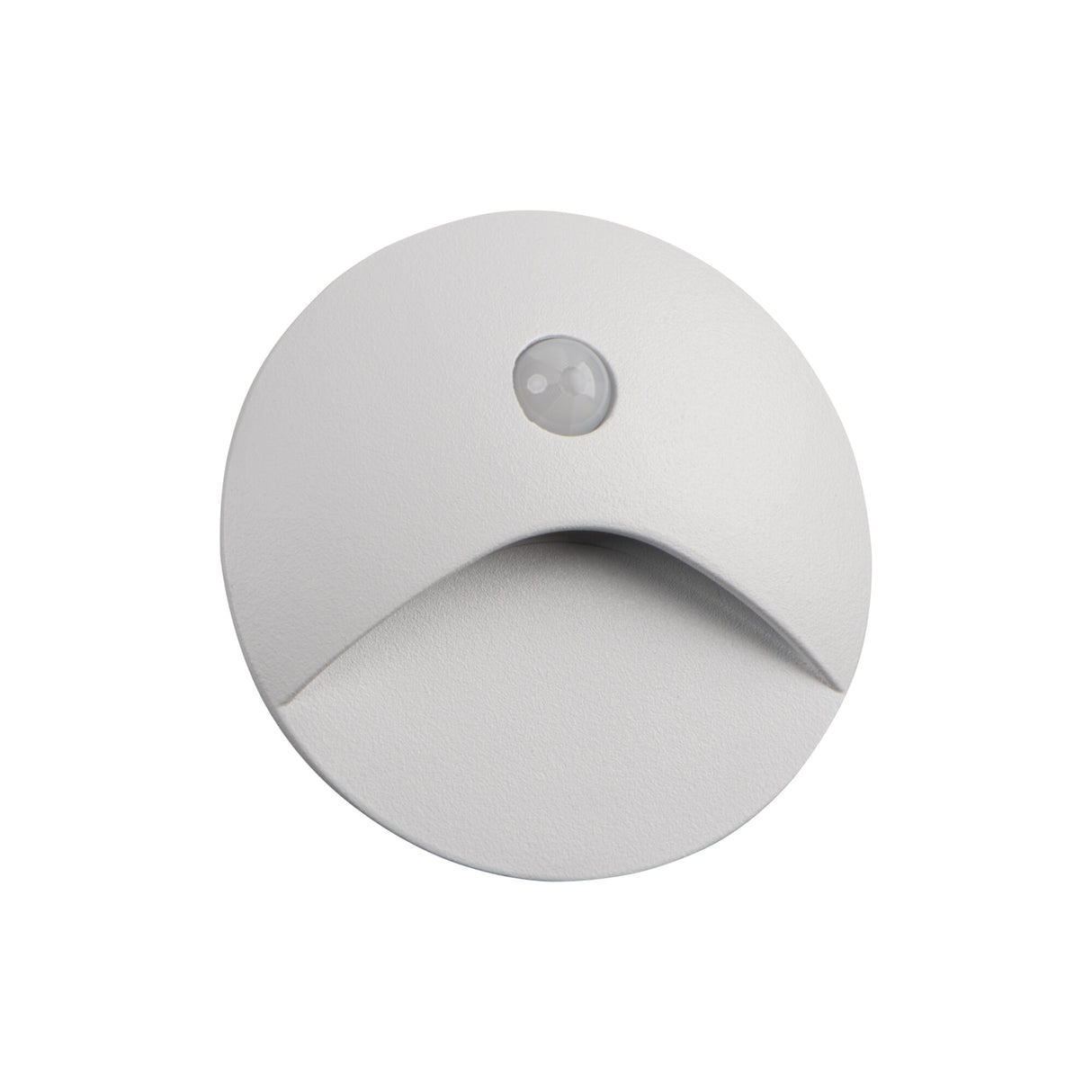

The EXIN is a recessed LED step light with a built-in PIR sensor, drawing 2.5W to deliver 50 lumens of cool white light at 4000K. Sized at Ø80 × 48 mm, it sets flush into the wall to wash a low, even pool of light across the surface below. American buyers searching for a recessed stair light will find the same fitting under that name, though step light is the term used throughout this listing. The PIR triggers the light on approach, so the fixture only runs when someone passes rather than staying lit through the night.

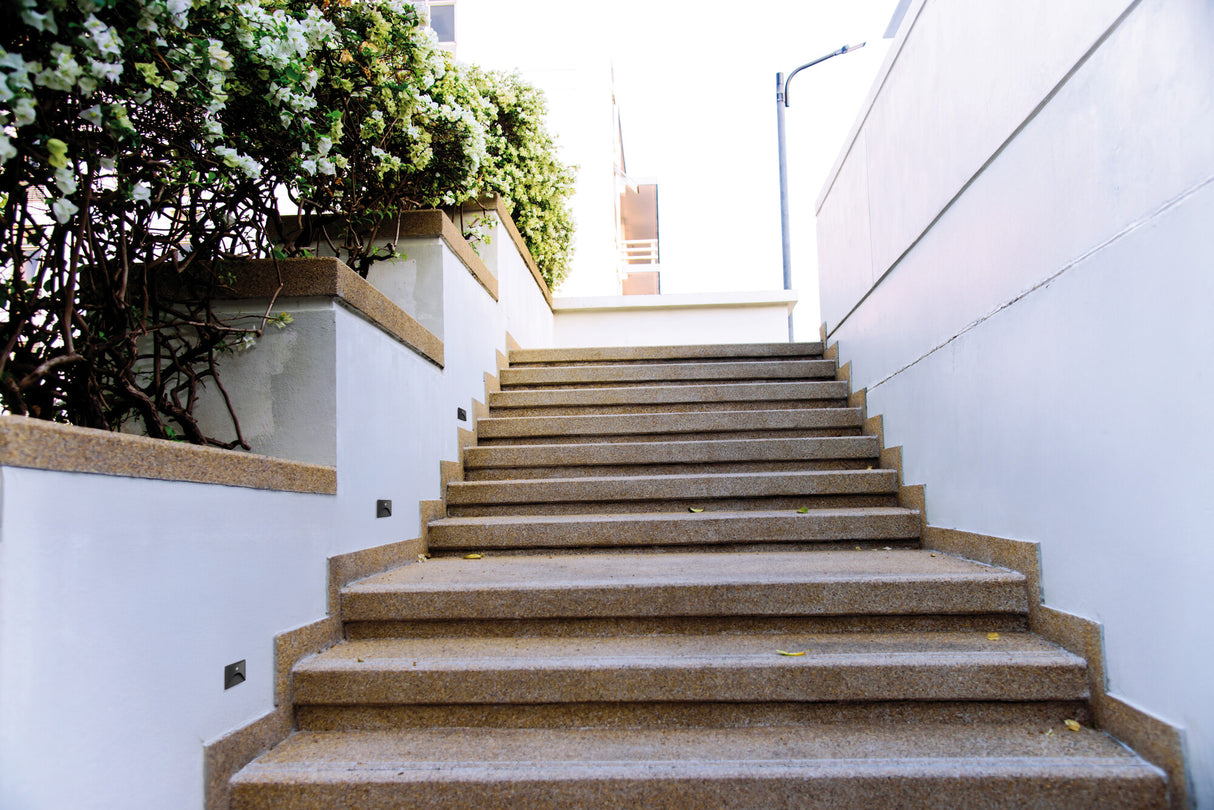

Designed for outdoor steps, stairwells, garden paths and entrance thresholds, the EXIN marks the edge of a tread or the line of a route rather than lighting a whole area. Its 50 lumen output is intended for low-level wayfinding, picking out a step or a change in level so footing stays clear after dark. The motion-activated beam suits passageways, porches and external staircases where light is wanted on demand. Because it recesses into the wall at the height of the step it serves, plan the position so each light covers the tread directly beneath it.
The body is aluminium alloy in a white finish, rated IP65 so it copes with exposed outdoor positions and direct rain. The fitting recesses into the wall and is not dimmable, with a fixed 4000K cool white tone and a rated lifespan of 30,000 hours. It runs on 220-240V AC mains, so no separate low-voltage transformer is required. The EXIN sits within our wider step and ground light range, with matching fittings available for runs of stairs or pathways.
Specification
| Power |
2.5W |
| Voltage |
220-240 AC |
| Luminous flux |
50 lm |
| Efficiency |
20 lm/W |
| Colour temperature |
4000K |
| Colour rendering (CRI) |
Ra 80 |
| IP rating |
IP65 |
| Dimmable |
No |
| Mounting |
Recessed Mount In The Wall |
| Lifespan |
30,000 hours |
| Shape |
Round |
| Dimensions |
Ø80 × 48 mm |
| Weight |
120 g |
| Material |
Aluminium Alloy |
| Finish |
White |
Downloads
Frequently Asked
Is the EXIN suitable for outdoor and wet locations?
Yes. It carries an IP65 rating, which means it is fully weatherproof and suited to exposed outdoor positions including direct rain. It can be used on external steps, garden paths and entrance areas.
Does it need a separate 12V transformer or driver?
No. The EXIN runs directly from 220-240V AC mains, so no low-voltage transformer or external driver is required. It can be wired into a standard mains supply at the step it serves.
How is it installed?
The fitting is a recessed mount that sets into the wall, leaving a flush face at the surface. With a Ø80 × 48 mm body, allow a matching recess at step height so the light washes the tread directly below it.
How do I clean and maintain it?
Wipe the face with a soft, damp cloth to clear dust, dirt or splashes, then dry it off. Avoid abrasive pads or solvents on the white aluminium finish, and clean the lens periodically so the PIR sensor stays responsive.
