Description

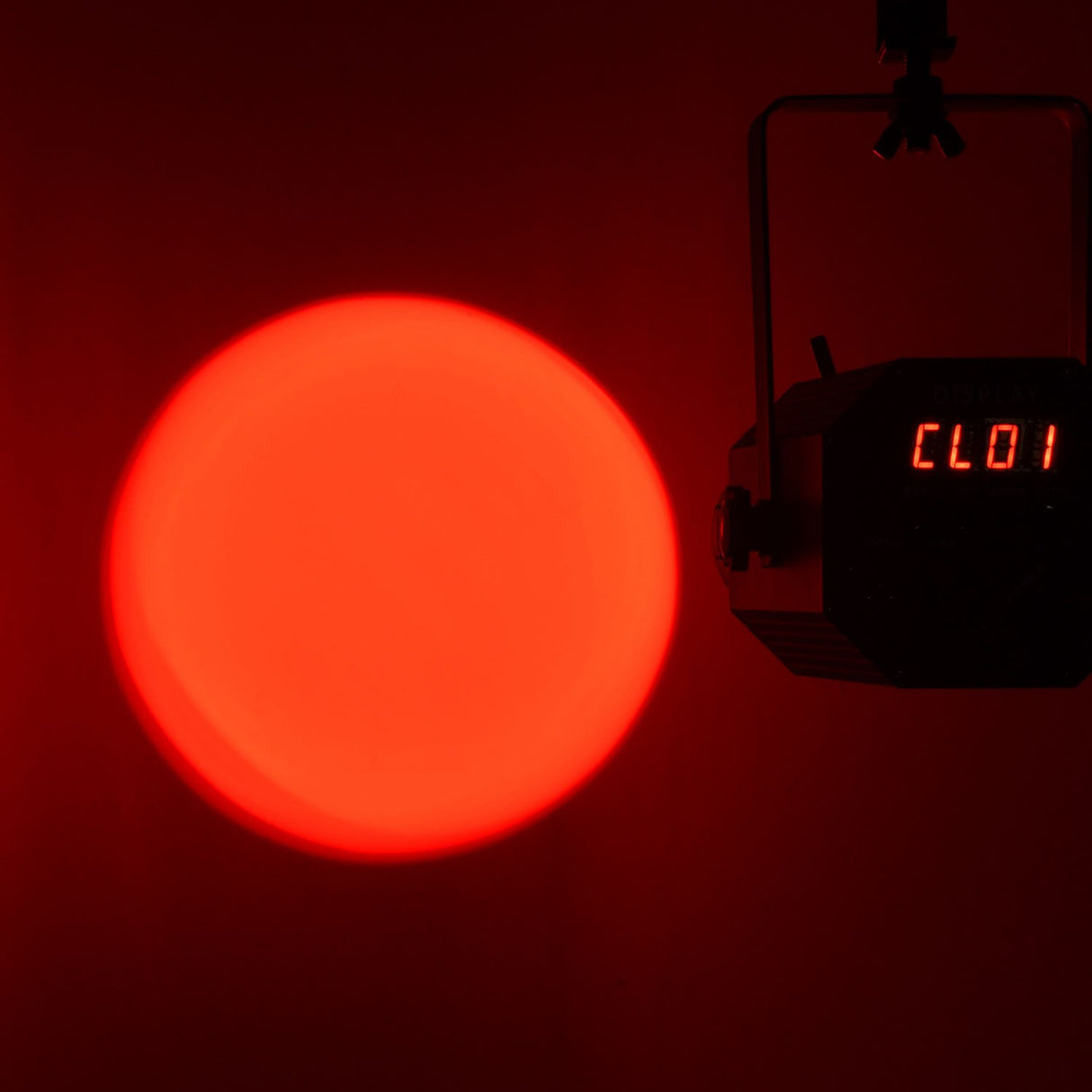

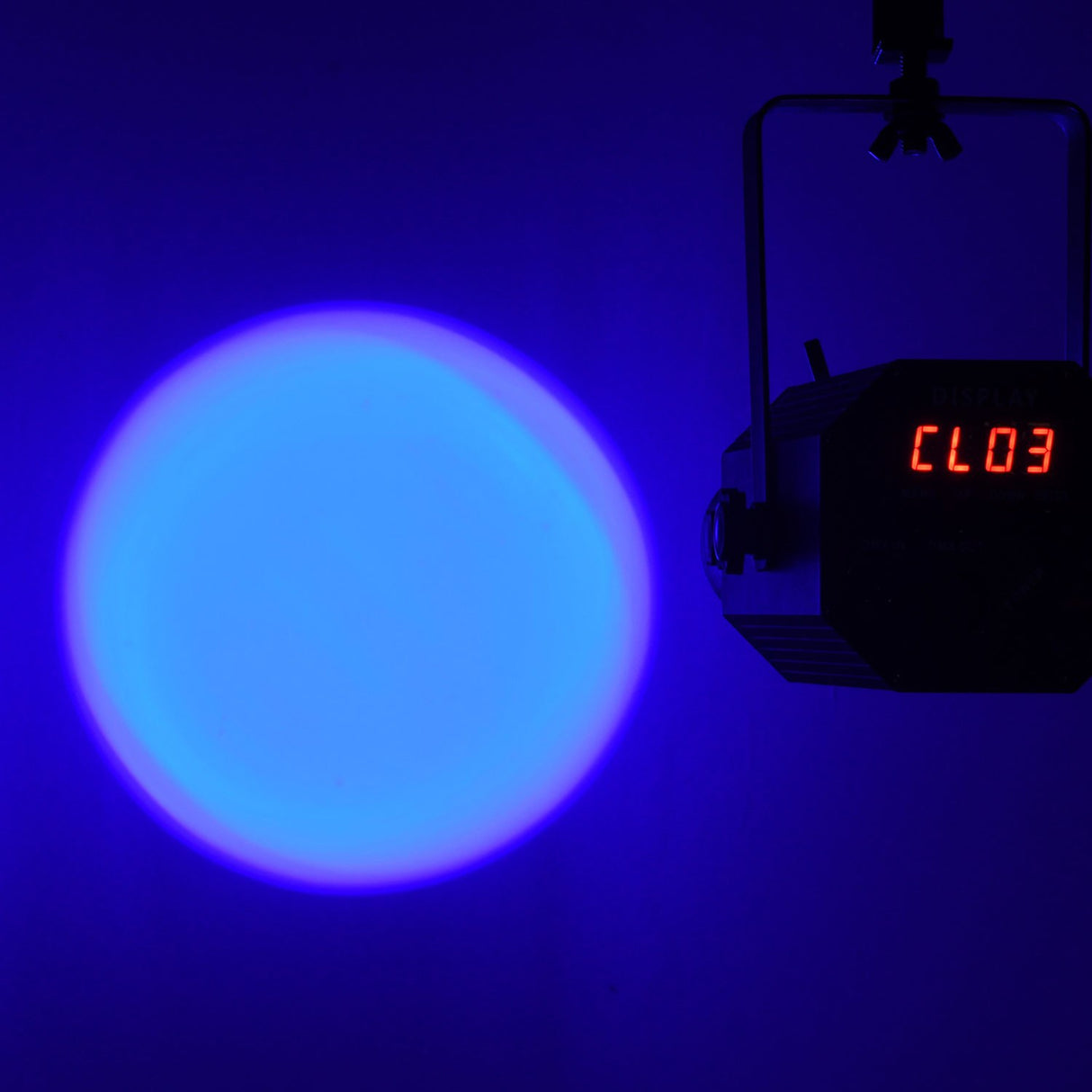

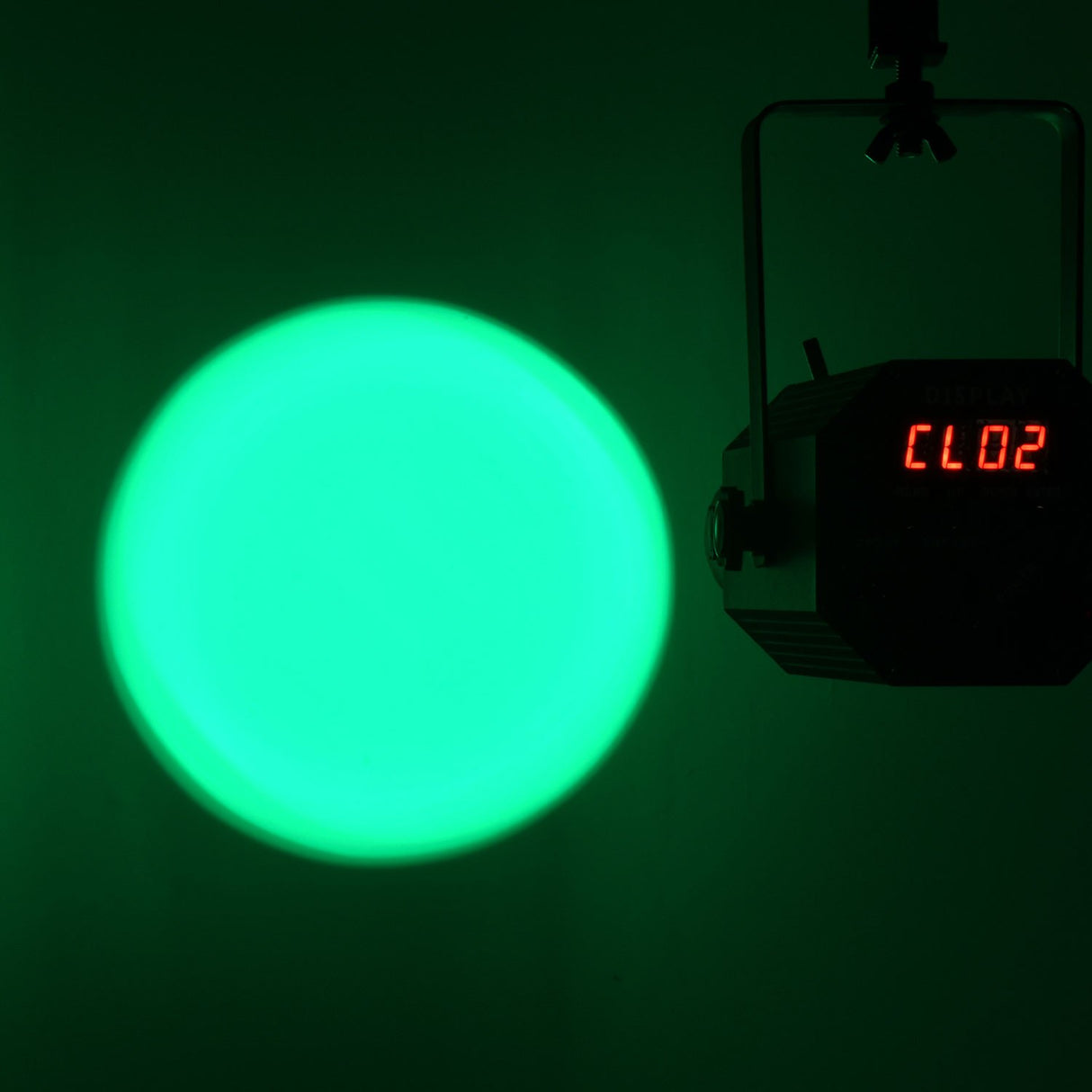

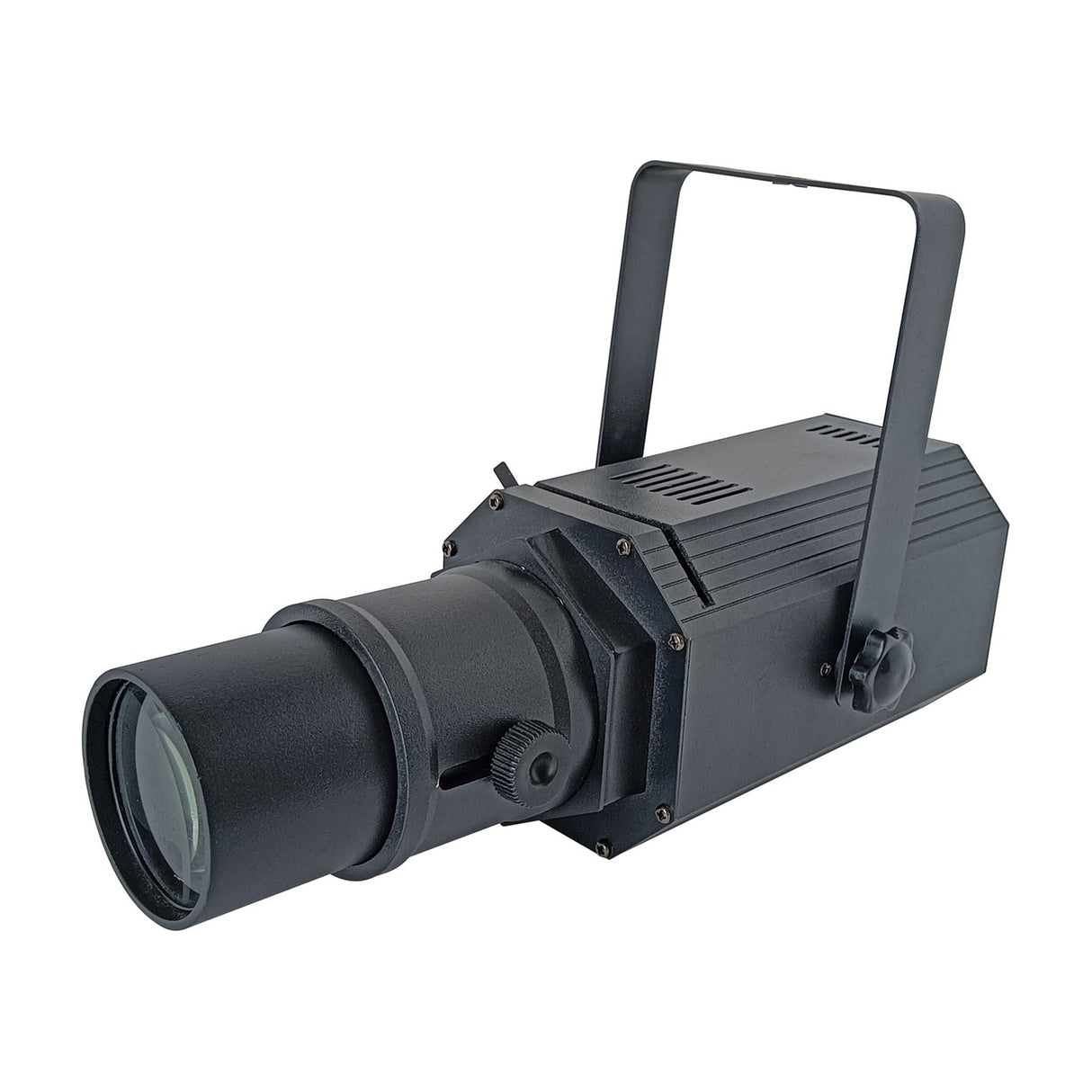

The Citronic PAR60-RGB is a compact LED profile spotlight built for performances and venues where a controlled spot is needed. It carries a single 60W RGB COB LED that runs bright enough to pick out mirror balls, performers, stage areas or display features with accurate, consistent light. You can switch between solid RGB colours or various colour change options using the control panel on the back of the unit, the supplied IR remote, or a DMX connection if you need it.
The beam angle sits at a tight 8 degrees and can be manually focused on the surface you want up to 8m away. A built-in iris shutter lets you reduce the size of the image for a sharper, more contained spot, and the electronic dimmer adjusts output smoothly from 0 to 100%. Internal auto, sound-activated and static programs give you options when you are running the fixture on its own, while master/slave keeps multiple units in step. For fixed installs and shows, it is 3 or 7 channel DMX-512 compatible.

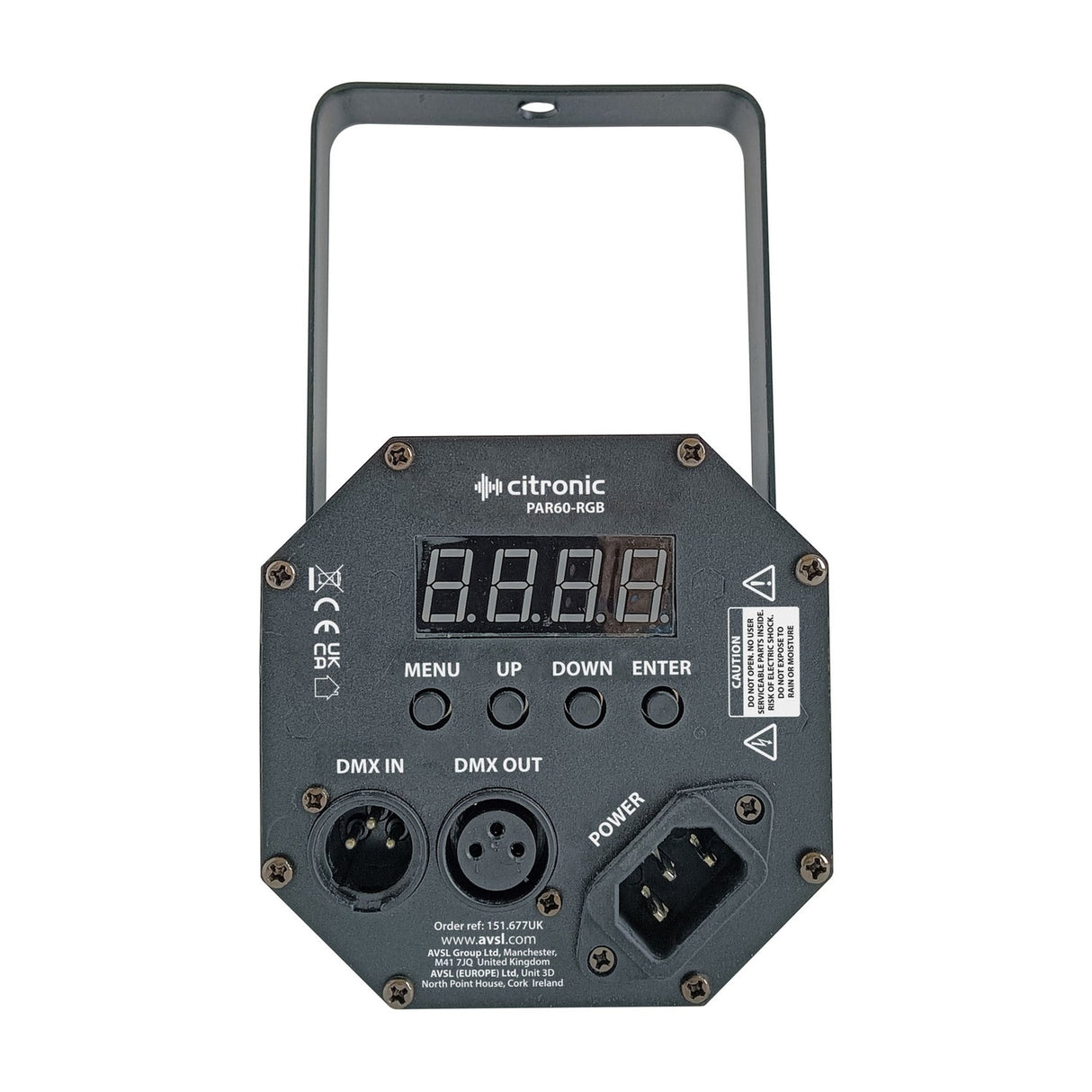

Connections are straightforward: IEC power in, plus DMX in and out on 3-pin XLR (US users may know these as 3-pin XLR too). The supplied remote runs on a CR2025 battery, which is included. The unit measures 340 x 170 x 120mm and weighs 2.45kg, so it stays easy to rig and position. It runs on 100-240Vac at 50/60Hz with a 60W power draw, making it a sensible pick for small stages, clubs and display lighting where you want repeatable results without a large power budget.
Specification
| Power |
100-240Vac, 50/60Hz |
| Power consumption |
60W |
| LED : spot |
1pc 60W RGB COB LED |
| Effective distance |
Up to 8m |
| Beam angle |
8° |
| Modes |
Auto, Sound, DMX, Master/Slave |
| Connections |
Power in (IEC), DMX in/out (3pin XLR) |
| DMX channels |
3 or 7CH |
| Remote : battery |
CR2025 (supplied) |
| Dimensions |
340mm x 170mm x 120mm |
| Weight |
2.45KG |
| Lux |
@2m - R: 620Lux, G: 284Lux, B: 284Lux |
Downloads
Product Manual
Frequently Asked
How is the PAR60-RGB controlled?
You can control it three ways: the control panel on the back of the unit, the supplied IR remote, or via DMX. It also has internal auto, sound-activated and static programs, plus master/slave mode.
How far will the spot reach?
The beam can be manually focused on a surface up to 8m away, with a tight 8 degree beam angle for a controlled, contained spot.
Does it support DMX?
Yes. It is DMX-512 compatible in 3 or 7 channel modes, with DMX in and out on 3-pin XLR connectors.
Can I adjust the beam size and brightness?
Yes. A built-in iris shutter reduces the size of the image, while an electronic dimmer adjusts output from 0 to 100%.
Is a remote included?
Yes. An IR remote is supplied, along with the CR2025 battery it needs to run.
What is it best suited to?
It suits mirror balls, performers, stage areas and display features where you need accurate, consistent illumination in a compact unit.
