Citronic Matrix Bar Pro RGB Matrix Light and Stand

£22999
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

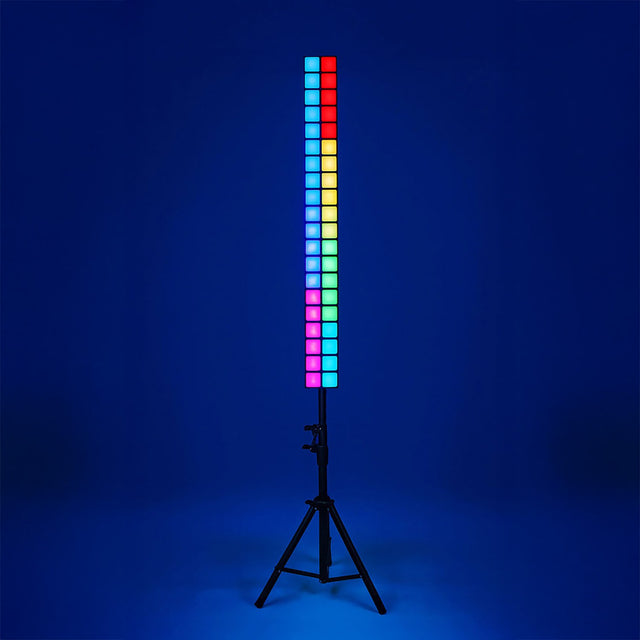

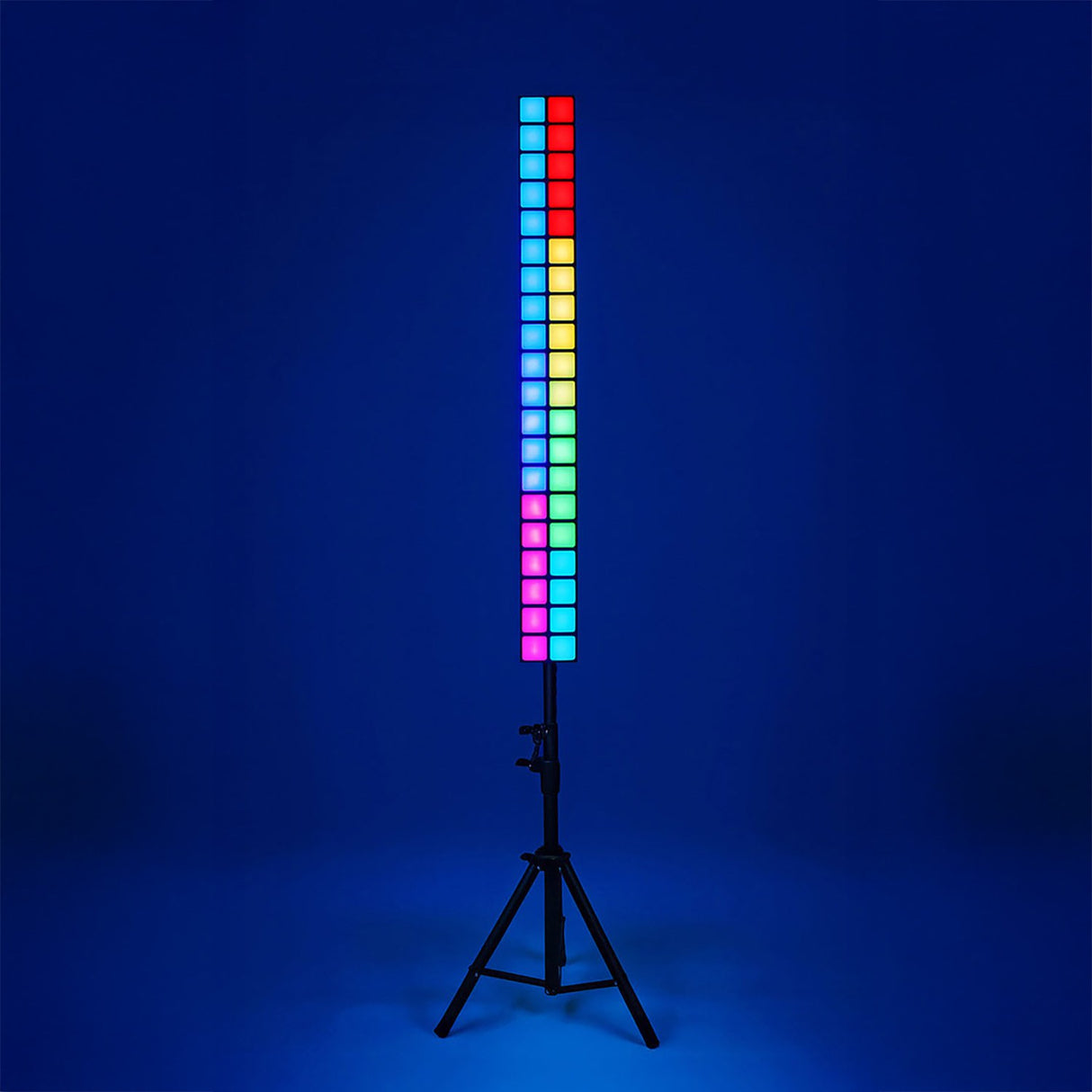

The Citronic Matrix Bar Pro is a 20 x 2 matrix light that packs in 200 high output SMD5050 3-in-1 RGB LEDs. These produce a wide range of colourful moving effects and washes, giving you plenty to work with whether you're lighting a small stage, a mobile disco or a fixed venue. Colour mixing is fully RGB, dimming runs linear from 0 to 100%, and the strobe covers 0 to 25 flashes per second.

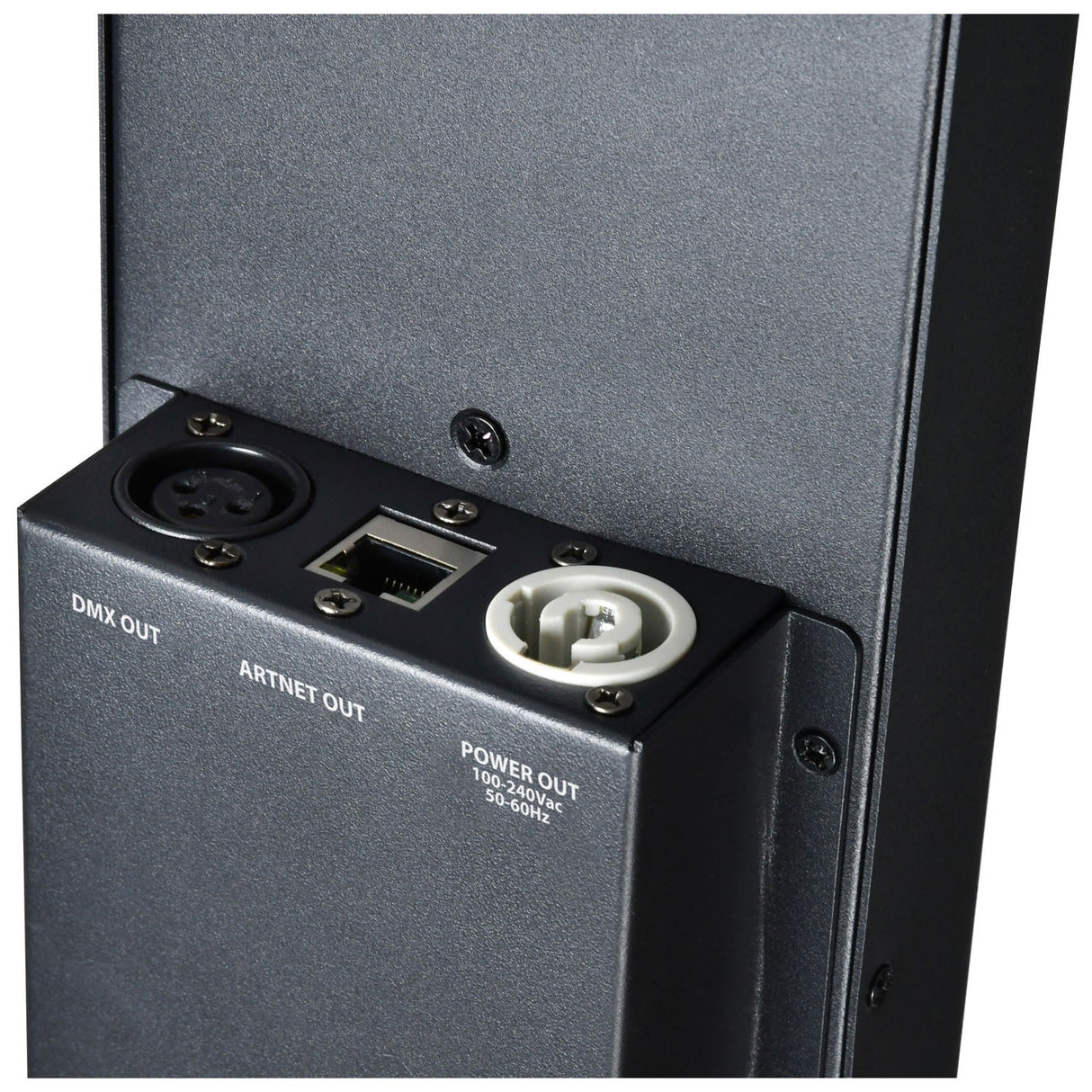

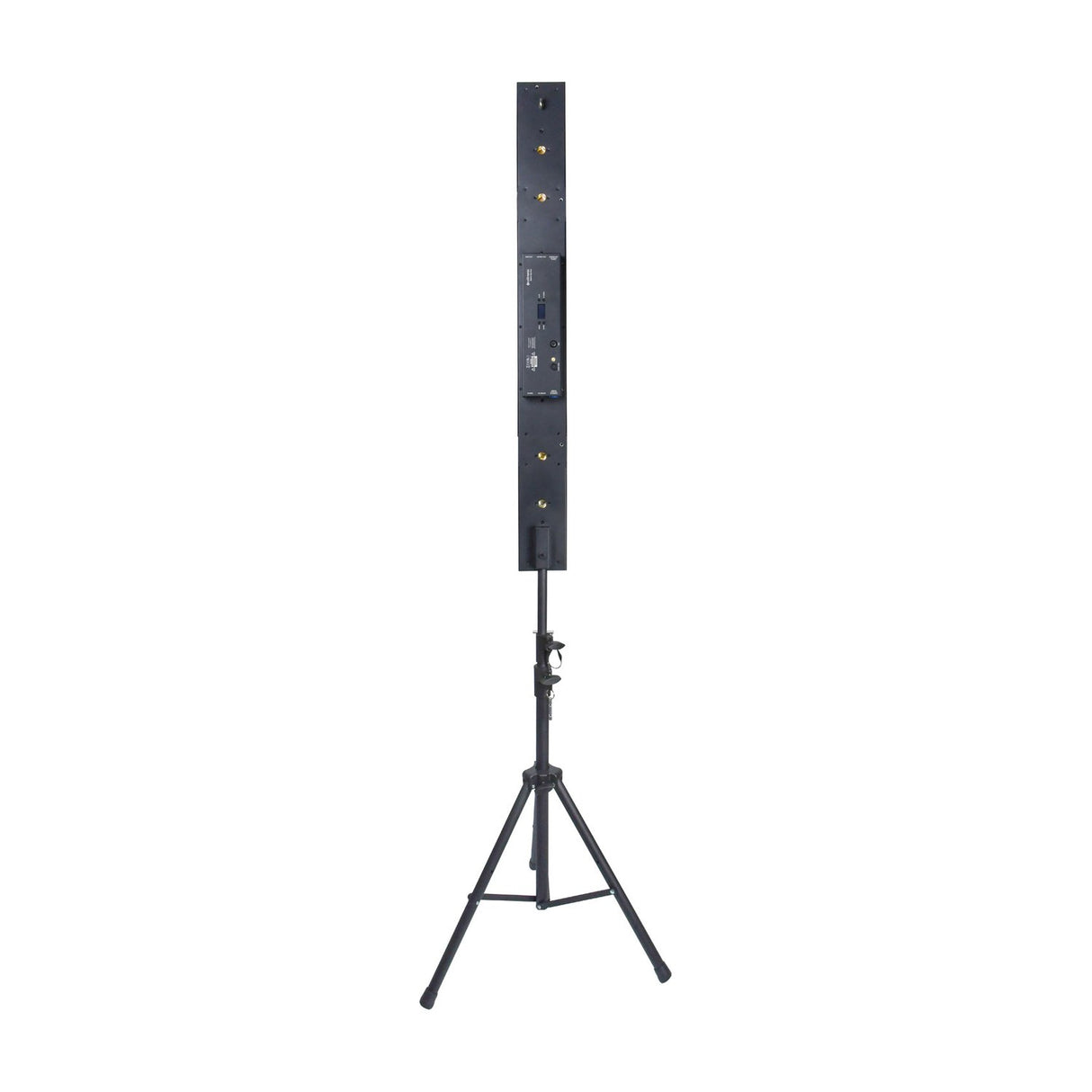

You can run the bar from the digital control panel on the back using auto, sound activated or static programs, each with speed, strobe and sensitivity settings to suit the moment. For remote control it takes DMX in 3, 5, 17, 80 or 120 channel modes, plus Art-Net for pixel map setups and master/slave linking. DMX connects via 3-pin XLR (in/out) or RJ45, and the twist and lock power connections in and out let you daisy chain multiple units. Integrated connectors on the top and bottom surfaces also let you join bars horizontally to build a larger effect. Intelligent fan control and temperature protection keep it cool through longer sets.

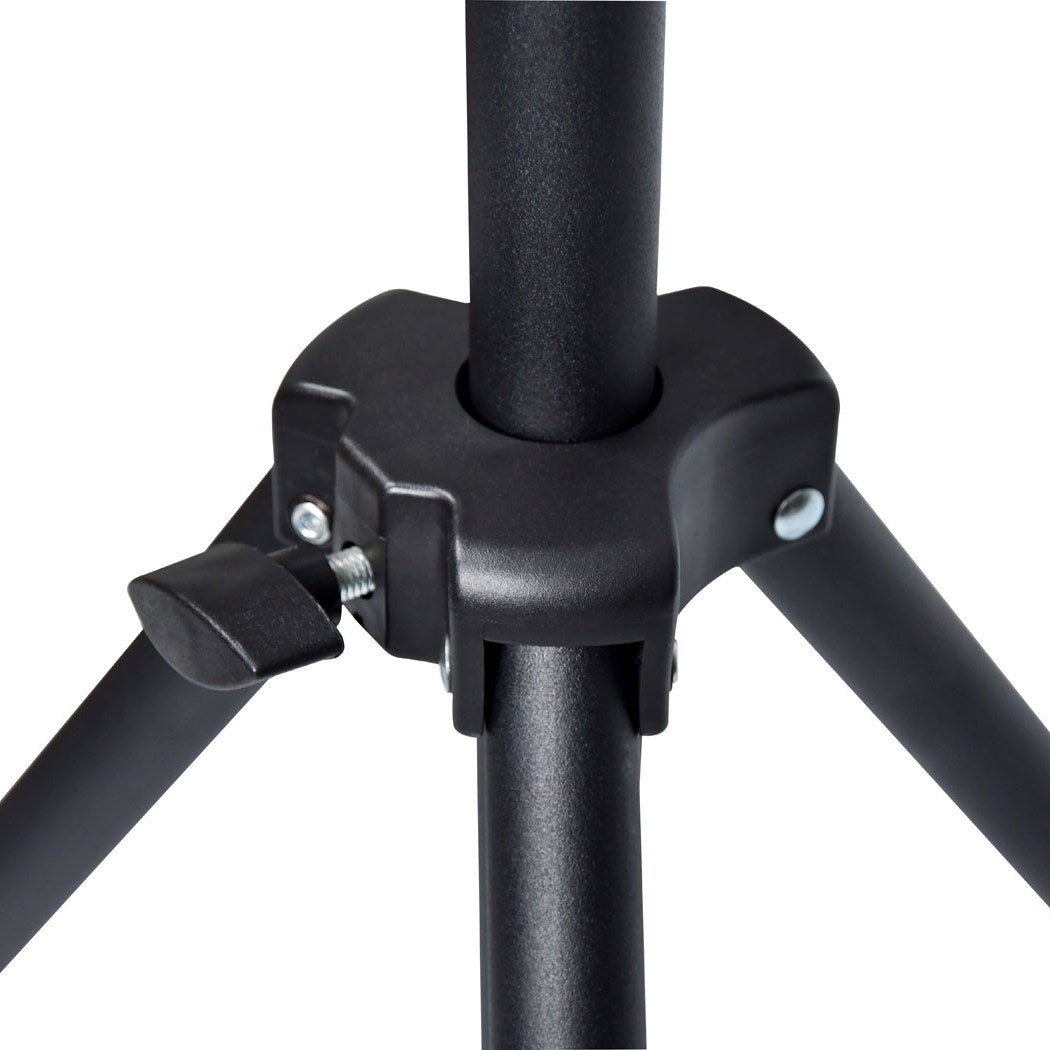

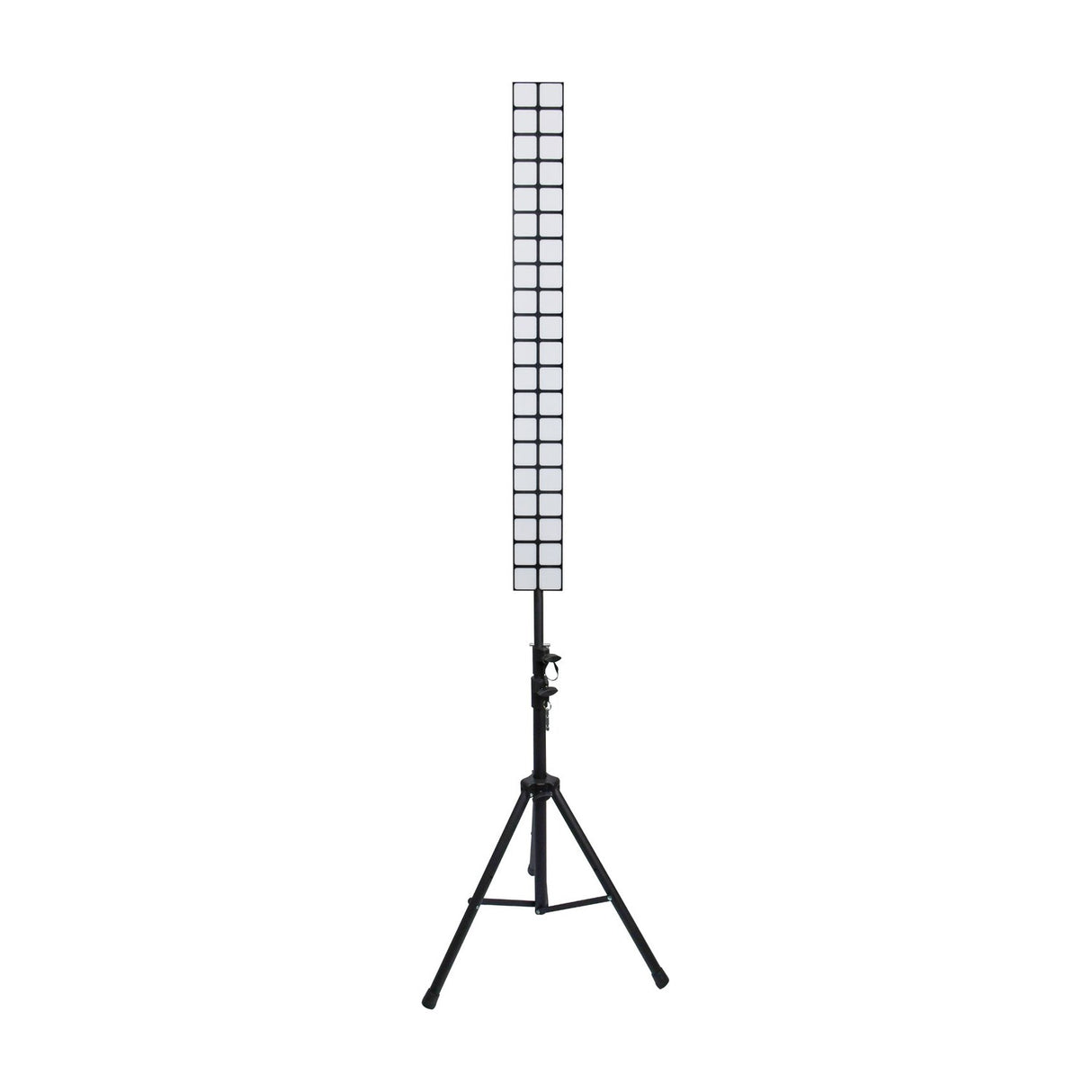

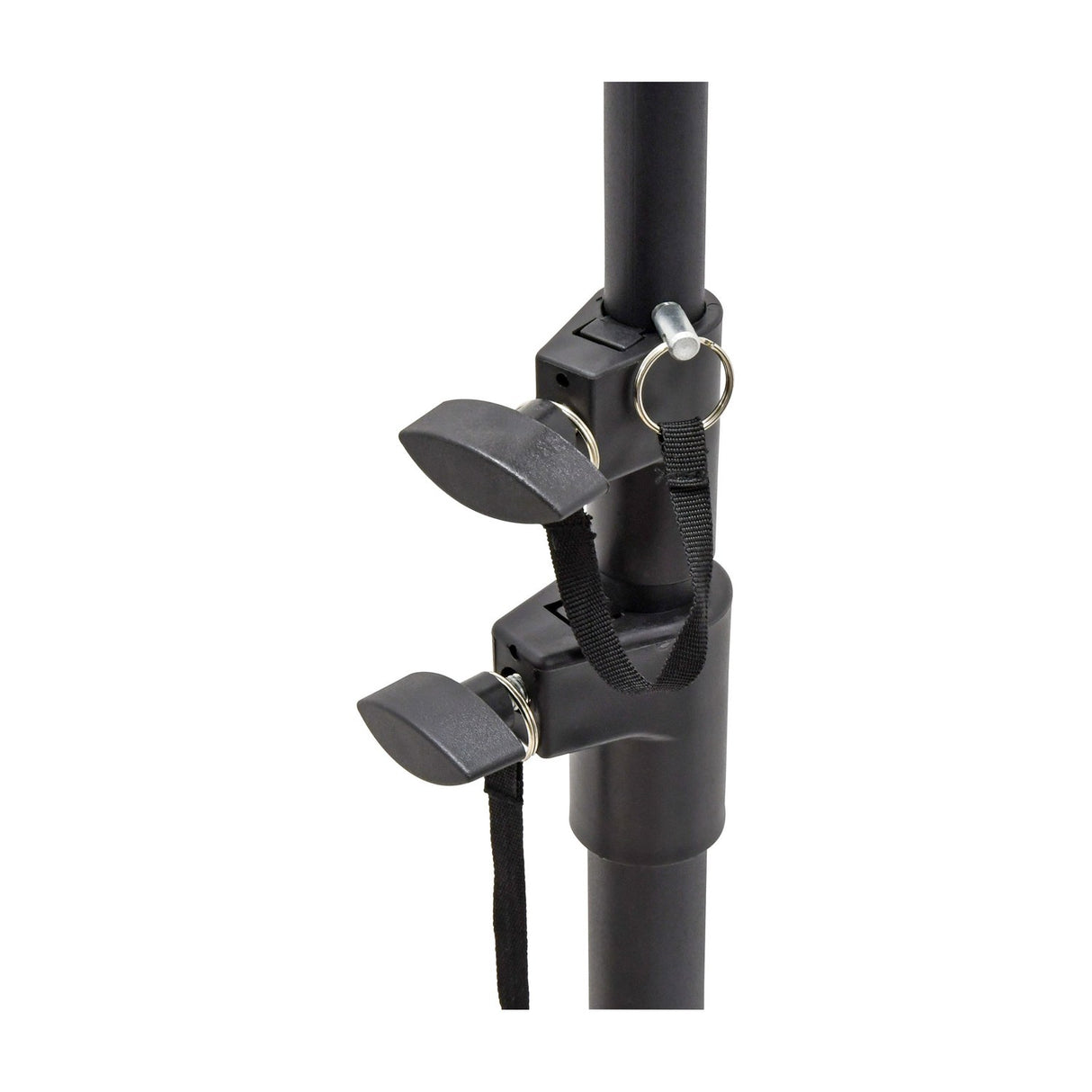

Mounting is straightforward. The included tripod stand takes the bar vertically, adjusting from a minimum of 2.04m to a maximum of 2.85m, or you can fix it to trussing in any direction using the supplied quick release clamps (also called quick-lock clamps). The main unit measures 75mm x 110mm x 1100mm and weighs 3.9kg, so it stays portable for gigging. Power runs on 110-240Vac at 50/60Hz with a modest 52W consumption, meaning you can run several from a single circuit without trouble.

Specification
Power supply 110-240Vac, 50/60Hz
Power consumption 52W
LED : type 200Pcs SMD 5050 3-in-1 RGB LEDs 0.2w each
Effects RGB colour mixing, Linear dimming 0-100%, Strobe 0-25 times per second
Modes Auto, Sound, Static, DMX, Art-Net, Master/Slave
DMX channels 3, 5, 17, 80 or 120CH
DMX connection 3 Pin DMX (In/Out) or RJ45 (In/Out)
Power connection Power in/out (twist and lock)
Dimensions : main unit 75mm x 110mm x 1100mm
Weight 3.90KG
Dimensions (assembled) With Stand Min 2.04m Ma x 2.85m
Downloads

Product Manual

Frequently Asked

How many LEDs does the Matrix Bar Pro have?

It uses 200 SMD5050 3-in-1 RGB LEDs, each rated at 0.2W, arranged in a 20 x 2 matrix for colour mixing and moving effects.

What control modes are available?

You can run it standalone in auto, sound activated or static modes, or remotely via DMX (3, 5, 17, 80 or 120 channels), Art-Net, or master/slave linking.

Can I link several bars together?

Yes. Integrated connectors on the top and bottom let you join bars horizontally, and the twist and lock power in/out sockets let you daisy chain units.

Does it come with a stand?

Yes, a tripod stand is included. It adjusts from 2.04m to 2.85m. You can also mount the bar to trussing using the supplied quick release clamps.

How do I connect DMX?

The bar has 3-pin DMX in and out, plus RJ45 in and out for network based control such as Art-Net.

What are the power requirements?

It runs on 110-240Vac at 50/60Hz and consumes 52W, so it's light on power for a bar of this size.

Shipping & Returns

Delivery UK delivery is £14.99, and delivery is free on all orders of £99 or more, in the UK and internationally.

Returns If you change your mind, you have 14 days from delivery to tell us, and a further 14 days to send the goods back. Return postage for a change-of-mind return is paid by you. Change-of-mind returns are subject to an inspection and handling deduction. See our full returns policy.

To arrange a return, call us on 020 8149 5199 or use our contact page.
