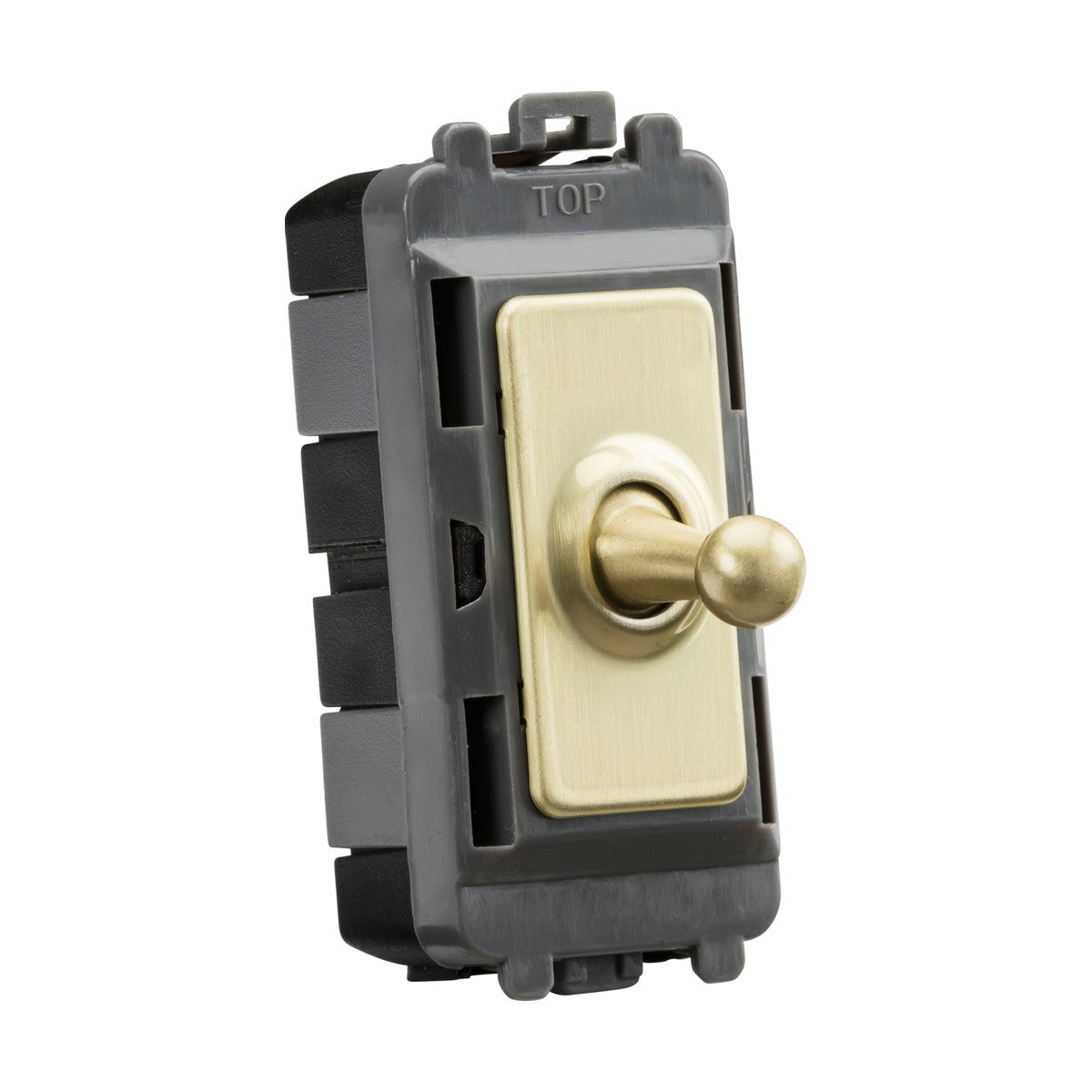

20AX 1 Gang 2-Way SP Grid Toggle Switch - Brushed Brass

The Knightsbridge 20AX 1-gang 2-way SP grid toggle switch is a modular insert designed to clip into compatible grid mounting frames (sold separately). The single-pole toggle controls lighting circuits rated up to 20AX (4,600W at 230V), with 2-way switching allowing the same light to be controlled from two different switch positions in a room.

Grid switches are used in residential and commercial installations where multiple switches, sockets or dimmers need to occupy the same wall plate in a single, consistent format. This toggle module measures 24.8mm wide and clips into standard Knightsbridge grid frames alongside other modules in the same range, allowing electricians to build custom switch configurations (2-gang, 3-gang, 4-gang) from individual components rather than buying pre-configured plates.

The brushed brass faceplate is made from premium-grade steel with a low-sheen brushed finish that reduces fingerprints and glare. The toggle dolly sits on a steel shaft with a defined on/off travel, giving tactile feedback when operated. The module requires a minimum 35mm back box depth behind the grid frame and carries an IP20 rating for indoor dry-location use. Knightsbridge backs this grid module with a 25-year warranty.

Product Specification Sheet

What is a grid switch and how does it work?

Grid switches are modular electrical components that clip into a separate mounting frame to create custom switch configurations. You buy individual switch modules (like this toggle), dimmer modules, socket modules, and blanking plates, then clip them into a grid frame to build a 2-gang, 3-gang, 4-gang or larger wall plate tailored to the room's wiring needs. The frame is sold separately.

What back box depth is required?

A minimum 35mm back box depth is needed behind the grid frame. The module itself projects 20.5mm from the frame once installed, so total wall-to-faceplate projection depends on the frame design used.

What does 2-way SP mean?

2-way means the switch can be wired to control the same light from two different positions (e.g. top and bottom of stairs). SP means single-pole, so the switch breaks only the live conductor rather than both live and neutral as a DP (double-pole) switch would.

What other finishes are available in this grid range?

Knightsbridge produces grid modules in polished chrome, brushed chrome, polished brass, antique brass, matt black and white. Use the search function or filters to find other variants in stock at Niori.
