Regis 610x600 72W 3WS T8 Louvre Troffer - White

The Regis is a recessed louvre troffer built for suspended-ceiling grids in offices and commercial interiors. It drops into a standard 600 grid module and takes four T8 fluorescent tubes on G13 caps, giving a total of 72W (4 x 18W) across the fitting. The mirrored louvre diffuser sits in front of the tubes to direct light downward and cut direct glare at screen-working angles. In US specification terms this is the recessed troffer format familiar from drop-ceiling office layouts, here in a square 610 x 595 mm body.

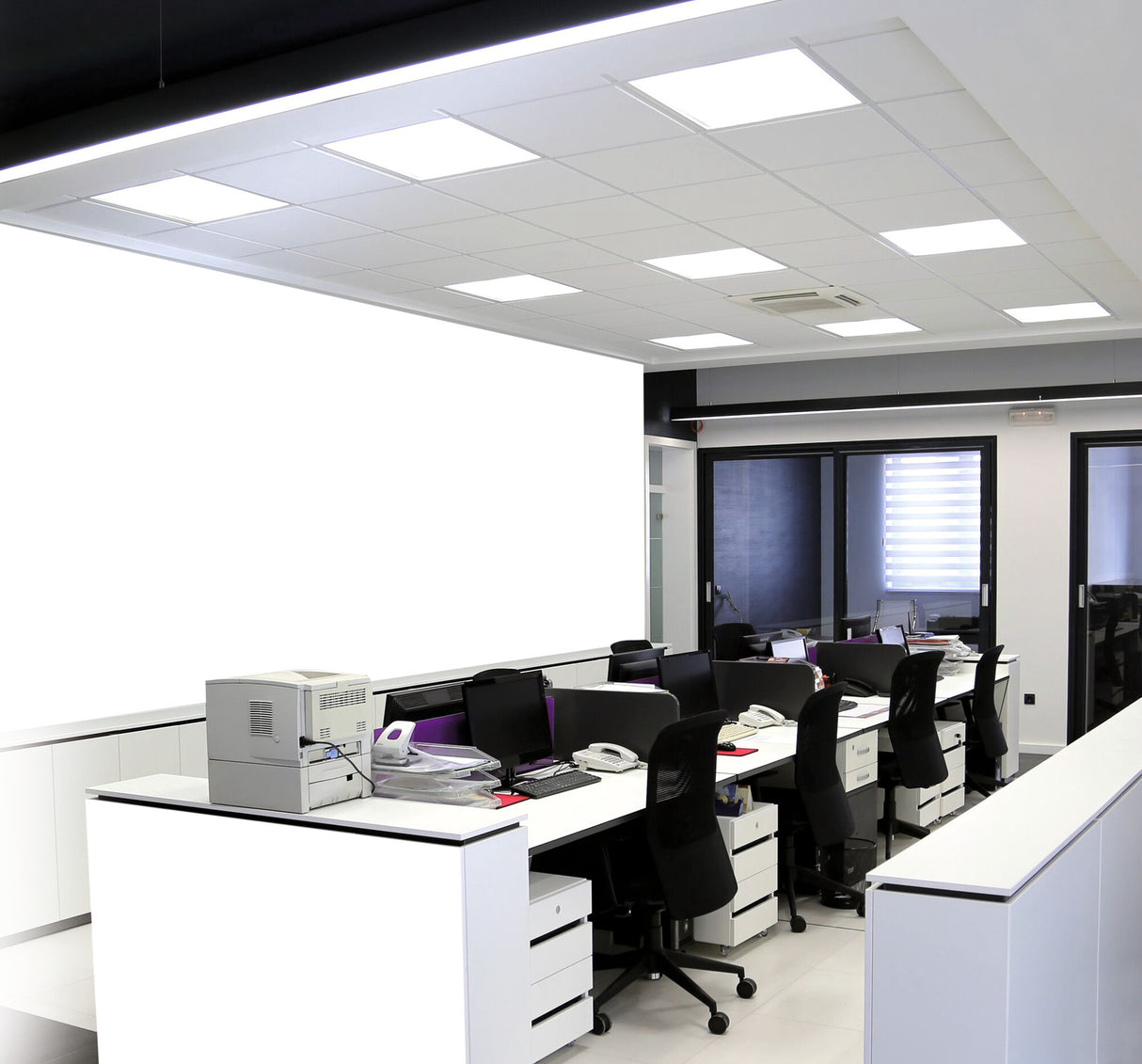

Its natural home is open-plan offices, meeting rooms, reception areas and similar workspaces lit through a modular suspended ceiling. The louvre arrangement keeps brightness even across the working plane while reducing harshness overhead, so it suits desk-based rooms where screen glare matters. Coverage depends on how many units the grid carries and their spacing, so plan the layout to the room rather than to a single fitting. The square 610 x 595 mm footprint matches the common ceiling tile module, which makes it straightforward to swap into or alongside an existing grid run.

The body is steel in a white finish, sized at 610 x 595 x 78 mm and weighing 3.02 kg. It runs on 220-240V AC mains and is rated IP40, so it is splash-resistant and suited to sheltered, dry interior locations rather than fully exposed outdoor positions. Mounting is recessed into the ceiling grid, with the four T8 tubes seated on G13 caps and replaceable as a service item. The louvre and reflector are the visible surfaces and respond to routine wiping during planned maintenance. Other fittings in the Regis range share this recessed grid format in matching configurations.

Product Specification Sheet

Range Datasheet

Does the Regis fit a standard suspended-ceiling grid?

Yes. The square 610 x 595 mm body is sized to drop into a common 600 ceiling tile module and recesses flush into the grid. It is a recessed fitting, not a surface or wall-mounted one, so plan it into the grid layout from the outset.

What is the total power, and does it use tubes or LED?

It carries four T8 fluorescent tubes on G13 caps, giving a total of 72W (4 x 18W). The tubes are replaceable, so a single failed tube can be changed without replacing the whole fitting. Match any replacements to the same T8 G13 specification.

What light levels and rooms does it suit?

It is designed for offices, meeting rooms and reception areas lit through a modular suspended ceiling. The louvre diffuser keeps brightness even across desks while reducing glare at screen-working angles. Spacing across the grid determines overall coverage, so plan the number of units to the room size.

How do I clean and maintain the louvre?

Wipe the louvre and reflector with a dry or barely damp soft cloth during planned maintenance, with the power isolated and the tubes cool. Avoid harsh solvents on the white steel body. Keeping the louvre clear of dust helps preserve light output and the even spread across the working plane.
