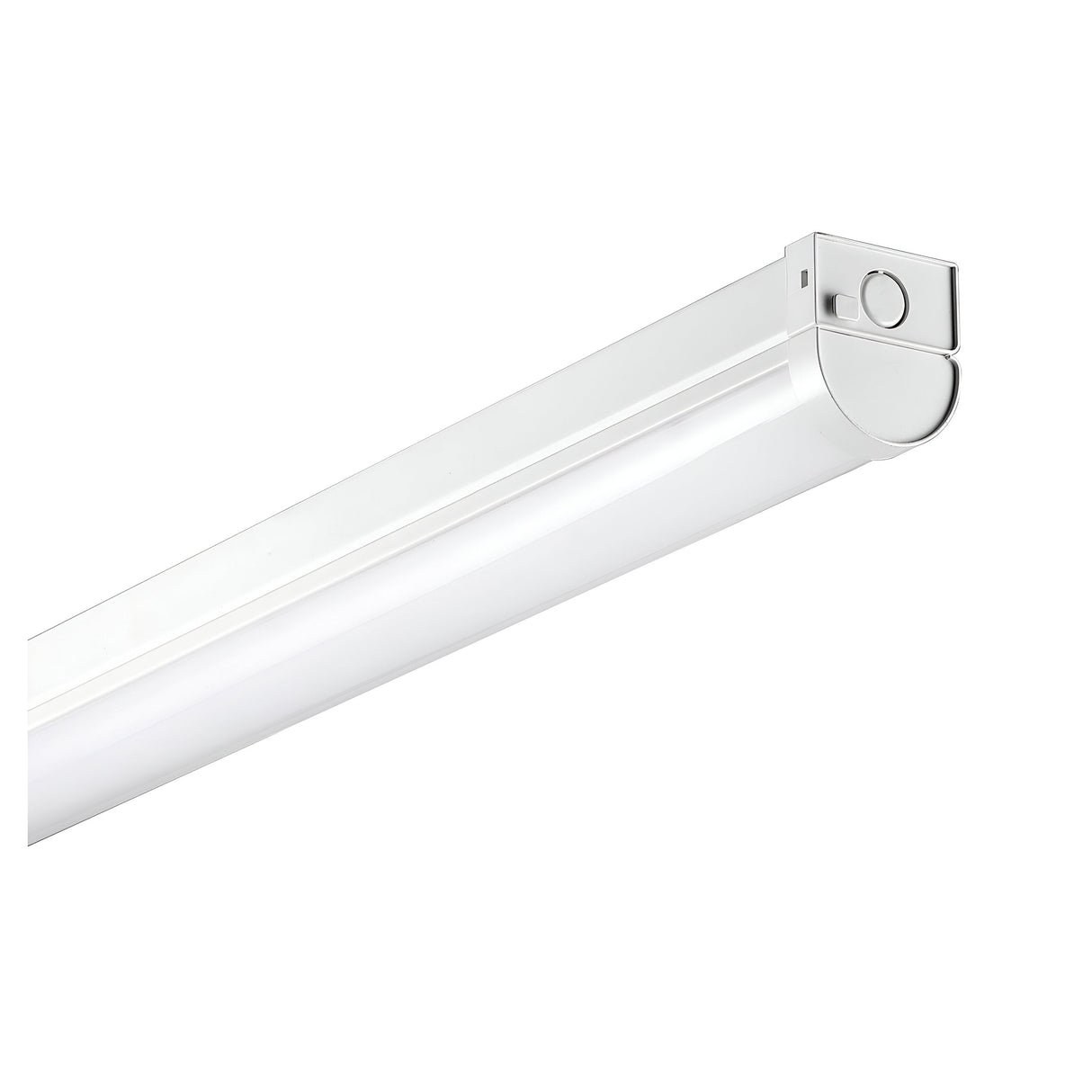

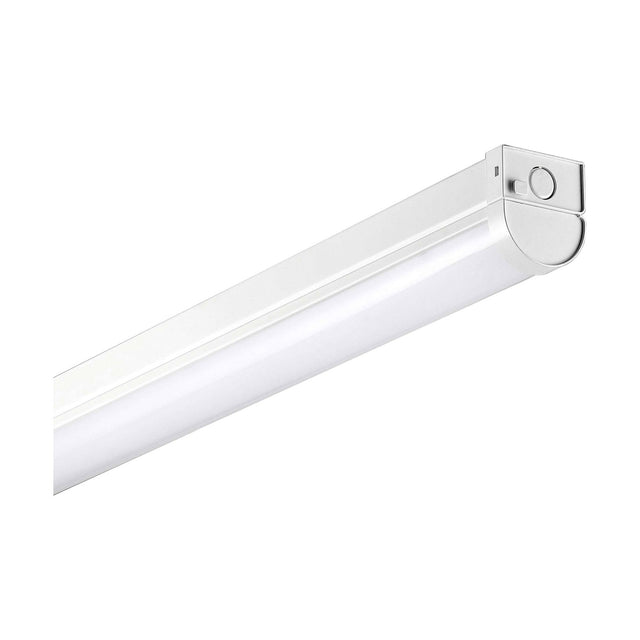

40W IP20 6ft Emergency Single LED Batten - Cool White 4000K

This 6ft LED batten runs on 40W and the pack rates it at 4,800 lumens, a figure that works out at 120 lumens per watt. The colour temperature is 4000K, a cool white with a clean blue edge that keeps a working space looking bright rather than cosy, and the pack quotes a colour rendering index over 80. The LED board is integral, so there is no tube to buy and no starter to fail. An opal polycarbonate diffuser spreads the output evenly along the length, and the module behind it is carried on an aluminium heat sink inside a white steel housing.

At 1734mm it fits the runs a fluorescent batten has always covered: garages, workshops, stores, plant rooms, utility areas and service corridors. It is IP20, which is no protection against water, so keep it to dry indoor positions. The 120 degree spread pushes light sideways as well as down, which is why battens suit long parallel runs over a bench or end to end down a passage. There is also an emergency module built in, and the pack states a three hour duration for it. Emergency fittings like this are normally fed from a permanent live so the internal battery stays charged, so check the wiring diagram that comes with it before you connect anything.

It is not dimmable, so give it a plain switch rather than a dimmer module. The supply is 220-240V at 50-60Hz, and the pack lists the fitting as Class I, which means it needs an earth. Push fit terminals take the mains cores without a screwdriver and the screwless hinged bracket lets the body swing down for testing or maintenance. The pack gives a working range of minus 20 to plus 45 degrees C. Sold as a single fitting, minimum order one. Our wider batten range also covers 4ft and 5ft lengths, IP65 non-corrosive versions and 6500K daylight options.

What does the emergency module do if the power goes off?

The internal battery takes over and keeps the fitting lit, and the pack states a three hour duration. The pack does not say whether it runs maintained or non maintained, so read the instructions before you design it into a scheme.

Do I need to buy a tube or a starter for it?

No. The LED board and driver are built into the body, so the fitting arrives complete and there is no tube, starter or ballast to source separately.

Can I run it from a dimmer switch?

No. The specification gives it as not dimmable, so it needs a plain on and off switch. Feeding a non dimmable driver from a dimmer module can cause flicker, buzzing or early failure.

What wattage of fluorescent tube does 40W of LED replace?

The manufacturer does not state an equivalent wattage anywhere on the pack or in the specification, so we do not claim one. Compare on the light output instead: the pack gives 4,800 lumens.

How does 4000K cool white look compared with warm white?

It is a neutral to cool light with no yellow cast, so labels, wiring colours and paint shades read accurately. The pack also lists the fitting as flicker free, which matters for long working sessions.

How big is it and how does it fix up?

The pack gives approximately 1734mm long by 61mm wide by 71mm deep. It uses a screwless hinged bracket and quick fit push terminals, so the connections can be reached without taking the whole fitting down.
