Description

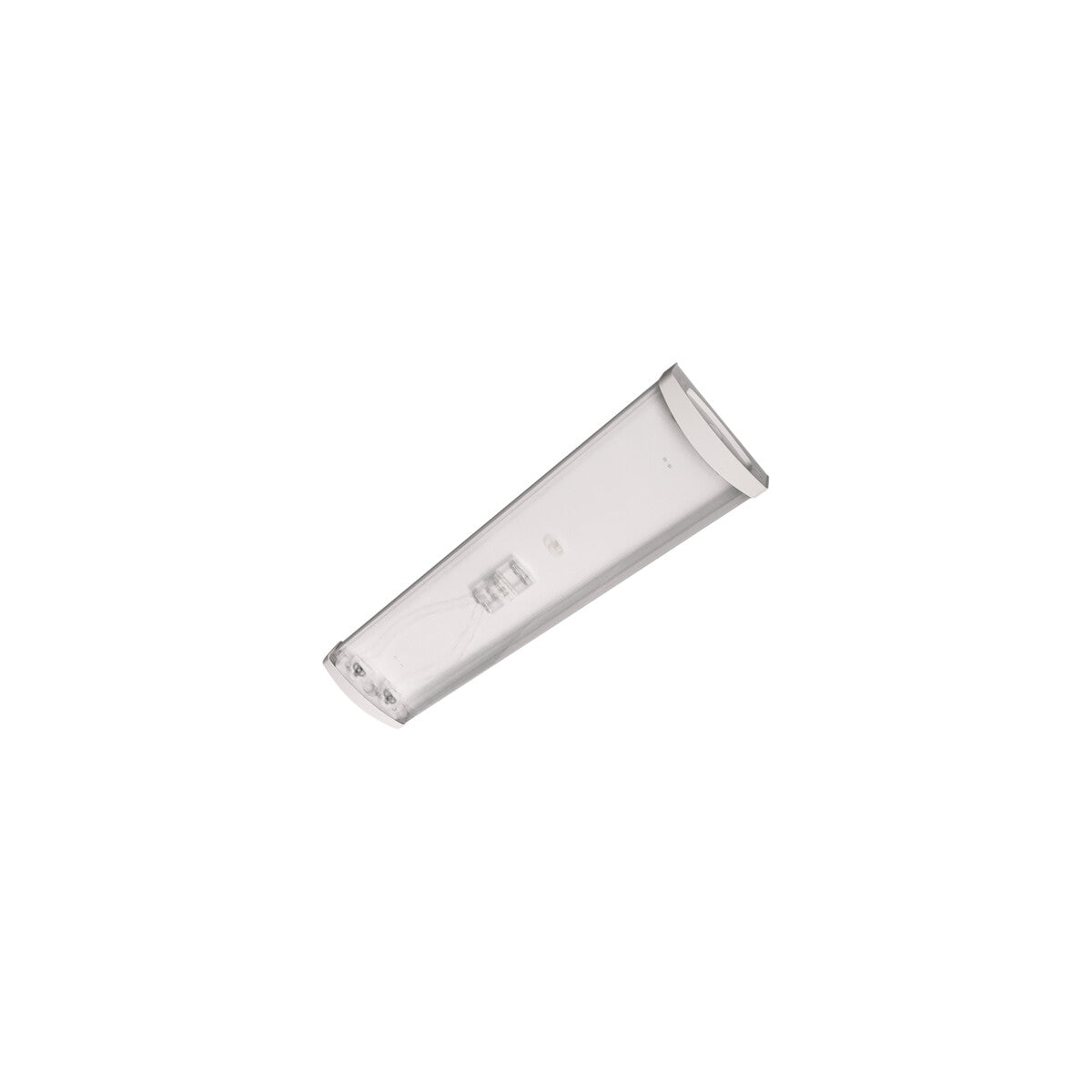

The MEBA is a twin-lamp LED batten light built to take two T8 LED tubes of up to 9W each on a G13 cap, running directly from a 220-240V AC supply. Its rectangular steel body measures 642 x 152 x 57 mm and mounts to the ceiling, throwing broad, even illumination across the area below from its two parallel sources. Specifiers in the US market will recognise this format as an LED shop light or wraparound fitting, the workhorse linear unit that lines garages and storage areas, here in a compact twin-tube length.
Rated IP54, the MEBA is splash-resistant and suited to sheltered settings where a little dust or moisture is in play. That makes it a sensible choice for garages, workshops, utility rooms and store cupboards, as well as covered outdoor positions such as a porch or carport overhang. It is not built for fully exposed positions or direct water jets, so keep it clear of open weather and hose-down areas. At twin 9W it gives functional task and circulation light over a working bay or aisle rather than soft ambient room lighting, and several units can be spaced along a ceiling run to cover a longer space evenly.
Construction is steel finished in white, a robust shell that wears well in busy practical rooms. The fitting is ceiling mounted and takes two G13 T8 LED tubes, with the splash-resistant IP54 seal guarding the gear against the dust and damp typical of these locations. The unit weighs 816 g, keeping the fixing load modest for a steel batten of this length. The MEBA sits within our wider range of utility battens and weatherproof linear fittings, so matching lengths can be specified across a single space.
Specification
| Power |
2 x max 9W |
| Voltage |
220-240 AC |
| IP rating |
IP54 |
| Mounting |
Ceiling Mounted |
| Cap / base |
G13 |
| Light source |
T8 LED |
| Shape |
Rectangular |
| Dimensions |
642 × 152 × 57 mm |
| Weight |
816 g |
| Material |
Steel |
| Finish |
White |
Downloads
Frequently Asked
Where is this batten typically used?
The MEBA suits garages, workshops, utility rooms, store cupboards and covered outdoor spots such as a porch or carport. Its IP54 rating means it handles dust and the odd splash, making it a practical choice for working and storage areas. It is not intended for fully exposed positions in open weather.
What does the IP54 rating allow?
IP54 means the fitting is dust-protected and resistant to splashing water from any direction. That covers sheltered and damp settings, but not direct water jets or submersion. Keep it out of fully exposed outdoor locations and away from hose-down cleaning.
Can several units be linked along a ceiling?
The MEBA is a ceiling-mounted batten that can be spaced along a run to cover a longer space evenly. Position the units at regular intervals to keep light levels consistent across a workshop or storage bay. Wiring each fitting back to the supply gives a continuous lit run.
How do I clean it?
Switch off the supply and let the fitting cool before cleaning. Wipe the white steel housing with a soft, slightly damp cloth and dry it off, avoiding abrasive pads or solvents that could mark the finish. Regular dusting keeps light output bright in dusty utility settings.
