LYYT 12V Red LED Strip Light 5m - IP65 Rated 60 LEDs/m

£1899
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

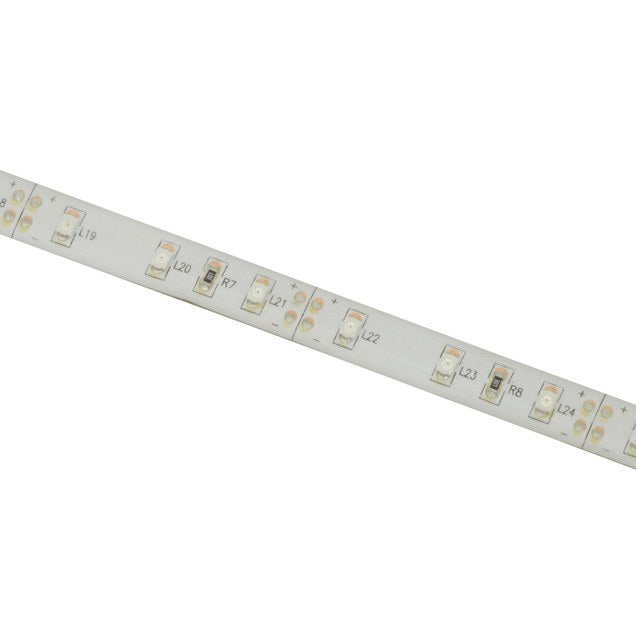

The LYYT 12V Red LED Strip is a 5m reel of low-voltage red LED tape with 60 SMD3528 LEDs per metre, each spaced 16mm apart and coated in an IP65-rated epoxy layer. The strip runs on 12Vdc at 4.8W per metre, drawing 400mA per metre of installed length, and can be cut at 5cm intervals to fit custom runs. An adhesive backing on the reverse allows the strip to be fixed directly to clean, dry surfaces without additional mounting hardware.

Designed for signage backlighting, stage accent lighting, retail displays, vehicle interiors and decorative home installations where red light is needed, the strip emits 60 lumens per metre at a 140-degree beam angle. The red LEDs produce saturated colour output rather than white light filtered through red plastic, giving more intensity and less wasted energy than colour-gelled alternatives. The IP65 coating protects against dust ingress and low-pressure water jets, making the strip suitable for damp locations, outdoor canopies under cover, and vehicle engine bays where moisture and vibration are present.

The 5m reel weighs 210g and measures 10.5mm wide by 2.55mm thick when laid flat. Each SMD3528 LED outputs 600 millicandelas, and the strip is rated for up to 50,000 hours of operation at typical ambient temperatures. The strip ships with connection accessories for wiring to a 12Vdc power supply (sold separately). Standard 12V LED drivers and automotive 12V systems are both compatible.

Specification
Voltage 12Vdc
Number of LEDs 60/m
Beam angle 140°
Cut intervals 5cm
Reel length 5m
LED : spacing 16mm
IP rating IP65
Current 400mA/m
Power consumption per metre 4.8W/m
Cross-section 10.5 x 2.55mm
Weight 210g
Colour Red
Luminous flux (Lumens per metre) 60lm/m
Light intensity per LED (millicandelas) 600mcd
LED : type SMD3528
Downloads

Product Manual

Frequently Asked

What power supply does the strip need?

The strip runs on 12Vdc and draws 400mA per metre installed. A 5m reel draws 2A total, so a 12V power supply rated for at least 24W (2A) is required. Power supplies are sold separately.

Can the strip be used outdoors?

The IP65 epoxy coating protects against dust and low-pressure water jets, making the strip suitable for damp outdoor locations under cover such as canopies, eaves and pergolas. It is not rated for full submersion or direct exposure to heavy rain.

How is the strip cut to length?

The strip can be cut at 5cm intervals along marked cut points on the tape. Cutting outside these marked points will damage the circuit and leave a non-functional segment.

Is the adhesive backing reusable?

No. The adhesive backing is single-use. Once the strip is peeled and applied to a surface, removing it will compromise the adhesive and require alternative fixing methods such as mounting clips or cable ties.

Shipping & Returns

Delivery UK delivery is £14.99, and delivery is free on all orders of £99 or more, in the UK and internationally.

Returns If you change your mind, you have 14 days from delivery to tell us, and a further 14 days to send the goods back. Return postage for a change-of-mind return is paid by you. Change-of-mind returns are subject to an inspection and handling deduction. See our full returns policy.

To arrange a return, call us on 020 8149 5199 or use our contact page.
