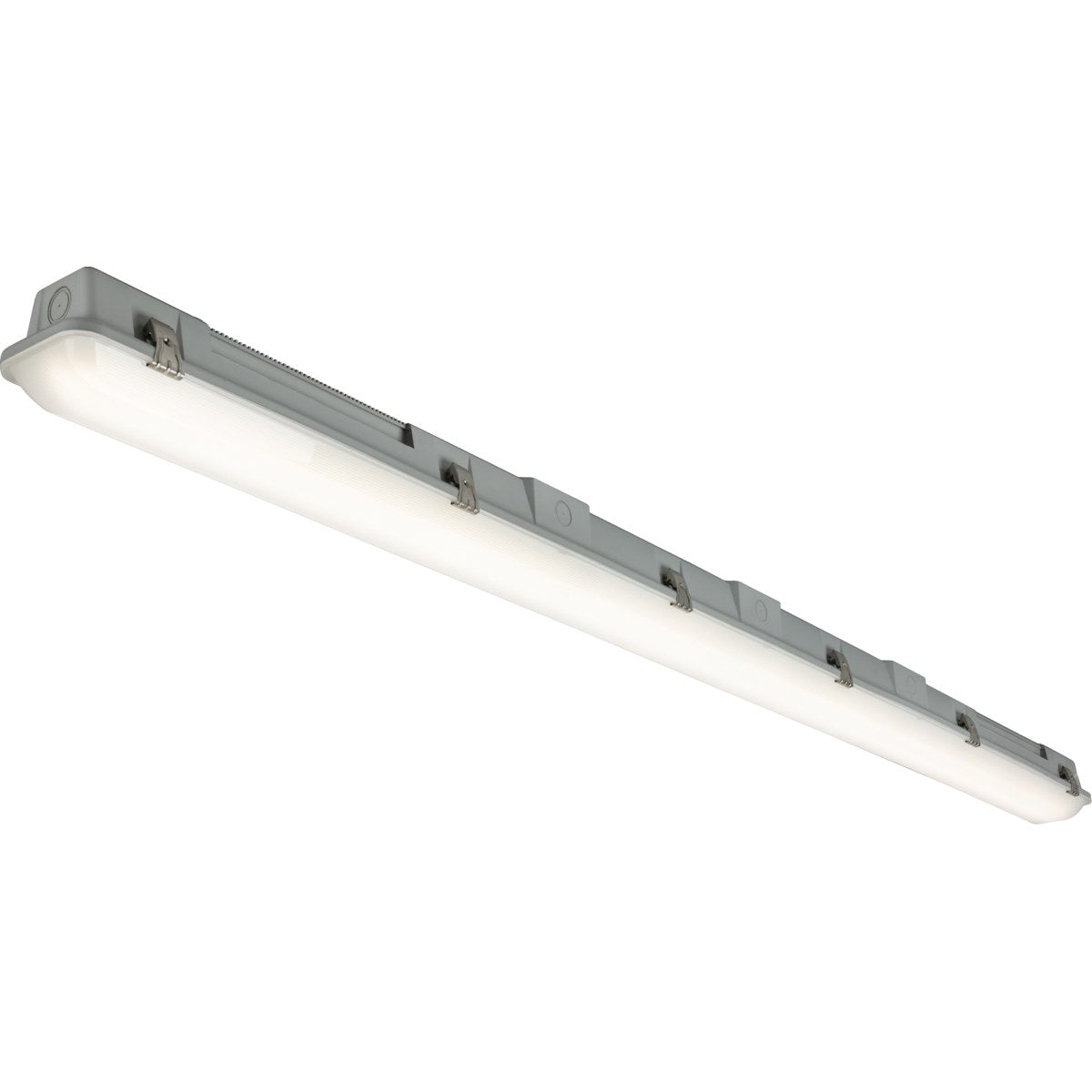

HELIX ONE 5FT 26W IP66 Emergency Weatherproof LED Batten - Grey

£4199
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

The Knightsbridge HELIX ONE 5FT IP66 IK10 26W Modular Weatherproof Fitting with Dual Mode Emergency provides maintained / non-maintained / switched escape illumination on loss of mains, IP66 rated, with an integral rechargeable battery.

It provides escape illumination on loss of mains supply, operating in maintained or non-maintained mode as specified, with an integral battery that recharges automatically when power is restored. For maintained and non-maintained use.

It is constructed from polycarbonate. It is certified to BS EN 60598-2-22 and IP66 rated.

Specification
Length 1565 mm
Height 81 mm
Width 95 mm
Projection 81 mm
Construction Polycarbonate
Finish Grey
Class I
IP Rating IP66
Primary Voltage 230V 50Hz
Diffuser Opal
Emergency Mode Maintained / Non-maintained / Switched
Light Technology SMD LED
Dimmable No
Wattage 26W
Energy Efficiency Class C
Colour Temperature 4000K
Beam Angle 115°
Light Colour Cool White
Lumens 3805 lm
CRI >80
Lamp Included Yes
Warranty 5 years
Downloads

Product Specification Sheet

Frequently Asked

What is the difference between maintained and non-maintained emergency lighting?

A maintained fitting is lit during normal operation and stays lit on battery during a mains failure; a non-maintained fitting is off in normal use and only illuminates when the mains fails.

How often should emergency lighting be tested?

Emergency lighting should be given a short functional test monthly and a full-duration (typically 3-hour) discharge test annually, with results recorded, in line with BS 5266.

Is emergency lighting a legal requirement?

In most non-domestic premises emergency escape lighting is required to meet fire safety legislation and BS 5266; the specific provision follows a risk assessment.

How long does the battery last in a power cut?

These fittings provide the rated emergency duration (commonly 3 hours) from a fully charged battery before recharging when the mains is restored.
