Description

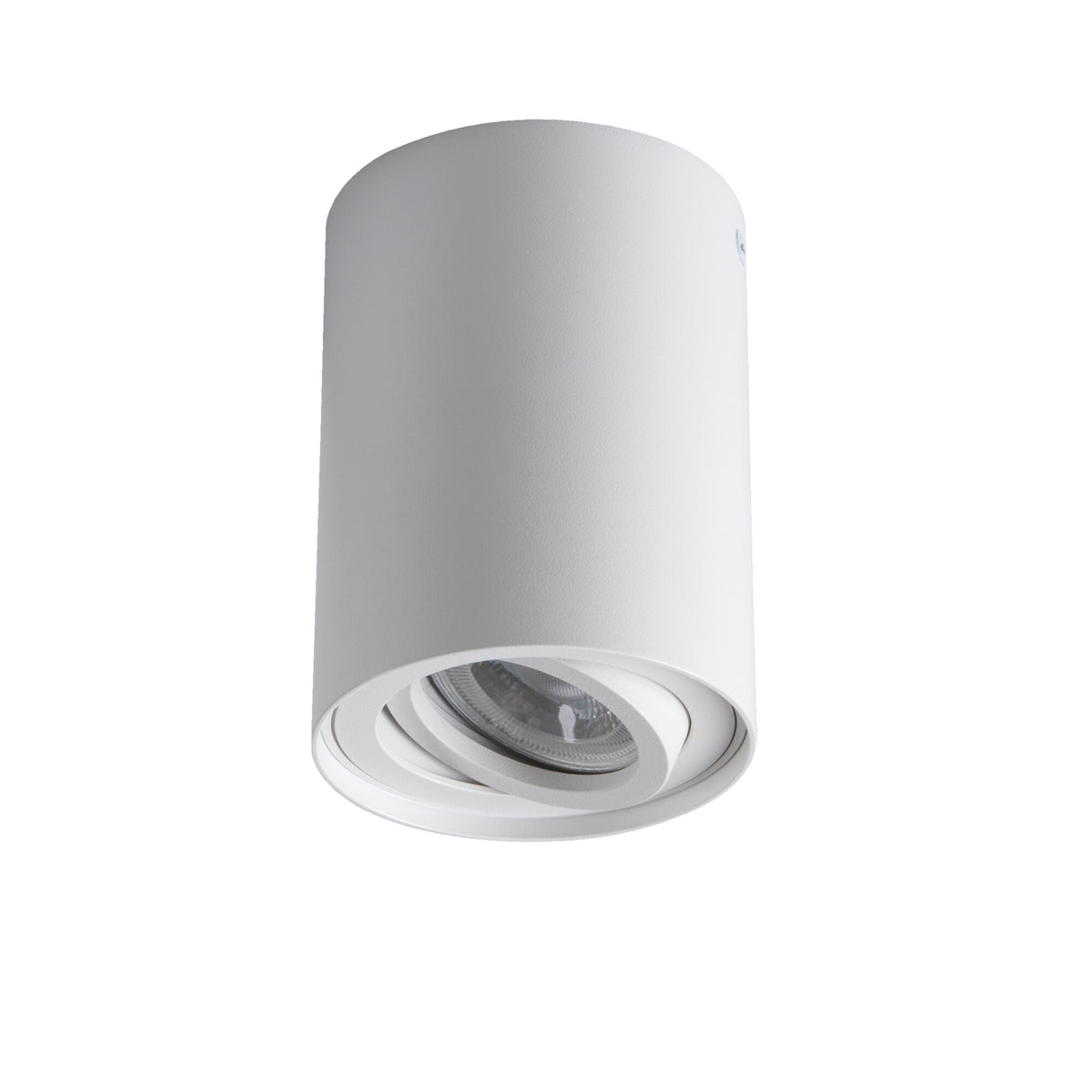

The Bord XS is a compact surface-mounted LED spotlight built around a single GU10 lamp, running on a standard 220-240V AC mains supply at up to 10W. The round head measures just Ø80 by 115mm, giving a neat point source that directs a focused pool of light wherever it is aimed. This is what US buyers would recognise as a GU10 ceiling spot, fitted with a PAR16 LED lamp that concentrates output into a defined beam rather than spreading it broadly across a room.

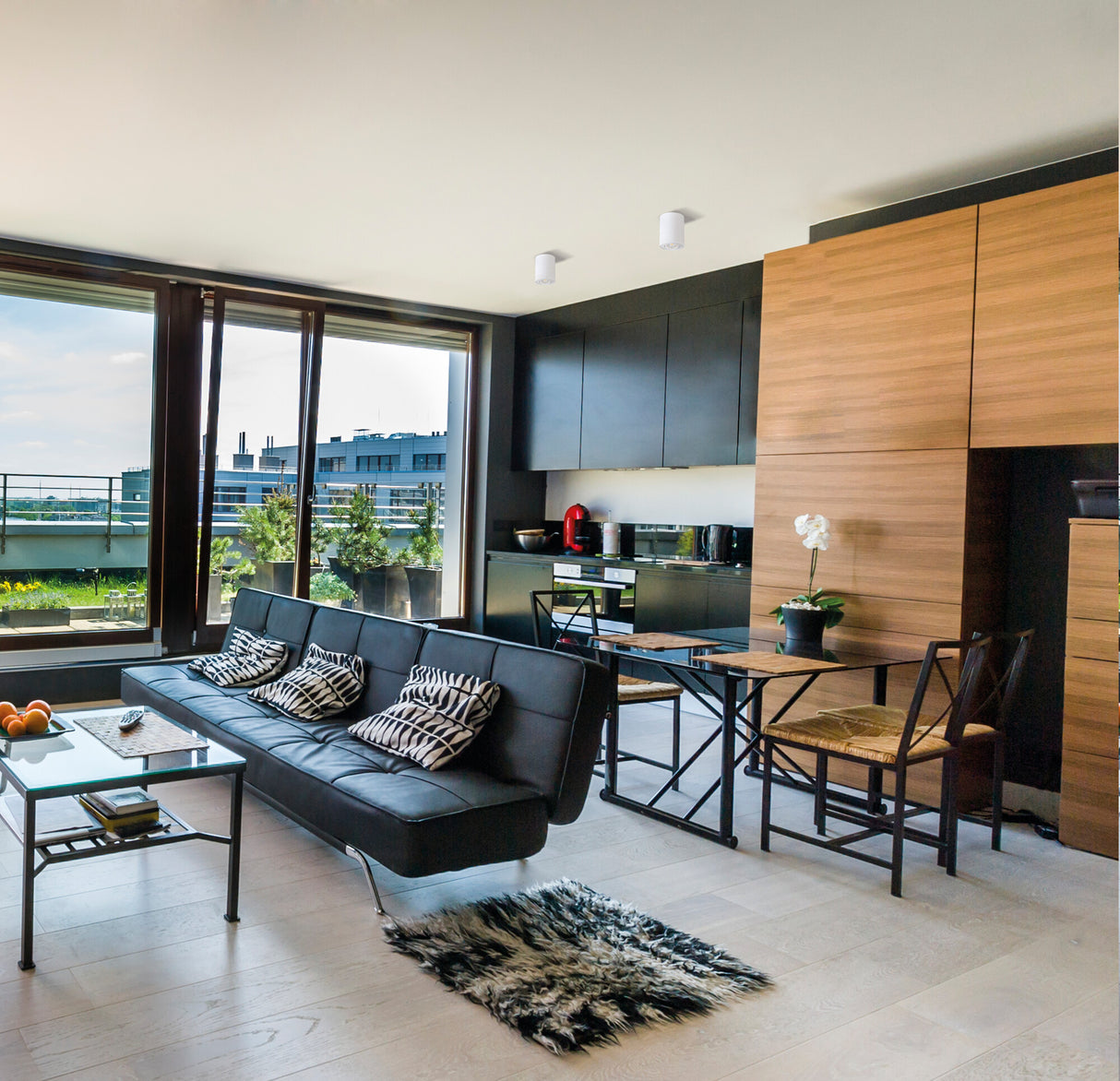

Suited to indoor settings such as hallways, landings, alcoves and shelving recesses, the Bord XS works well where accent or directional light is wanted rather than flat ambient cover. Because it throws a tight beam from a small head, it is good for highlighting artwork, a feature wall or a worktop edge, and several heads can be grouped to layer light across a larger area. The fitting is rated IP20, so keep it to dry indoor positions only and clear of bathrooms, porches and any damp or exposed locations. On lower ceilings its slim 115mm depth keeps the fitting close to the surface without dominating the space.
The body is aluminium alloy in a white finish, giving a clean look that blends with most ceilings while helping draw heat away from the lamp. It mounts directly to the ceiling surface and takes a GU10 lamp, so the light source can be swapped or changed to a different colour temperature without replacing the fitting. The W XS designation marks this as the smallest head in the Bord range. Weight is a modest 248g, keeping installation straightforward. We also stock larger Bord heads if you need a bigger fitting for the same look across a room.
Specification
| Power |
max 10W |
| Voltage |
220-240 AC |
| IP rating |
IP20 |
| Mounting |
Ceiling Mounted |
| Cap / base |
GU10 |
| Light source |
PAR16 LED |
| Shape |
Round |
| Dimensions |
Ø80 × 115 mm |
| Weight |
248 g |
| Material |
Aluminium Alloy |
| Finish |
White |
Downloads
Frequently Asked
Can the Bord XS be used in a bathroom or outdoors?
No. The Bord XS is rated IP20, which means it is for dry indoor use only. Keep it out of bathrooms, porches, carports and any damp or exposed positions, and choose a higher IP-rated fitting for those areas.
Does it come with a GU10 lamp, and is it dimmable?
The fitting takes a standard GU10 lamp on a 220-240V mains supply. Dimming depends on the lamp you fit and the dimmer used, so check that both the GU10 lamp and your dimmer switch are compatible before installing.
How is the Bord XS mounted?
It is a surface-mounted spotlight that fixes directly onto the ceiling, so no recessed cut-out is needed. The compact Ø80 head and 115mm depth keep it close to the surface, which suits lower ceilings.
How do I clean the fitting?
Switch off the power and let the lamp cool, then wipe the white aluminium head with a soft, dry or slightly damp cloth. Avoid harsh solvents and abrasive cleaners, which can mark the finish over time.
