Description

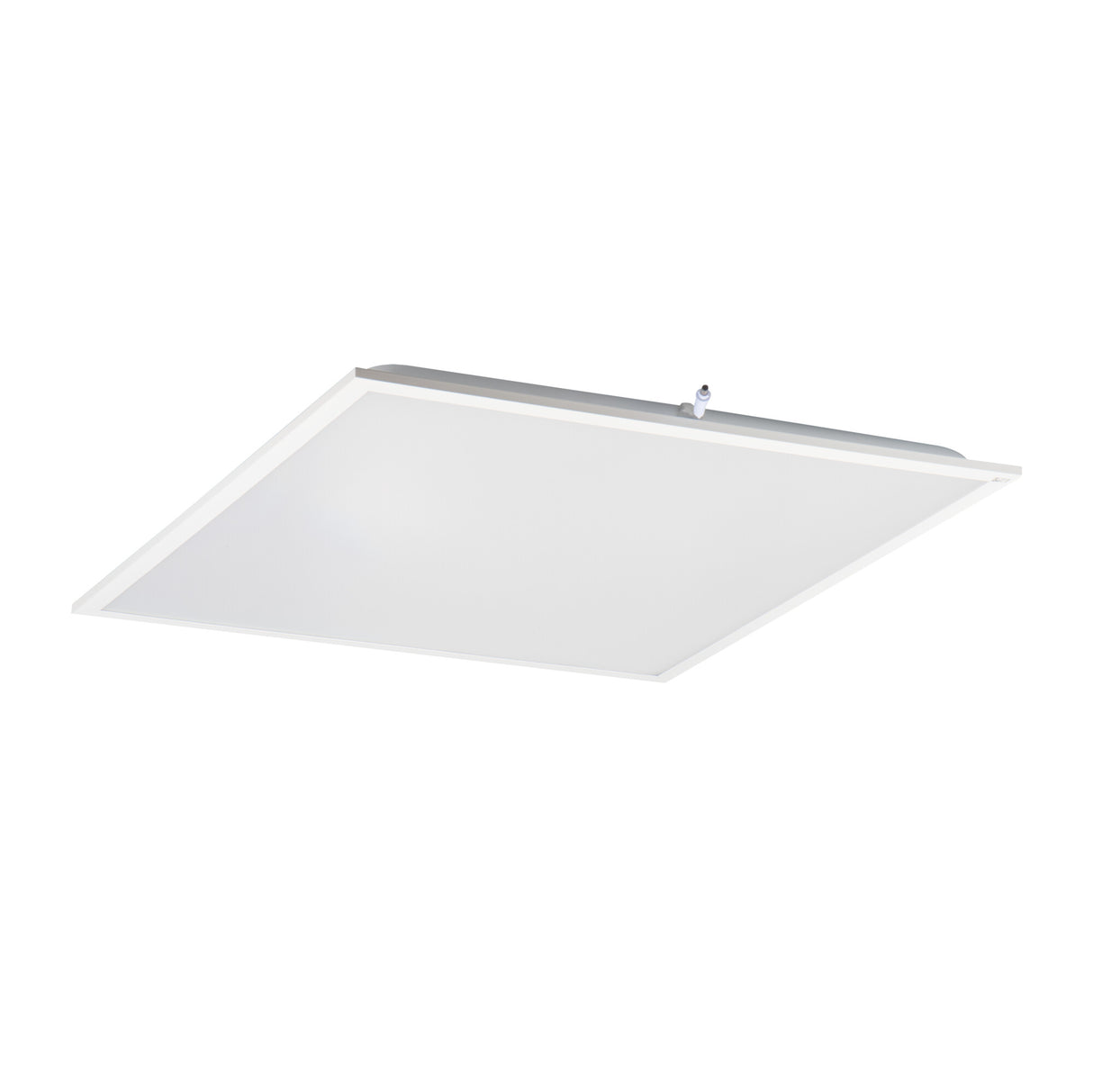

The BLINGO UIP is a recessed LED panel light that drops into a standard ceiling grid to give an even, glare-controlled wash across a room. It draws up to 40W and offers a selectable output of 3000, 4000 or 5000 lumens, so a single fitting can be matched to the brightness a space needs. The light sits at a neutral 4000K cool white with a 90 degree beam and a high Ra 90 colour rendering. Builders working to US specifications will know this 595 x 595 mm format as a 2x2 panel, the classic square troffer that fits a suspended-ceiling grid.

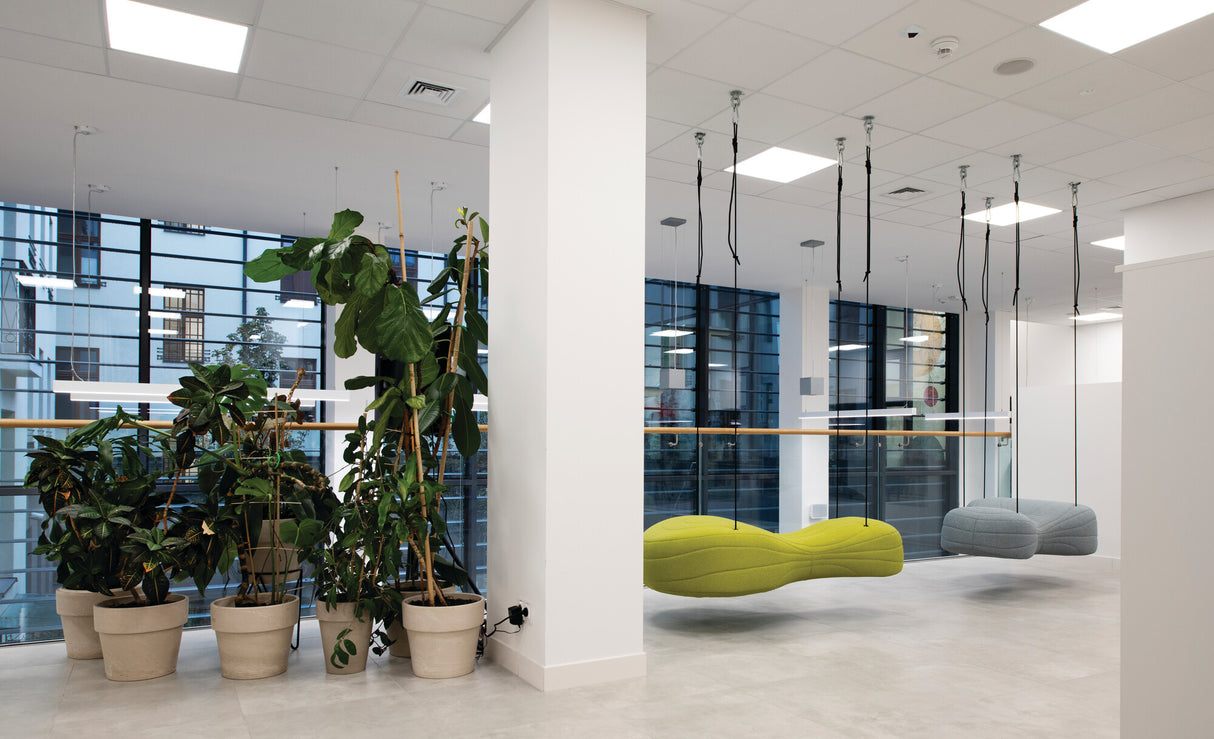

Sized for a 600x600 grid, the panel works well across offices, classrooms, reception areas, retail floors and clinical rooms where flat, shadow-free light is wanted. At its full output it covers around 10 to 17 m² at general lighting levels, depending on whether you set it to 3000, 4000 or 5000 lumens, which makes it easy to plan even spacing across a larger ceiling. It is intended for a recessed install, so allow clearance in the void above the grid for the body and the driver connection.
The chassis is steel in a white finish with a diffusing face that softens the LED output. It carries an IP54/20 rating, leaving it suited to splash-prone and sheltered settings such as bathroom zones and covered porches or carports, though not fully exposed positions or direct water jets. No driver is supplied, so a compatible LED driver should be specified to suit the chosen output. The BLINGO UIP sits within our wider Blingo panel range, with matching sizes available.
Specification
| Power |
max 40W |
| Luminous flux |
3000 / 4000 / 5000 lm |
| Efficiency |
max 125 lm/W |
| Colour temperature |
4000K |
| Colour rendering (CRI) |
Ra 90 |
| Beam angle |
90° |
| IP rating |
IP54/20 |
| Driver included |
No |
| Mounting |
Recessed Mount In The Ceiling |
| Lifespan |
50,000 hours |
| Shape |
Square |
| Dimensions |
595 × 595 × 26 mm |
| Weight |
1.61 kg |
| Material |
Steel |
| Finish |
White |
Downloads
Frequently Asked
Can I choose how bright it runs?
Yes. The panel is selectable across 3000, 4000 and 5000 lumens, so you can set the output to suit the room. This is handled at the driver, which lets you tune brightness and run cost without changing the fitting.
Does it fit a standard suspended ceiling grid?
Yes. At 595 x 595 mm it drops neatly into a 600x600 mm modular grid, the format known in the US as a 2x2 panel or troffer. You will need clearance in the void above to seat the body and route the driver connection.
Is a driver included?
No, a driver is not supplied with this panel. As it offers a selectable output, a compatible LED driver should be specified to match your chosen lumen level before installation.
How do I clean the diffuser?
Wipe the diffuser face gently with a soft, dry or slightly damp cloth once power is isolated. Avoid solvents and abrasive pads, which can mark the surface and reduce the evenness of the light over time.
