Adastra RC9U450 9U 450mm Deep 19" Rack Cabinet

£18799
RRP £18900
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

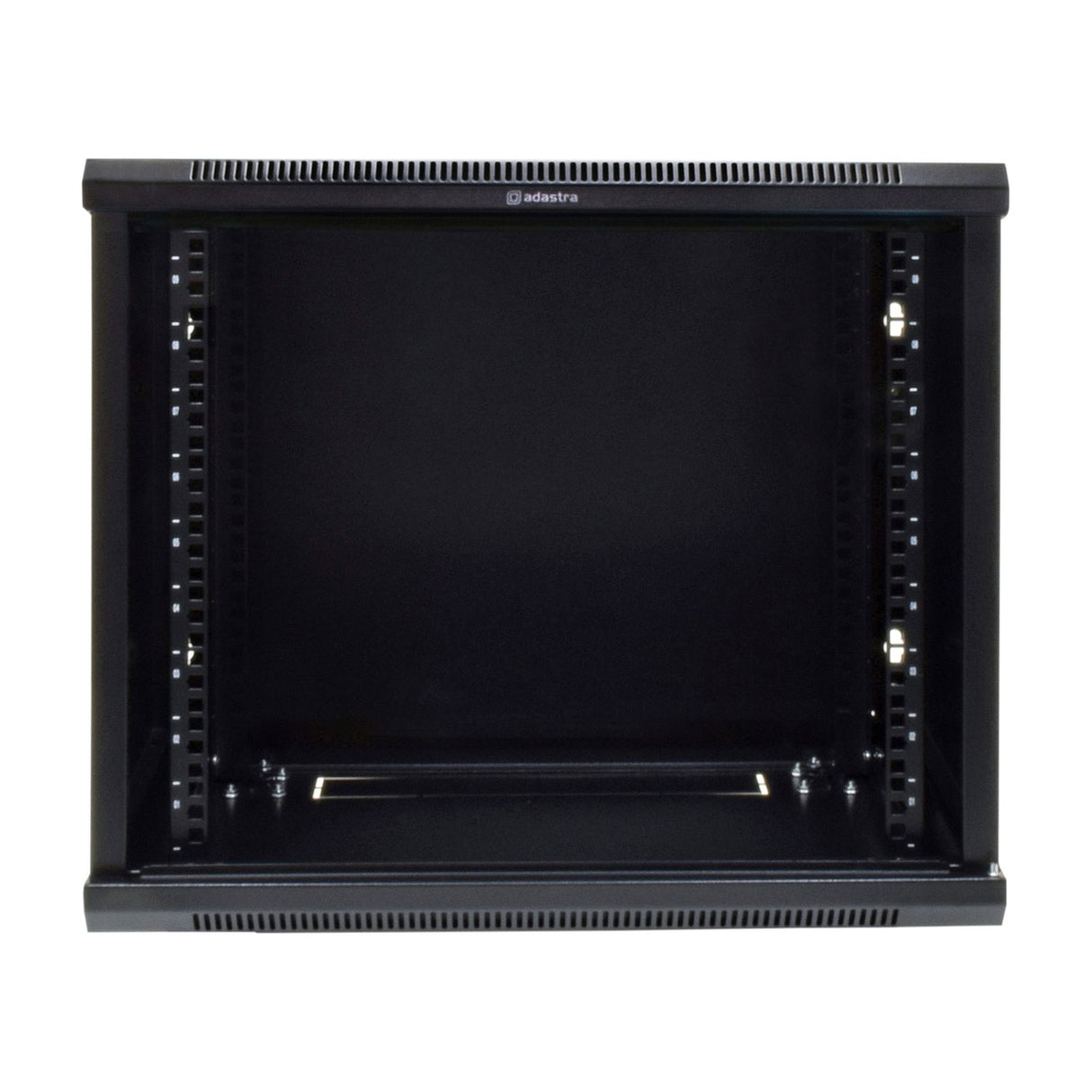

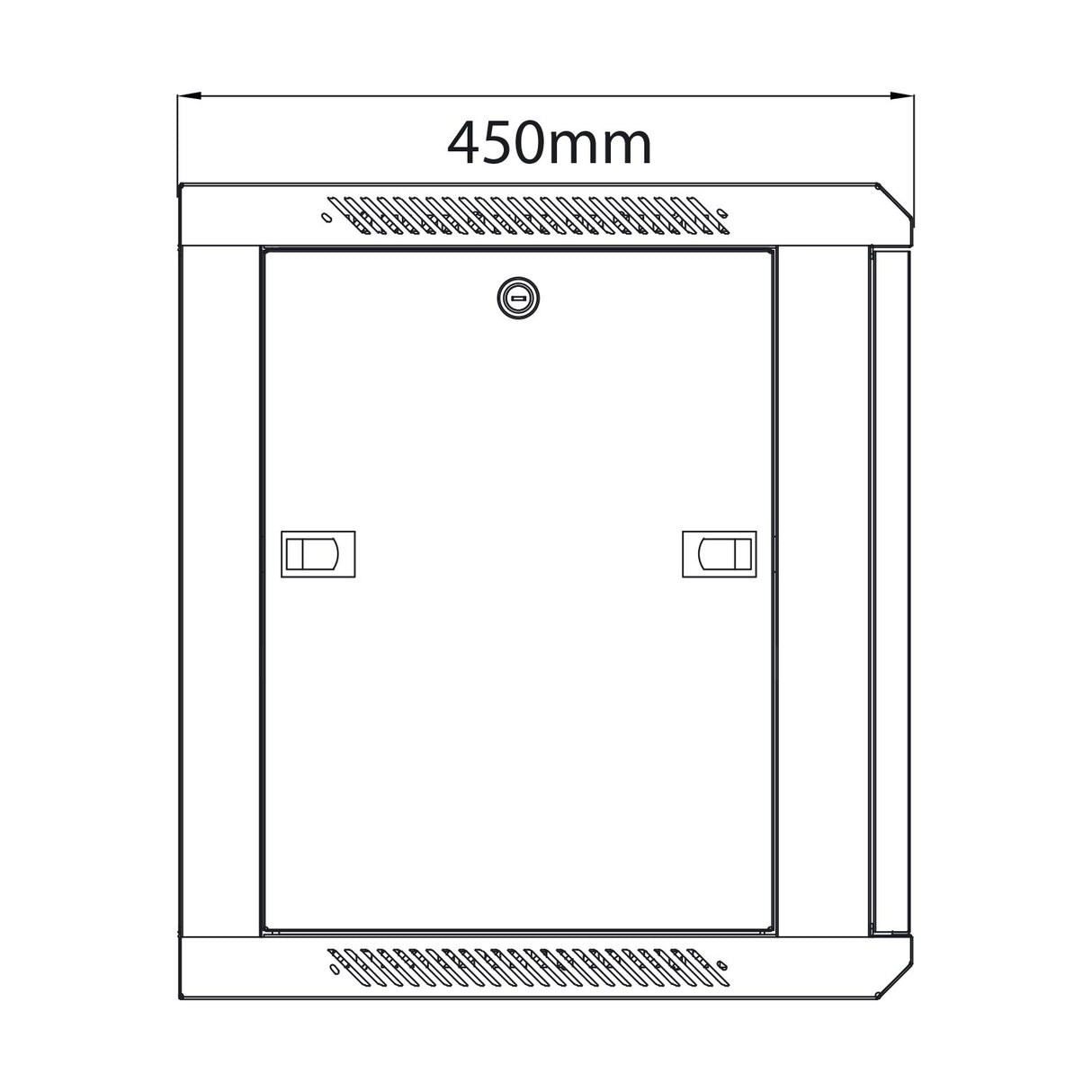

The Adastra RC9U450 is a 9U rack cabinet with a 450mm mounting depth, built for 19" rack-mount equipment. It's constructed from 1.2mm cold-rolled steel with folded edges for strength and stability, finished in an epoxy powder coat to RAL9004. Both the front and rear rack strips are supplied and mounted to internal rails, so you can adjust the mounting depth to suit equipment with overhanging fittings or to support the rear of heavier units.

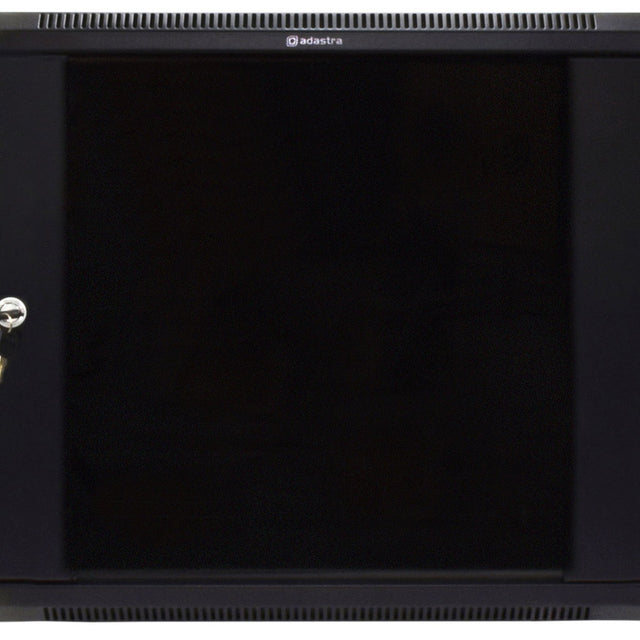

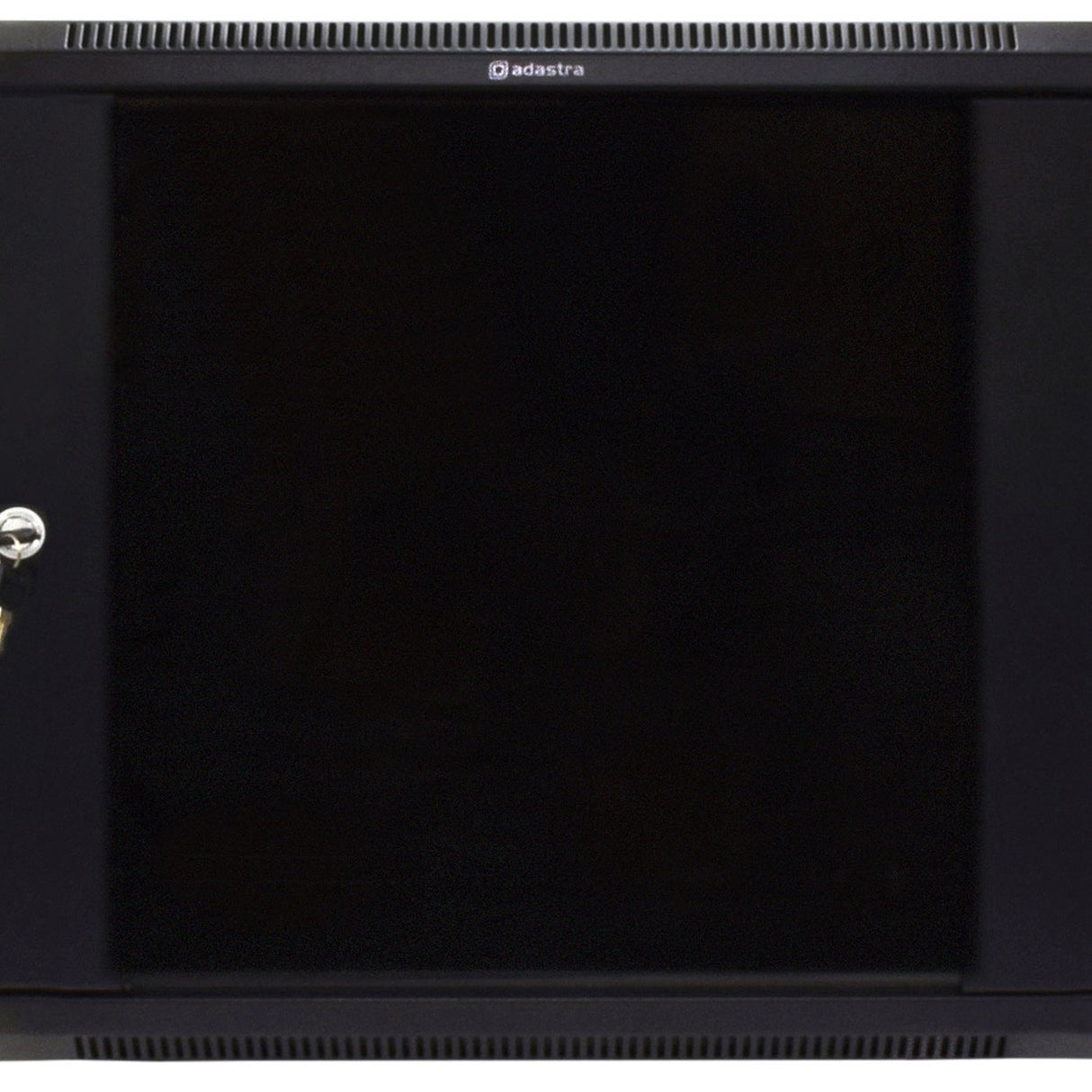

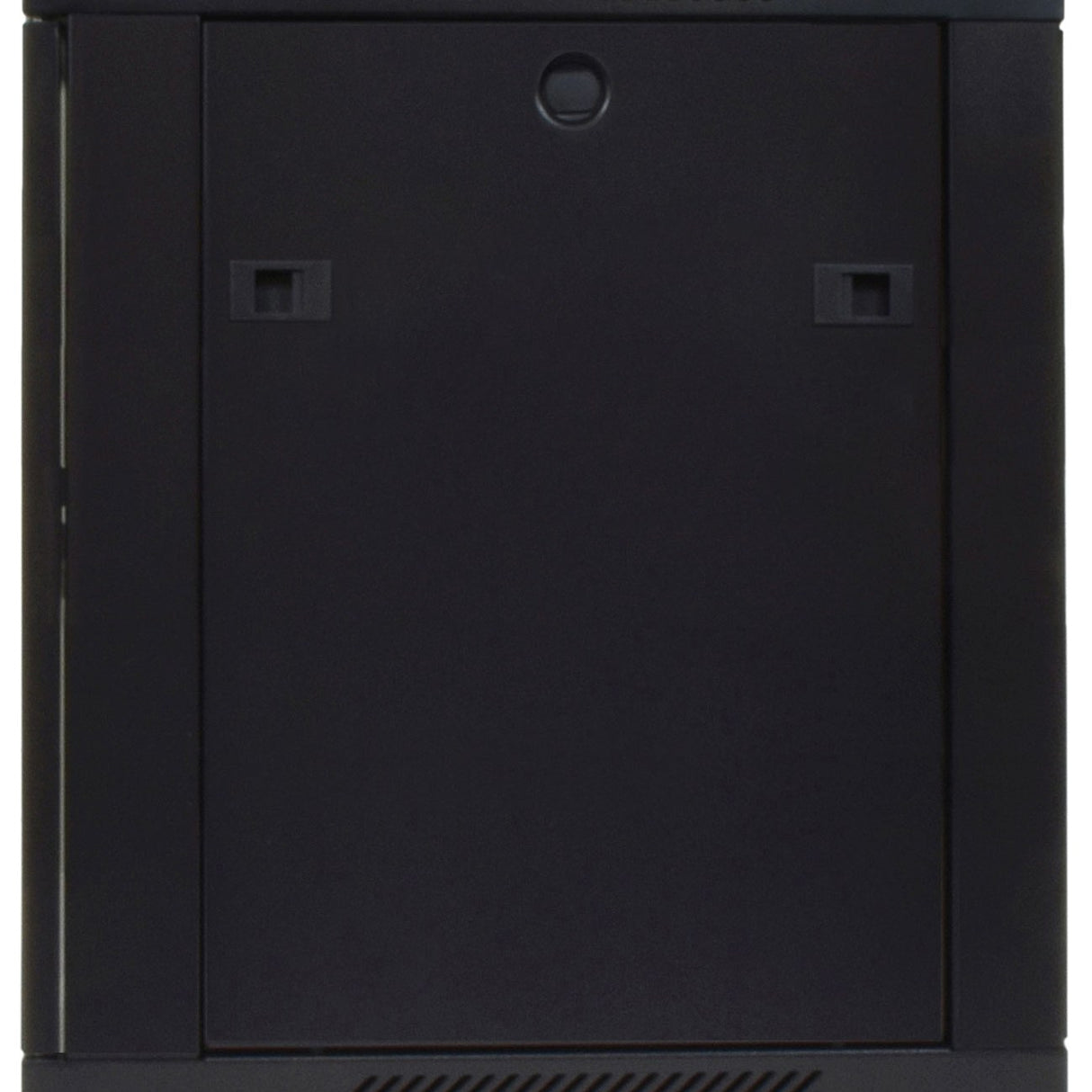

The front door is removable and holds a pane of 5mm tempered glass set into folded steel edge panels. It can be set to open from either the left or right, and comes with a lock and two keys. The side panels clip in for easy access, and the top panel is vented for cooling with a cut-out ready for a fan if you need one. Top and bottom knock-outs give you routes for cable feeds. The rear panel has fixing apertures for wall mounting, or you can use the cabinet free-standing. Maximum static load is 100kg total.

Assembly is straightforward, and the cabinet meets ANS/EIA RS-310-D, IEC297-2, DIN41491 and ETSI standards, so it fits standard 19" gear. The width is 600mm, and the range is available in two depths and various rack heights, so you can match the size to your install. It's a secure, well-made option for professional rack setups where you want lockable, ventilated containment.

Specification
Material 1.2mm cold rolled steel & 5mm tempered glass
Finish Epoxy powder coated RAL9004
Maximum load 100kg static (total)
Standard ANS/EIA RS-310-D,IEC297-2,DIN41491,PART1,DIN41491,PART7,ETSI compliant

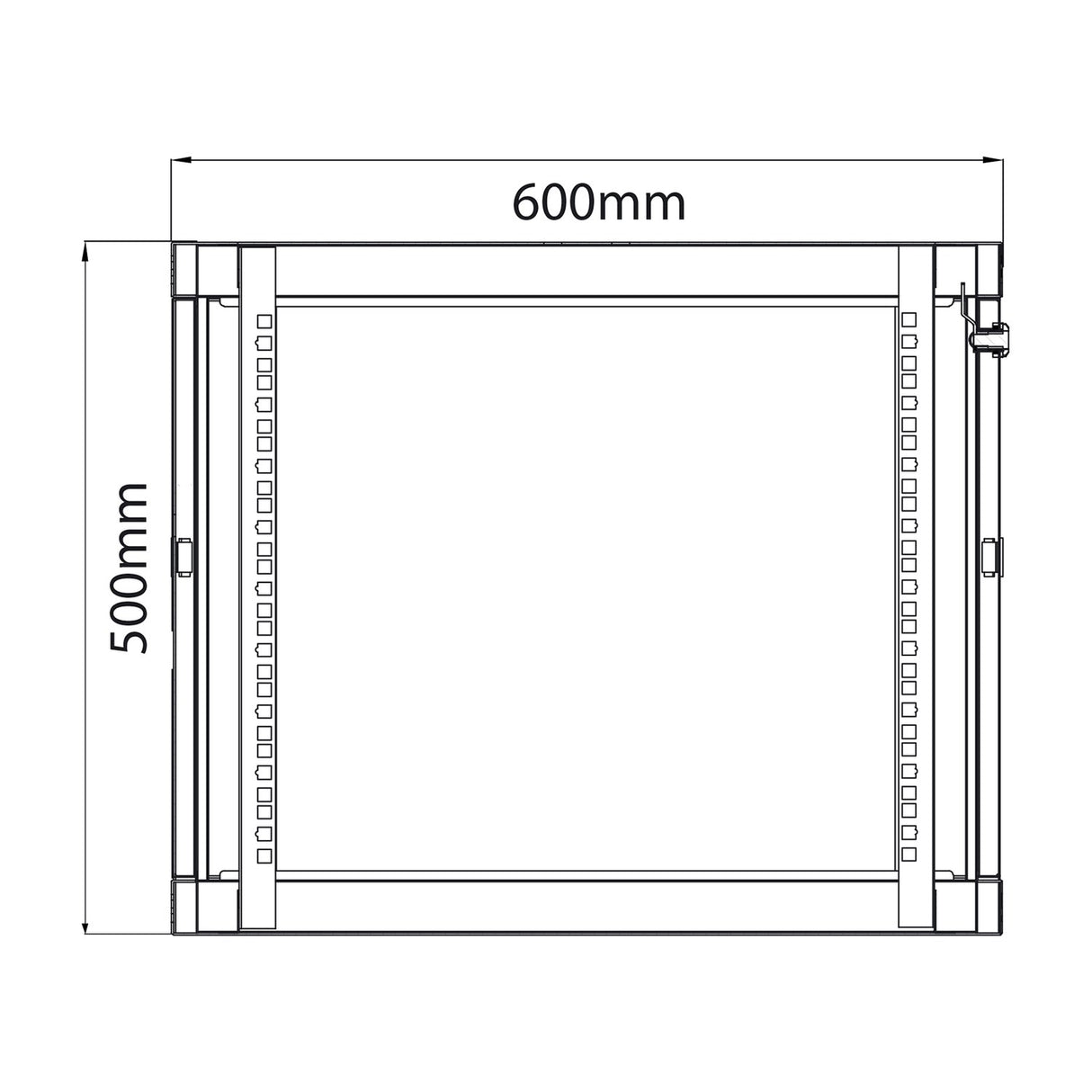

Width 600mm
Downloads

Product Manual

Frequently Asked

How many rack units does the RC9U450 hold?

It offers 9U of usable mounting space for standard 19" rack-mount equipment.

What is the mounting depth?

The cabinet has a 450mm depth, and the front and rear rack strips can be adjusted to suit your equipment. The wider range is available in two depths.

Can I wall mount this cabinet?

Yes. The rear panel has fixing apertures for wall mounting, or you can use it free-standing.

Is the front door lockable?

Yes. The removable glass front door comes with a lock and two keys, and can be set to open from the left or right.

How much weight can it hold?

The maximum static load is 100kg total across the cabinet.

Does it support a cooling fan?

The vented top panel has a cut-out so you can mount a cooling fan if your equipment needs extra airflow.

Shipping & Returns

Delivery UK delivery is £14.99, and delivery is free on all orders of £99 or more, in the UK and internationally.

Returns If you change your mind, you have 14 days from delivery to tell us, and a further 14 days to send the goods back. Return postage for a change-of-mind return is paid by you. Change-of-mind returns are subject to an inspection and handling deduction. See our full returns policy.

To arrange a return, call us on 020 8149 5199 or use our contact page.
