20AX DP Toggle Switch Module - White

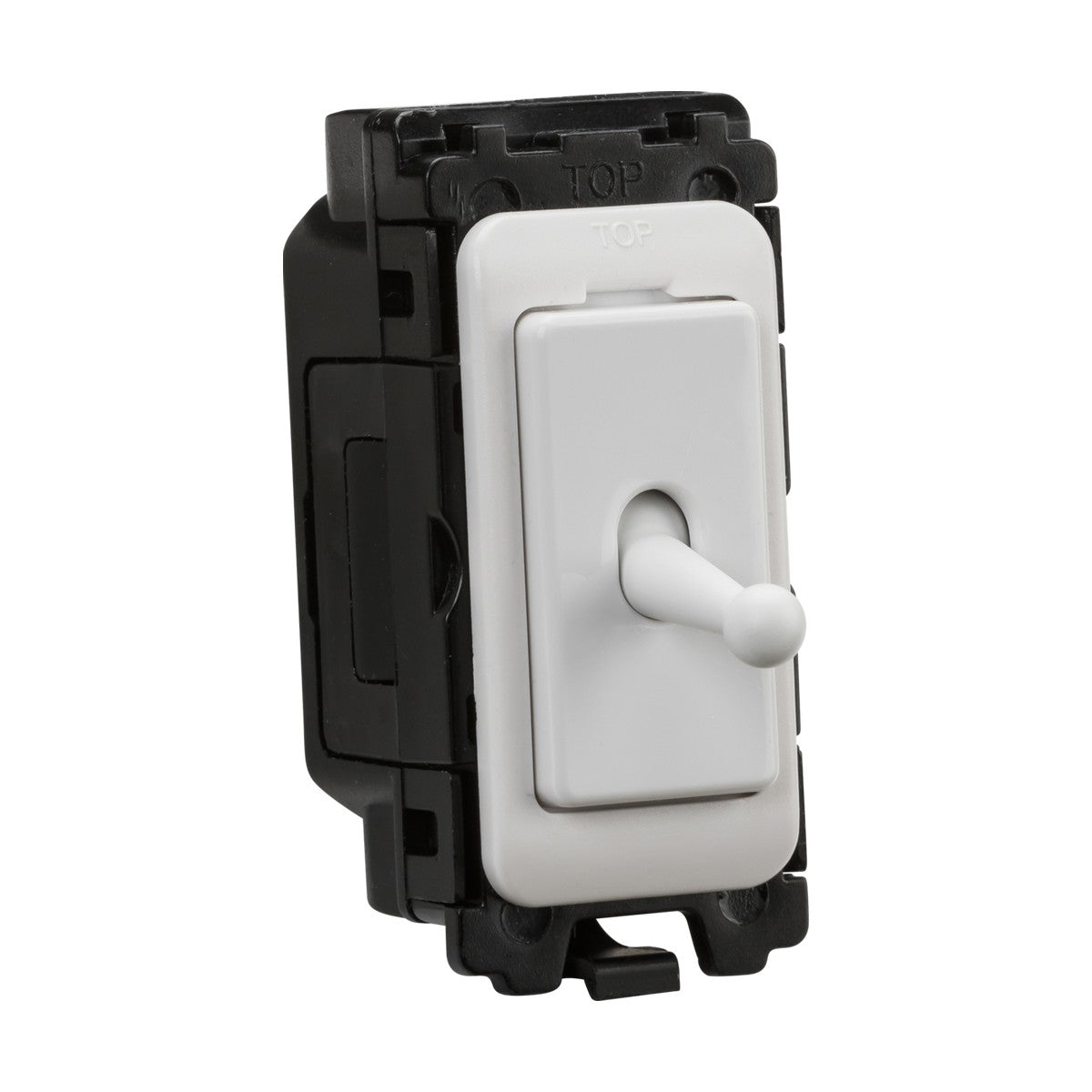

This Knightsbridge 20AX DP toggle switch module is a single-gang grid component in white thermoset resin, designed to clip into curved edge grid mounting frames from the front without tools. The double pole switching isolates both live and neutral lines when off, providing safer control of high-draw appliances and circuits than single-pole alternatives. The 20AX rating handles loads up to 4,600W on 230V mains.

Used in modular grid installations where switch layouts need to be customised, the module pairs with Knightsbridge curved edge grid frames (sold separately) to build 1-gang, 2-gang, 3-gang or larger switch plates. Common applications include kitchens with multiple appliance circuits, home offices with dedicated equipment zones, and AV installations where individual components need independent switching. The module fits a 35mm minimum back box depth and uses captive terminals that retain screws during wiring.

The white thermoset resin construction is harder and more heat-resistant than standard plastic, maintaining dimensional stability under the thermal cycling of high-load switching. The toggle mechanism provides tactile feedback on switching state and is rated for 25,000 operations under the 25-year warranty. The IP20 rating suits dry indoor environments; for bathrooms or outdoor use, alternative IP-rated modules are required. Anti-microbial properties tested to ISO 22196:2011 reduce bacterial colonisation on the surface, making the module suitable for clinical, food preparation and high-hygiene environments.

The module measures 55mm high by 25mm wide (single grid width) with 15mm projection from the mounting frame. Installation requires a curved edge grid frame and faceplate from the same Knightsbridge range; this module is not compatible with standard screw-fixed switch plates or other grid systems.

Product Specification Sheet

What is a grid system and how does this module work?

Grid systems allow you to build custom switch plates by clipping individual modules (switches, sockets, dimmers) into a mounting frame, then covering with a faceplate. This 20AX toggle switch module clips into Knightsbridge curved edge grid frames from the front. You can combine multiple modules in one frame to create multi-gang plates tailored to your exact switching needs.

What's the difference between single pole and double pole switching?

Single pole switches break only the live conductor. Double pole switches break both live and neutral, fully isolating the circuit when off. DP switching is safer for high-power appliances, water heaters, immersion heaters and equipment where complete isolation is needed for servicing.

Can this module be used in bathrooms?

The IP20 rating means this module is suitable for dry indoor locations only. Bathrooms require switches with higher IP ratings (typically IP44 or above) depending on zone placement. Knightsbridge produces IP-rated grid modules for wet environments.

What other finishes and module types are available in this grid range?

Knightsbridge curved edge grid modules are available in white, polished chrome, brushed chrome, polished brass, antique brass and matt black finishes. Module types include rocker switches, toggle switches, dimmers, sockets, USB charging, data ports and blanking plates. Use the search function to find compatible modules and frames.
