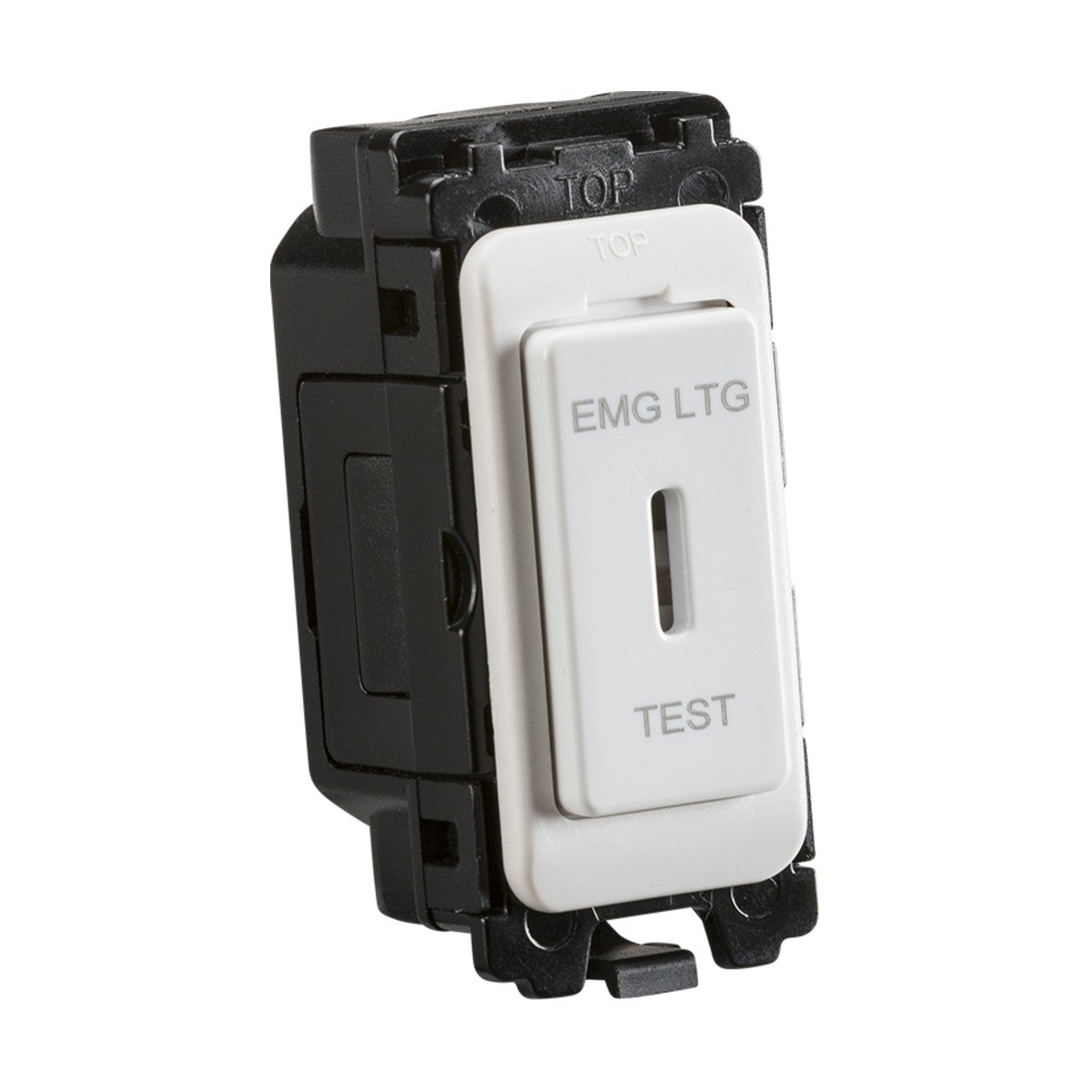

20AX DP Key Switch Module Marked EMG LTG TEST - White

The Knightsbridge 20AX DP key switch module is a double pole key-operated switch marked 'EMG LTG TEST' on a white faceplate. The module accepts a single grid space in Knightsbridge curved edge grid systems and is supplied with one key. The 20AX rating handles loads up to 4,600W on 230V circuits, making it suitable for emergency lighting test circuits in commercial and residential installations.

Designed for electrical installations requiring secure access control, the key switch prevents unauthorised operation of emergency lighting test circuits. The double pole switching isolates both live and neutral lines when the switch is in the off position, providing additional safety over single pole switching for circuits that require full disconnection during testing or maintenance. The module fits into standard curved edge grid plates alongside other Knightsbridge grid modules, allowing multi-function control panels to be built up from individual components.

The module measures 55mm high by 25mm wide (single grid space width) and requires a minimum 35mm mounting box depth for installation. Constructed from thermoset resin, the white finish coordinates with Knightsbridge's curved edge range and carries anti-microbial properties tested to ISO 22196:2011. The front mounting design allows the module to clip into the grid plate without requiring rear access once the back box is wired.

Product Specification Sheet

Product Manual

What is the key switch used for?

The key switch provides secure access control for emergency lighting test circuits, preventing unauthorised operation. The 'EMG LTG TEST' marking identifies its function on multi-module grid plates. The double pole switching isolates both live and neutral lines during testing.

What grid system does this fit?

This module fits only Knightsbridge curved edge grid systems. It occupies one grid space (25mm width) and can be combined with other curved edge modules in 2-gang, 3-gang or larger grid plates. It is not compatible with standard flat grid systems or other manufacturers' grid products.

What back box depth is required?

A minimum 35mm mounting box depth is needed for safe installation. The module itself has a 25mm depth with a 20mm recessed depth, so shallow boxes will not accommodate the internal terminals and wiring space required.

Is the key removable in both positions?

Key removal positions depend on the specific key switch mechanism. Most emergency lighting test switches allow the key to be removed in the off position only, preventing the switch from being left in the test position unattended. Check the product manual for the exact key removal behaviour of this model.
