20A 1 Gang DP Switch - Polished Chrome Screwless

£999
The RRP is the manufacturer's recommended retail price of the item.
77 In Stock - Ready to Ship
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

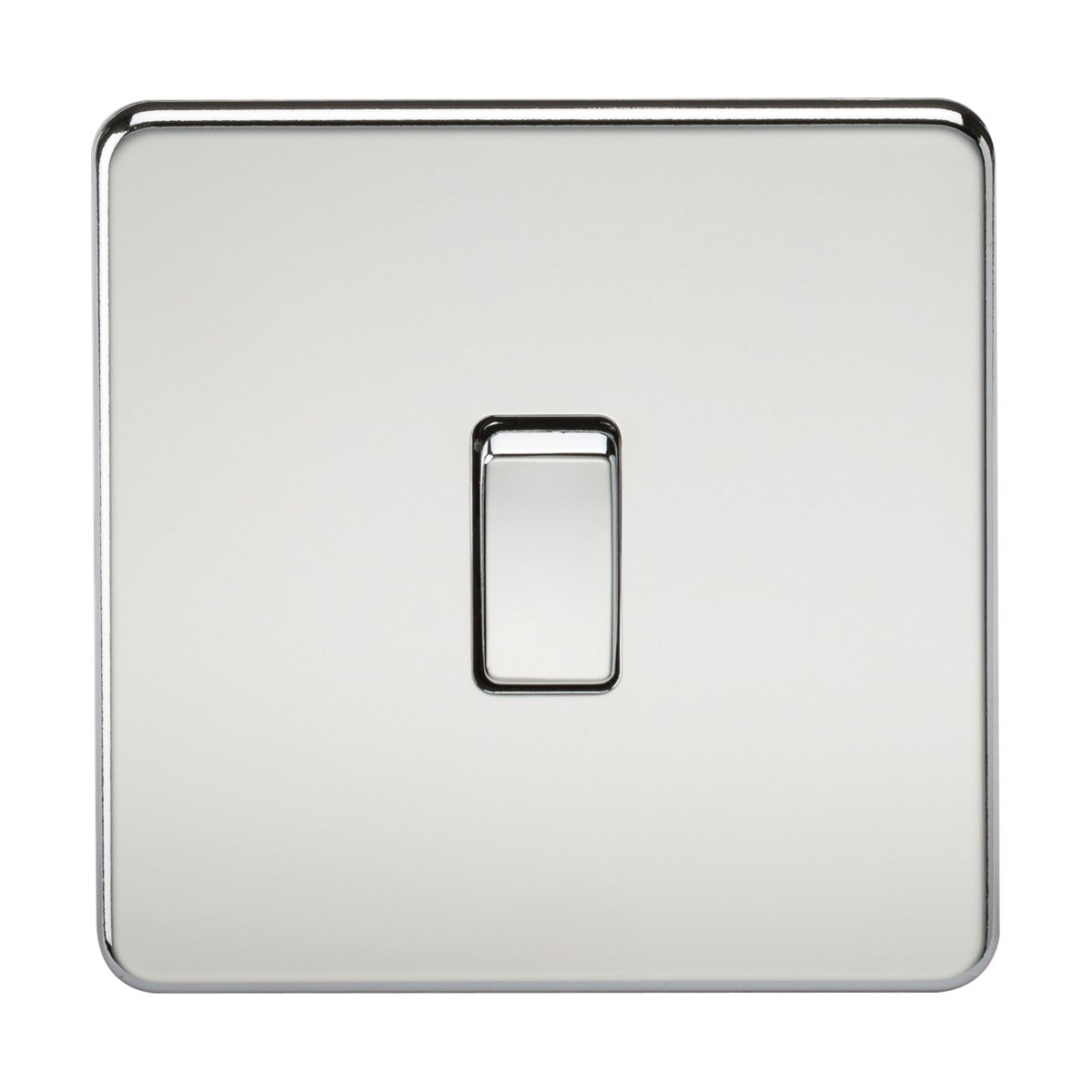

The Knightsbridge 20A 1-gang double-pole switch is designed for controlling fixed appliances rated up to 4,600W on 230V mains supply, including water heaters, cooker hoods, and immersion heaters. The double-pole switching isolates both live and neutral lines when turned off, providing safer isolation for high-draw appliances than single-pole switching.

The polished chrome screwless faceplate uses a cover plate that clips onto a separate steel sub-frame fixed to the back box, leaving no visible screws or fixings on the wall. The 87.5mm square plate sits flush with minimal projection (4.3mm beyond the wall surface), making it suitable for areas where protruding switches would catch clothing or create hazards. The matching chrome rocker sits within the polished chrome frame for a unified metallic finish.

The switch requires a minimum 25mm back box depth for installation and is certified to EN 60669-1. The premium-grade steel construction carries an IP20 rating for indoor use only and includes an earth terminal. The built-in gasket between the cover plate and sub-frame provides a secure seal against dust ingress and improves the fit against uneven wall surfaces.

Specification
Height 87.5 mm
Width 87.5 mm
Projection 4.3 mm
Min. Mounting Box Depth 25mm
Construction Premium grade steel
Finish Polished Chrome
Class I
IP Rating IP20
Primary Voltage 230V 50Hz
Earth Terminal Yes
Neon Indicator No
Warranty 25
Downloads

Product Specification Sheet

Product Manual

Frequently Asked

What appliances is this switch suitable for?

The 20A rating handles fixed appliances up to 4,600W on 230V supply. Common applications include immersion heaters, water heaters, cooker hoods, and extractor fans. It is not suitable for standard 13A plug sockets or lighting circuits.

What back box depth is required?

A minimum 25mm back box depth is needed. The screwless cover plate clips onto a steel sub-frame that mounts to the back box, adding 4.3mm projection from the wall surface once installed.

Is the screwless plate removable for redecorating?

Yes. The polished chrome cover plate clips onto a separate sub-frame and can be removed for painting around the switch without disturbing the wiring. Re-clip the plate once decorating is complete.

What other finishes are available in this range?

Knightsbridge produces this 20A switch in a range of finishes including brushed chrome, polished brass, antique brass, matt black and white. Use the search function or filters to find other variants in stock at Niori.
