Description
The Zephyra is a 255mm diameter recessed LED ground light housing a 20W 3000K integrated LED module inside a grey powder-coated steel body. The LED module sits on an adjustable mount that tilts ±30° from vertical, allowing the light to be angled towards architectural features, garden elements or building facades rather than pointing straight upward. The IP67 rating means the fitting is fully protected against dust ingress and can withstand temporary immersion in water up to 1m depth, making it suitable for driveways, pathways, patios and landscape zones where surface water or heavy rain is expected.

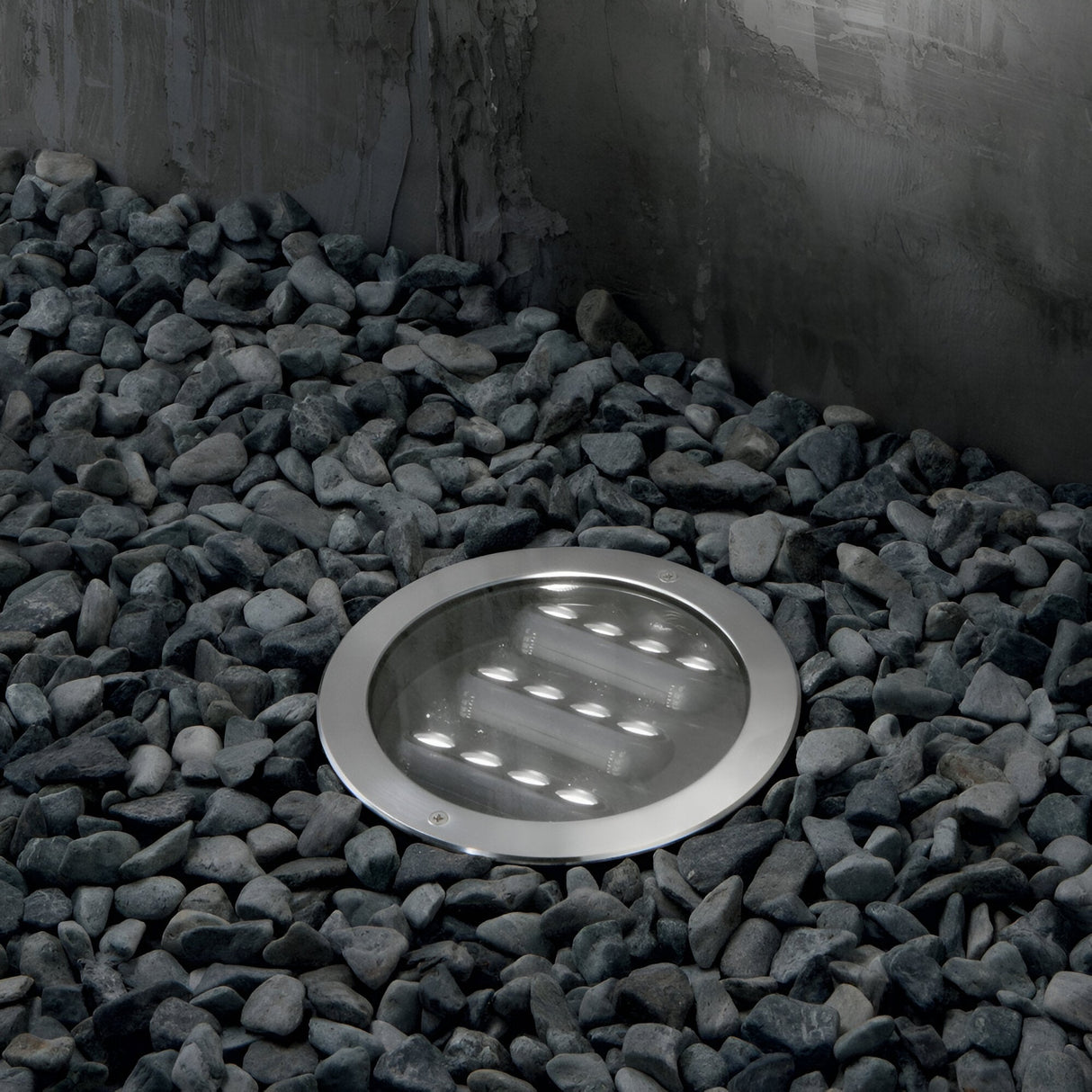

Designed for outdoor installation in paved areas, gravel drives and landscape borders, the Zephyra recesses into a prepared ground pocket with 104mm depth clearance below finished surface level. The 270mm projection accounts for the bezel rim that sits flush with paving or tarmac once installed. The 1540mm cable run connects to an external junction box or weatherproof driver housing, allowing the fitting to be positioned up to 1.5m from the power supply termination point. The round bezel and low-profile design minimise trip hazards and allow vehicles to drive over the fitting when installed in a driveway or parking area.
The 20W LED provides functional illumination for larger outdoor zones requiring higher light output than typical 3W or 6W pathway markers. The 3000K colour temperature produces warm white light that softens shadows on stone and brick surfaces and works comfortably in both contemporary and traditional garden schemes. The grey powder-coated finish on the steel housing resists corrosion and blends into concrete, granite and slate paving without creating a visual contrast. The adjustable module allows the same fitting to serve as uplight accent on a wall, path lighting angled 30° ahead of the fitting, or standard vertical wash depending on tilt setting.
Specification
| Length (mm) |
255 |
| Projection (mm) |
270 |
| Height (mm) |
104 |
| Cable Length (mm) |
1540 |
| Dimmable |
No |
| Number Of Bulbs |
1 |
| Bulb Type |
LED |
| Colour Temperature |
3000K |
| IP Rating |
IP67 |
| Warranty |
5 Years |
Frequently Asked
What depth is required for installation?
The fitting requires 104mm depth clearance below finished surface level for the housing, plus additional depth for cable routing and any junction box or driver enclosure below. A typical installation pocket is 150-200mm deep depending on the substrate and wiring method.
Can vehicles drive over this fitting?
Yes. The steel housing and flush-mounted bezel are designed to withstand vehicle loads when installed correctly in a driveway or parking area. The fitting must be fully supported by the surrounding paving or concrete substrate to distribute load evenly across the bezel.
Is the LED module replaceable?
The LED is integrated and not user-replaceable. The module is rated for 30,000+ hours of operation, which equates to approximately 10-15 years of typical evening use. The fitting carries a 5-year warranty from Ideal Lux.
What does the ±30° tilt adjustment allow?
The LED module inside the housing can be angled up to 30° in any direction from vertical. This allows the light to be directed at a wall, tree, or architectural feature rather than pointing straight upward, giving flexibility in accent lighting and wash effects.
