TV Outlet Non-Isolated - Brushed Chrome Square Edge

£699
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

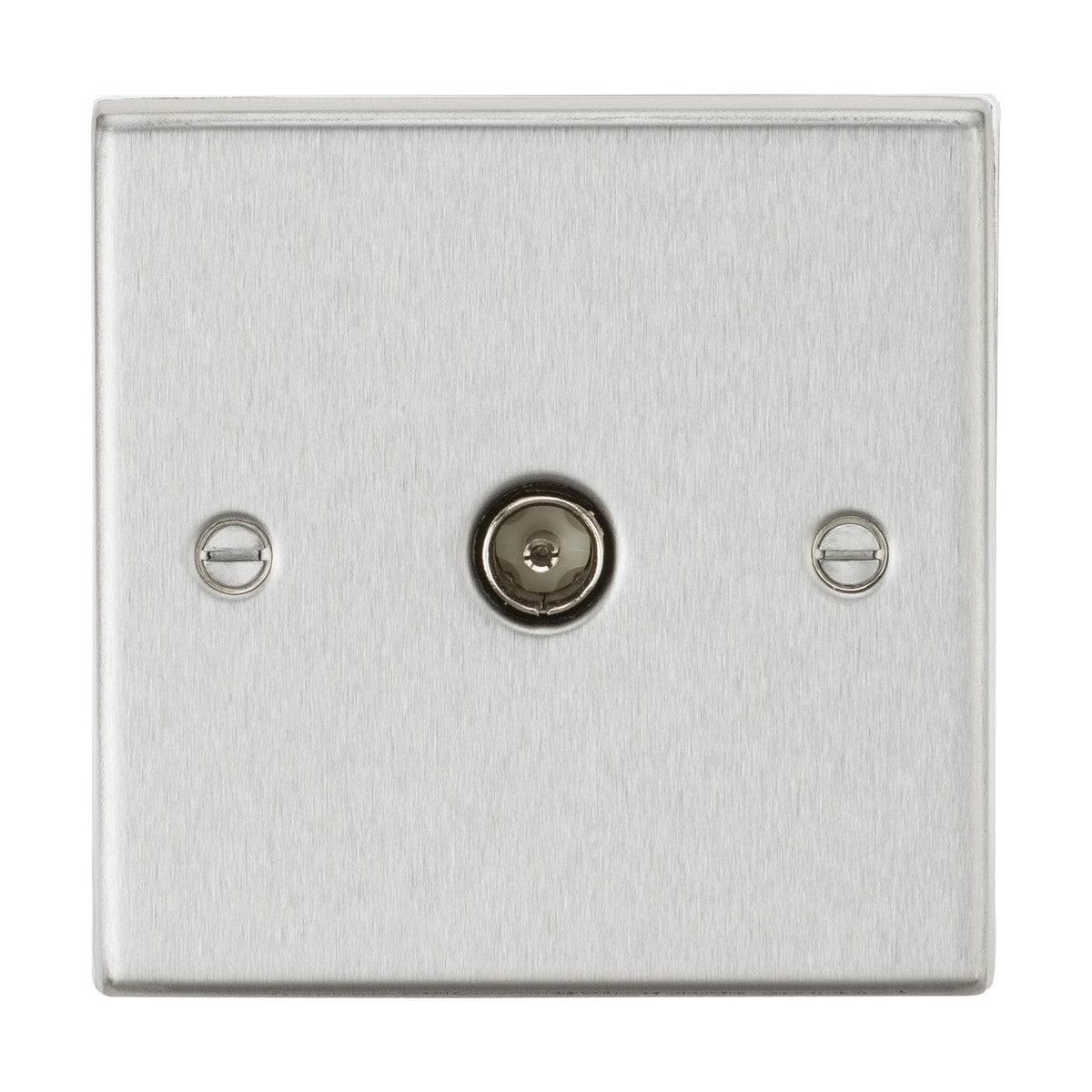

The Knightsbridge TV outlet provides a non-isolated female coaxial connection behind a brushed chrome square edge faceplate. The non-isolated design means the outlet connects directly to the incoming aerial or satellite signal without internal filtering or splitting, making it suitable for standard single-TV installations where signal strength is adequate and no distribution amplification is needed.

Designed for residential and light commercial installations, the outlet fits a standard 25mm minimum back box depth and uses a square edge metal plate with a built-in gasket that sits flush to the wall surface. The clamp and screw terminal at the rear secures the incoming coaxial cable without requiring specialist tools. The brushed chrome finish provides a cool metallic accent that pairs well with chrome switches, sockets and contemporary interiors.

The faceplate measures 89mm square with a 10.5mm projection from the wall once fitted, giving a low-profile presence that matches standard UK switch and socket dimensions. The premium-grade steel construction carries a 25-year warranty and is certified to BS 5733 for coaxial TV outlets. The IP20 rating makes this outlet suitable for dry interior locations but not bathrooms or outdoor use.

Specification
Height 89 mm
Width 89 mm
Projection 10.5 mm
Min. Mounting Box Depth 25mm
Construction Premium grade steel
Finish Brushed Chrome
IP Rating IP20
Earth Terminal No
TV Connection Type Female
Terminal Clamp & Screw Terminal
Warranty 25
Downloads

Product Specification Sheet

Product Manual

Frequently Asked

What is a non-isolated TV outlet?

A non-isolated outlet connects the incoming aerial or satellite signal directly to the outlet socket without internal filtering or splitting. This design is suitable for single-TV installations where the signal strength is adequate and no distribution amplification is needed. For multi-room installations or weak signal areas, an isolated outlet or distribution amplifier may be required.

What cable type does it accept?

The clamp and screw terminal accepts standard coaxial cable (typically RG6 or CT100). Strip the outer insulation and braid to expose the centre conductor, then secure using the clamp mechanism at the rear of the outlet.

Can this be used with satellite signals?

Yes. The female coaxial connection accepts both terrestrial TV aerial signals and satellite dish signals. The non-isolated design passes the signal through without modification, making it compatible with standard Freeview, Freesat and Sky installations.

What other finishes are available in this range?

Knightsbridge produces this square edge TV outlet in multiple finishes including polished chrome, brushed chrome, matt black, white and antique brass. Use the search function or filters to find other variants in stock at Niori.
