Description

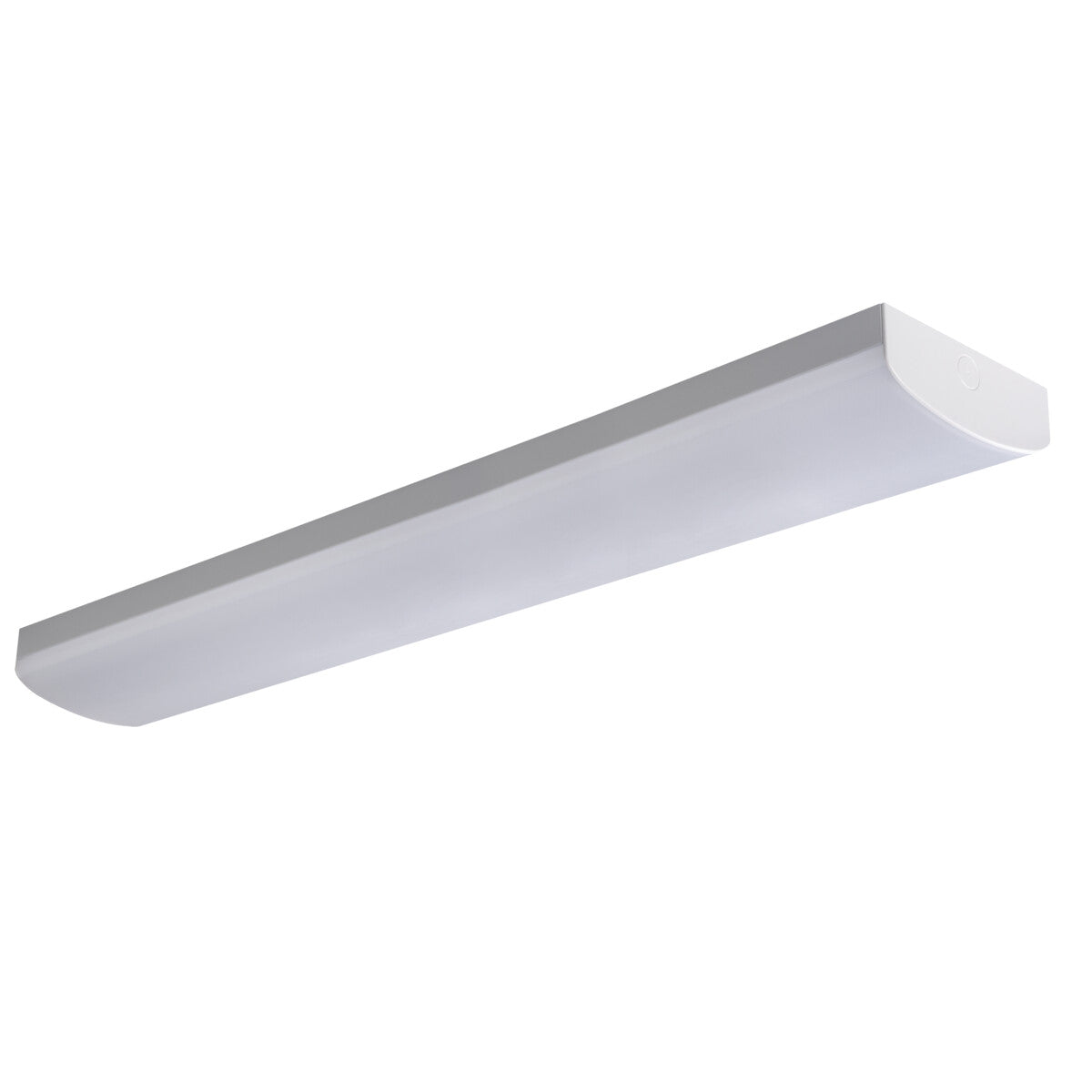

The MEBA LED batten is a 1200mm linear ceiling fitting that runs on 220 to 240V AC, with switchable output from 22 to 40W. At its higher setting it puts out up to 4400 lumens through a wide 120 degree spread, giving even, broad coverage rather than a tight pooled beam. Colour is selectable between 3000K warm white and 4000K neutral white, so the same fitting works for a softer or a crisper light depending on the room. Buyers in the US will recognise this format as an LED shop light or wraparound, the long bar-style fixture used for general overhead lighting across a wide area.
The wide 120 degree beam and steady lumen output suit kitchens, hallways, home offices, utility rooms and store rooms where you want clean, shadow-free light across the ceiling. At general lighting levels it covers around 8 to 15 m² depending on the selected wattage, so a single unit handles a small to mid-sized room and several can be mounted in a line down a longer space. With an IP20 rating it is for dry indoor settings only, so keep it clear of bathrooms, porches and any outdoor or damp location. Its 1200mm length sits well on standard ceiling heights and lends itself to runs along corridors or workshop bays.
The body is steel finished in white, fixed to the ceiling as a surface-mounted batten rather than recessed. It carries a 120 degree beam, a CRI of Ra 80 and a rated life of 50,000 hours, and at 1.86 kg it is light enough for straightforward overhead fixing. The selectable wattage and 3000K to 4000K colour switch are set at installation, and the fitting is not dimmable. The MEBA range includes further batten lengths and output options to match longer runs and larger spaces.
Specification
| Power |
22-40W |
| Voltage |
220-240 AC |
| Luminous flux |
2500(WW) 2700(NW) / 4200(WW) 4400(NW) lm |
| Colour temperature |
3000/4000K |
| Colour rendering (CRI) |
Ra 80 |
| Beam angle |
120° |
| IP rating |
IP20 |
| Dimmable |
No |
| Mounting |
Ceiling Mounted |
| Lifespan |
50,000 hours |
| Shape |
Rectangular |
| Dimensions |
1200 × 160 × 62 mm |
| Weight |
1.86 kg |
| Material |
Steel |
| Finish |
White |
Downloads
Frequently Asked
Where is this batten suitable for use?
It is rated IP20, which means dry indoor use only. It works well in kitchens, hallways, home offices, utility rooms and garages that stay dry. It should not be used in bathrooms, outdoors or anywhere exposed to damp or water.
Can several be linked together in a run?
The 1200mm length makes it well suited to mounting in a line along corridors, workshops or storage areas. Each unit wires to the mains independently and can be spaced evenly to cover a longer space. Plan the layout around the 120 degree beam so coverage overlaps without gaps.
How much light does it give and what area does it cover?
Output is selectable, reaching up to 4400 lumens at the 40W setting. At general lighting levels that covers roughly 8 to 15 m² depending on the wattage chosen. The wide 120 degree beam spreads the light evenly across the ceiling for shadow-free coverage.
How do I clean and maintain it?
Switch off at the mains and let the fitting cool before cleaning. Wipe the surface with a soft, dry or barely damp cloth to remove dust, and avoid harsh solvents or abrasive pads on the white finish. With a rated life of 50,000 hours the LED needs no bulb changes during normal service.
