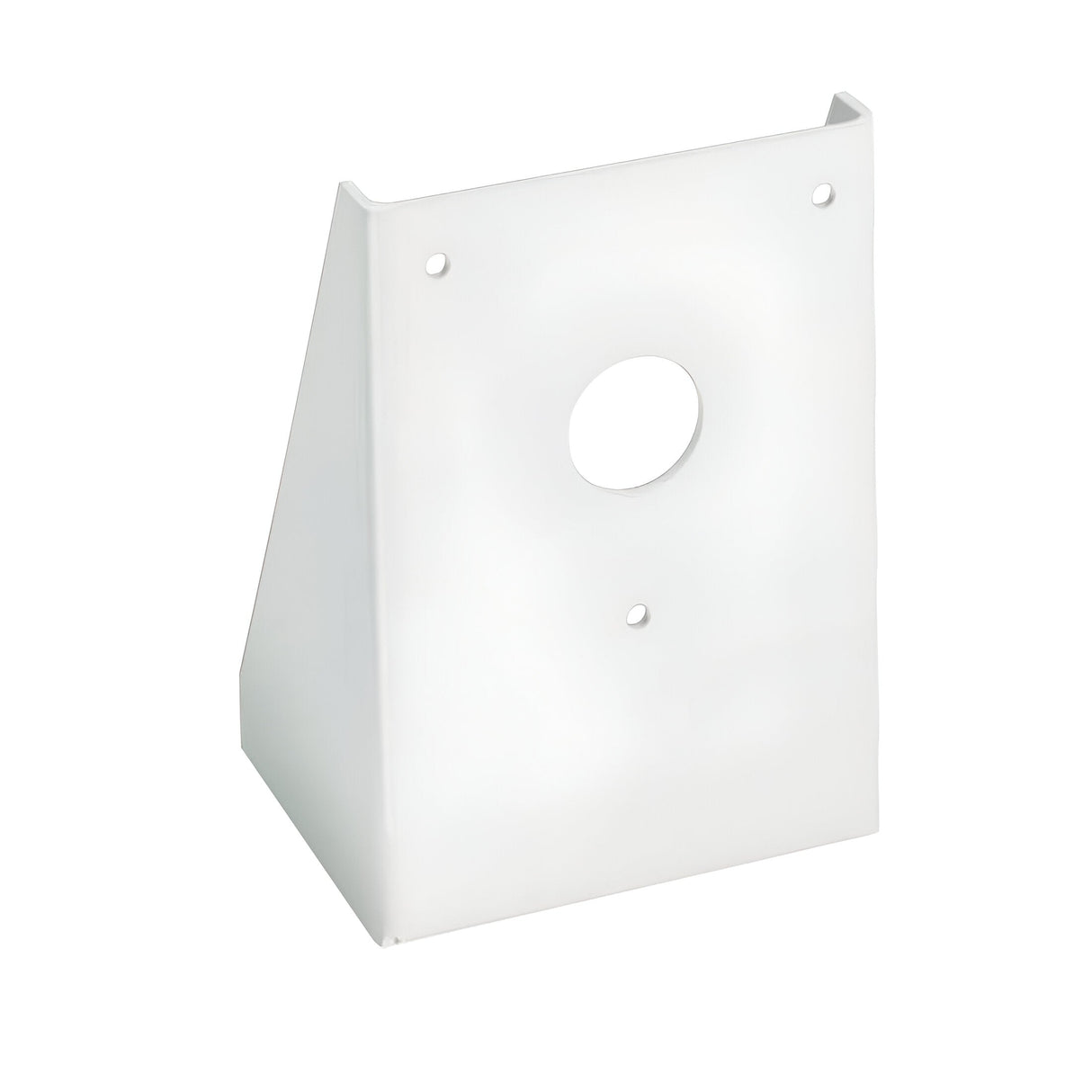

MAGfire Floor Mounting Bracket - White

The MAGfire floor mounting bracket is a white powder-coated steel support designed specifically for ESP's DR916-24 and DR916-240 emergency exit signs. The bracket positions the sign at floor level on a rear-angled stand, directing light and signage upwards and forwards to guide evacuation routes in low-visibility conditions.

Designed for commercial buildings, hotels, care homes and public spaces where wall or ceiling mounting is impractical, the bracket provides a stable floor-standing option for emergency exit signs. The angled profile ensures the sign face remains visible to people moving along corridors or stairwells at normal walking height. The bracket fixes to the rear of the sign using pre-drilled mounting holes and stands approximately 130mm tall once assembled.

The white powder-coat finish matches the typical housing colour of ESP MAGfire exit signs and resists scuffing in high-traffic areas. At 0.2kg net weight, the bracket adds minimal load to the sign assembly while providing a footprint stable enough for placement on carpet, vinyl and hard floors without additional fixings. The bracket ships flat-packed and assembles in minutes using the supplied fixings.

Product Specification Sheet

Which ESP signs is this bracket compatible with?

The bracket is designed for use with the DR916-24 and DR916-240 emergency exit signs from ESP's MAGfire range. It will not fit other sign models or brands without modification.

Does the bracket need to be fixed to the floor?

No. The bracket provides a free-standing base that relies on the combined weight of the bracket and sign for stability. In areas with very high footfall or where the bracket may be kicked, additional floor fixings can be added through the base if required.

What's in the box?

The bracket ships with the powder-coated steel frame and the fixings needed to attach it to the rear of a compatible DR916 sign. The emergency exit sign itself is sold separately.
