Description

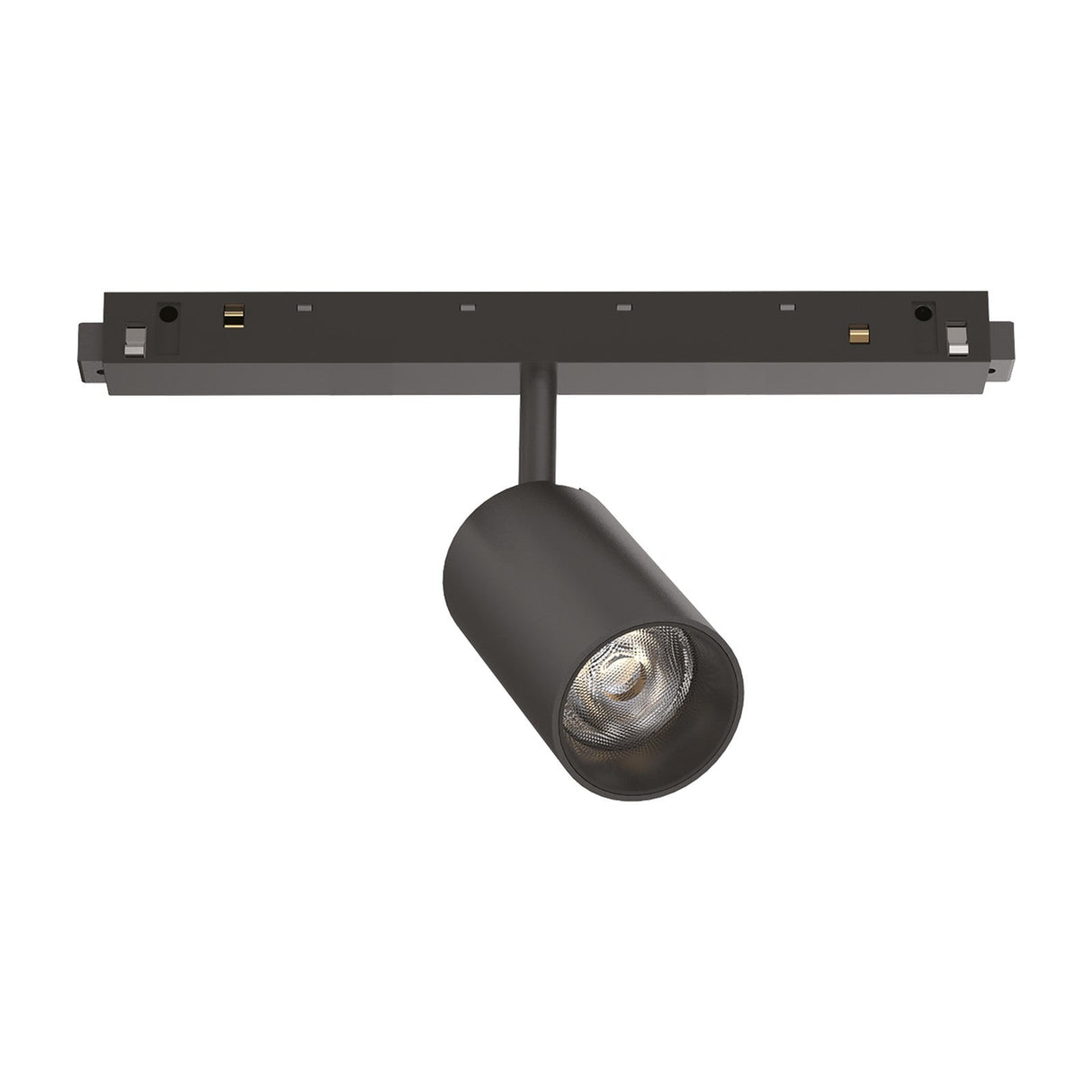

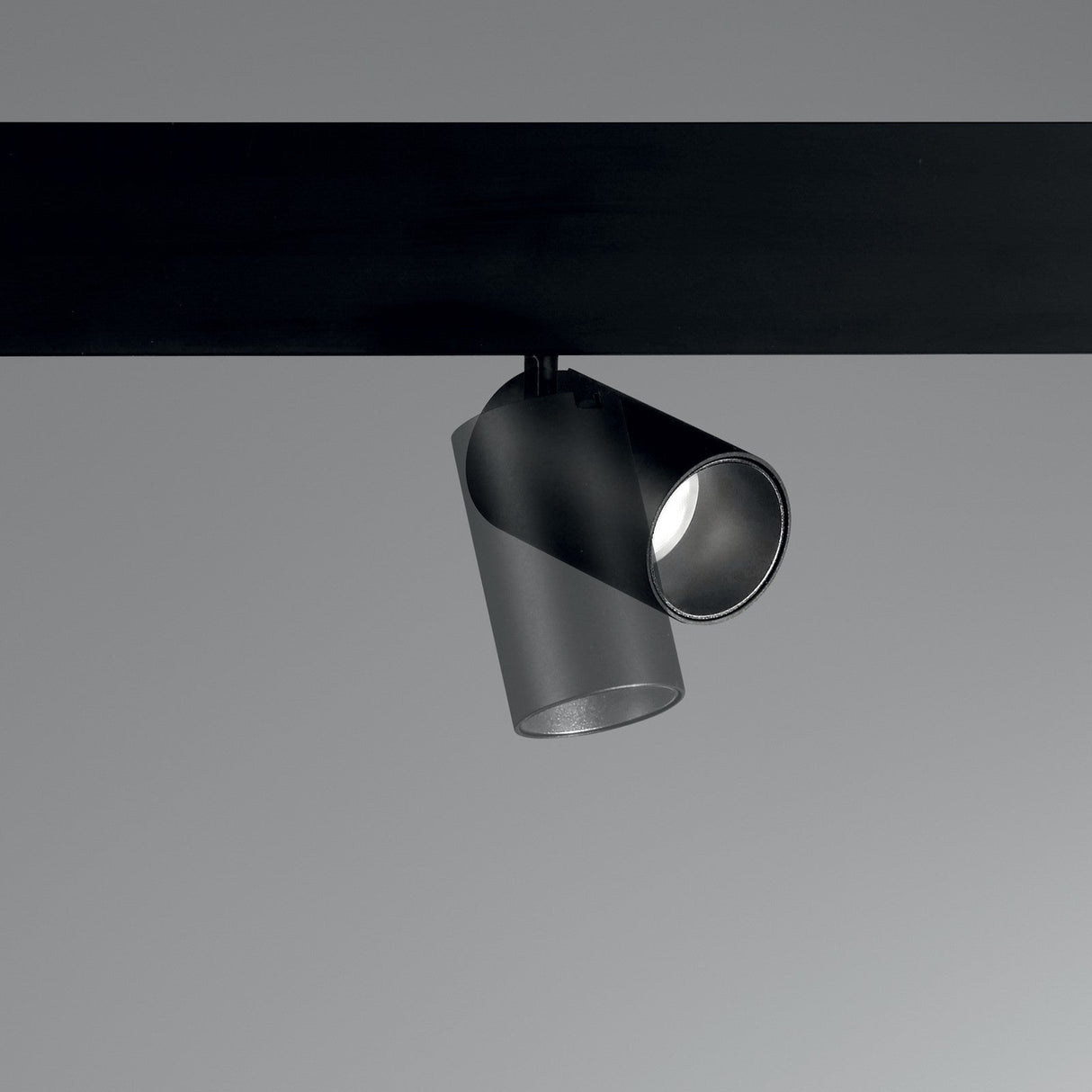

The Ego spot is an aimable head that clips onto the Ego 48V magnetic track and throws a single defined circle of light where you point it. The barrel tilts and rotates on the rail, so one head can pick out a picture, a product or a section of worktop, then follow it when the layout shifts. Its beam holds a tight 30 degrees, keeping the light contained on the target rather than spilling across the room. Lit, it reads as a clean warm pool; off, the compact matt black body sits low on the run.
The built-in LED draws 8W for around 700 lumens at a warm 2700K, with a colour rendering above 90 so timber, artwork and fabric keep their true tone under the beam. This is the DALI version: dimming and switching run over a DALI controller wired to the track, giving smooth level control across a line of heads. Because it lives on a magnetic track, several spots share one low-voltage line and each aim at a separate point, then reposition by hand whenever a hang changes, which suits retail, galleries and open-plan rooms set to a scene.
The head measures 223mm on its longest axis and stands 126mm tall on the track, in aluminium finished matt black to match the black Ego rail. The LED is integrated and included, rated for 50,000 hours, so there is no bulb to source or replace. Rated IP20, it is made for dry indoor rooms and holds to a live Ego 48V magnetic track magnetically, taking its supply through the rail. It needs the track plus a DALI-capable driver and controller, which we can supply alongside.
Specification
| Number of lights |
1 |
| Light source |
Integrated LED, 8W total (50,000h) |
| Colour temperature |
2700K (warm white) |
| Lumen output |
700lm |
| Colour rendering (CRI) |
> 90 |
| Beam angle |
30 degrees |
| Length |
223mm |
| Height |
126mm |
| Projection |
40mm |
| IP rating |
IP20 |
| Dimmable |
Yes, DALI |
| Control |
DALI, via track controller |
| Voltage |
48V DC (driver required) |
| Mounting |
Magnetic, for Ego 48V track |
| Adjustment |
Head tilts and rotates |
| Frame / Structure finish |
Matt black aluminium |
| Materials |
Aluminium body |
Downloads
Datasheet
Assembly Instructions
3D Model
Frequently Asked
What kind of light does the Ego spot give?
A single aimable beam at a tight 30 degrees, in a warm 2700K tone with a colour rendering above 90. The head draws 8W for about 700 lumens and tilts and rotates on the rail, so it picks out one picture or product rather than washing the room.
Does it come ready to light?
Yes. The LED is built in and included, rated at 8W and around 700 lumens with a 50,000 hour life, so there are no bulbs to buy. The head clips onto a live Ego 48V magnetic track, which carries the supply, and lights once seated.
Can it be dimmed?
Yes. This is the DALI version, so dimming and switching run over a DALI controller wired to the Ego track rather than a switch on the head, giving smooth level control across several spots at once and grouping them into scenes.
What does it need to run?
The Ego 48V magnetic track plus a DALI-capable driver and controller, not a mains ceiling point. The head locks onto the rail and can be slid and re-aimed later, so we can supply the track, feeds and control gear.
