Description

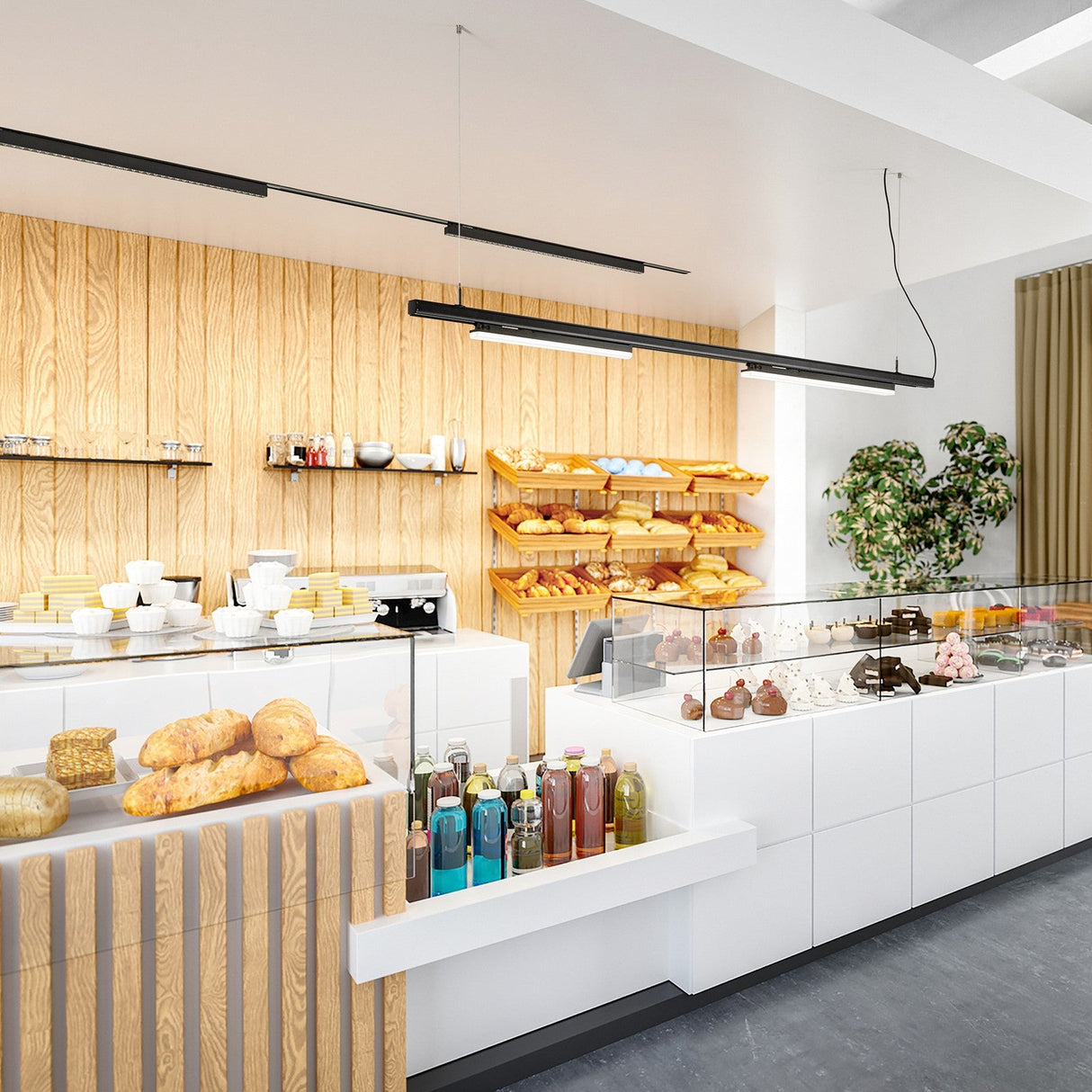

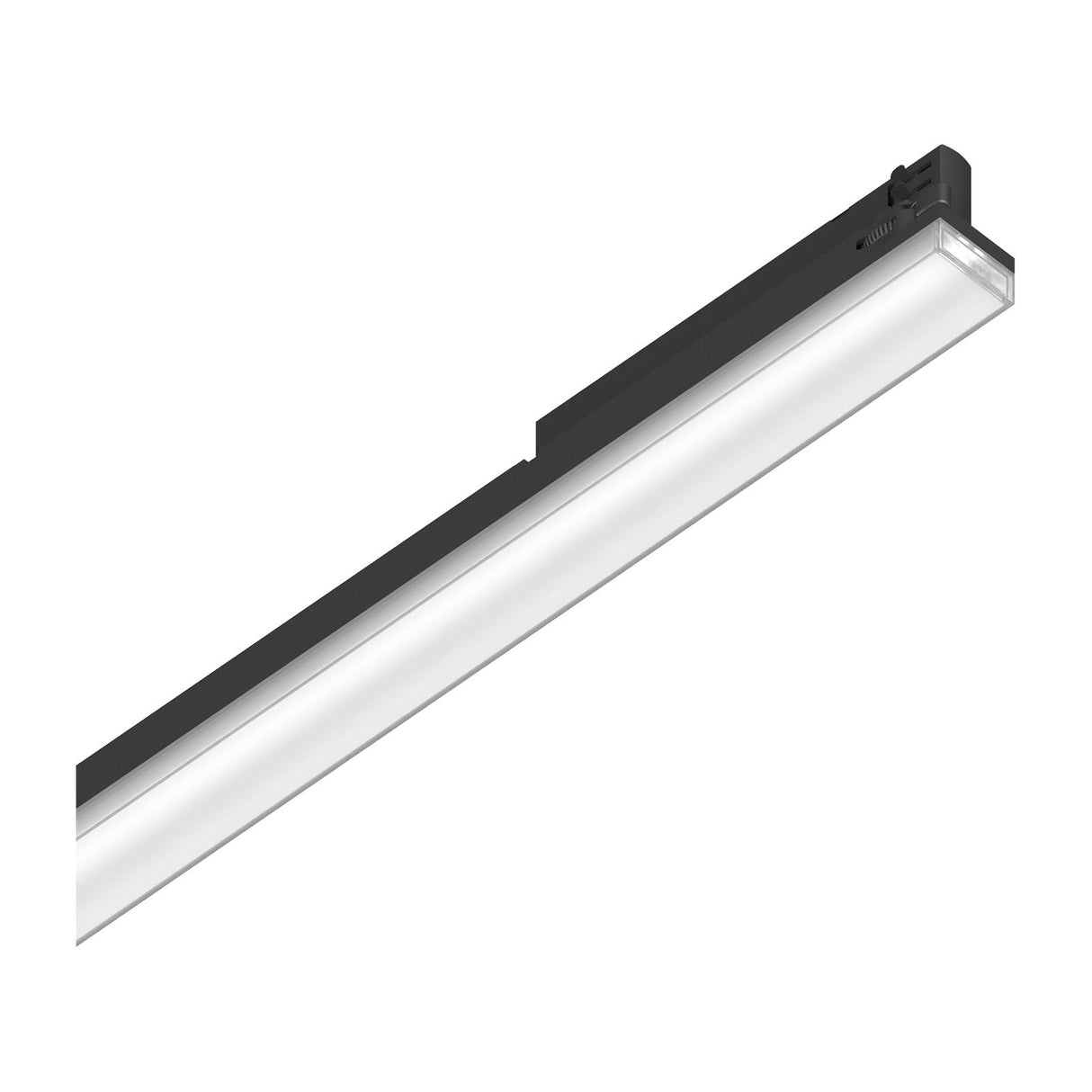

The Display Wide 1125mm is the longer diffuse module in the range, clipping onto a magnetic track and running a frosted lens the full length of its body. It spreads light broadly through a 125 degree optic, so a single unit covers a wide span with a soft, even sheet rather than a directed beam. Mounted, it reads as a slim 1125mm bar just 32mm wide and 73mm deep; lit, it lays a gentle wash down a long wall, across a ceiling plane or over an open-plan zone with no hard edge.
Output comes from a built-in LED module giving 5900 lumens at 3000K warm white, drawing 38W with a colour rendering above 90 so surfaces and furnishings hold their colour. The higher output and longer body suit a larger room, a wide feature wall or a run of open-plan space where one module does the work of two shorter ones. It can share a profile with tighter Display heads, so a single track carries both broad fill and aimed accents.
The body is coated aluminium in matt black to match a black magnetic track. The LED is integrated and included, rated for 50,000 hours, so there is no lamp to fit. Dimming is DALI with the driver built in, and it is rated IP20 for dry indoor rooms. Power is drawn from the track, so the Link 3-phase 1-10V/DALI profile it mounts on is ordered separately.
Specification
| Number of lights |
Linear / continuous |
| Light source |
Integrated LED, 38W total (5900lm, 50,000h) |
| Colour temperature |
3000K (warm white) |
| Lumen output |
5900lm (4330lm useful) |
| Colour rendering (CRI) |
> 90 |
| Beam angle |
125 degrees (diffuse) |
| Length |
1125mm |
| Width |
32mm |
| Height |
73mm |
| IP rating |
IP20 (indoor) |
| Dimmable |
Yes, DALI |
| Power system |
Magnetic track, in-built driver (Link 3-phase 1-10V/DALI profile sold separately) |
| Frame / Structure finish |
Matt black aluminium |
| Materials |
Coated aluminium body |
Downloads
Datasheet
Assembly Instructions
3D Model
Frequently Asked
What kind of light does the Display Wide 1125mm give?
A soft, broad wash. A full-length frosted lens spreads a 125 degree diffuse beam at 5900 lumens and 3000K warm white, so one unit covers a wide span gently rather than aiming a spot. Colour rendering is above 90, so surfaces keep their true colour.
How does it differ from the shorter Wide module?
This is the 1125mm version at 38W and 5900 lumens, against the 565mm module at 19W. Both spread the same 125 degree diffuse wash, but the longer bar covers a wider span, so it suits a large wall or an open-plan run where one unit replaces two.
Does it come ready to light, and can it be dimmed?
The LED and driver are built in and included, rated at 38W with a 50,000 hour life, so there is no bulb to buy. It dims over DALI through a controller or system, in step with other heads on the same track.
Is the track included, and how big is it?
The bar is 1125mm long, 32mm wide and 73mm deep. The magnetic track profile is a separate accessory (Link 3-phase 1-10V/DALI), so the module is added to a track ordered for the run. In matt black it suits a large wall or open-plan zone.
