Description

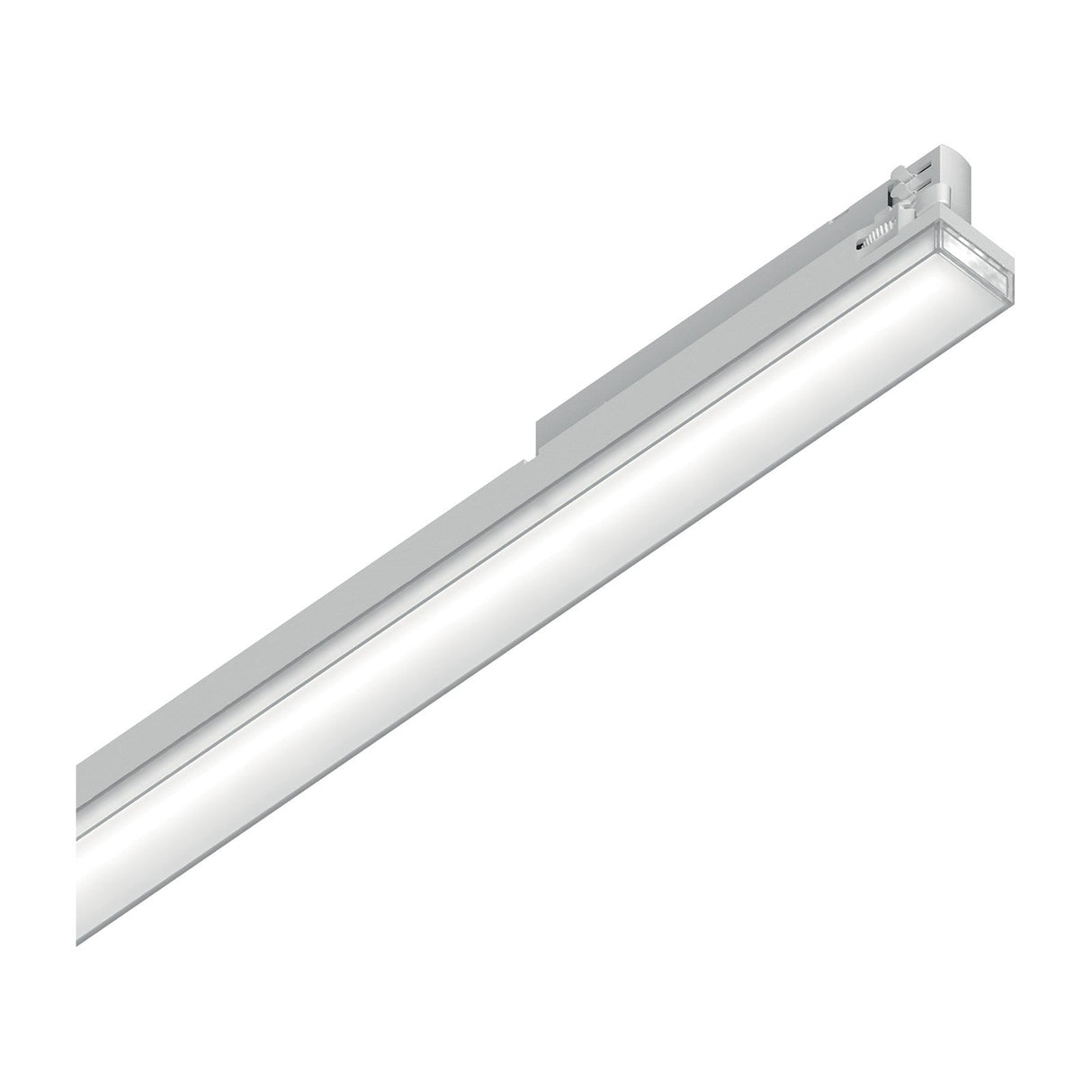

The Display Wide is a short linear module that clips onto a magnetic track and carries a frosted lens along its face. Instead of aiming a tight beam like the Accent, it spreads light broadly through a 125 degree diffuse optic, so it fills an area rather than picking out one object. Fitted, it reads as a neat 565mm bar just 32mm wide and 62mm deep; lit, it lays a soft, even sheet of light across a wall, a ceiling plane or a seating area with no hard edge.

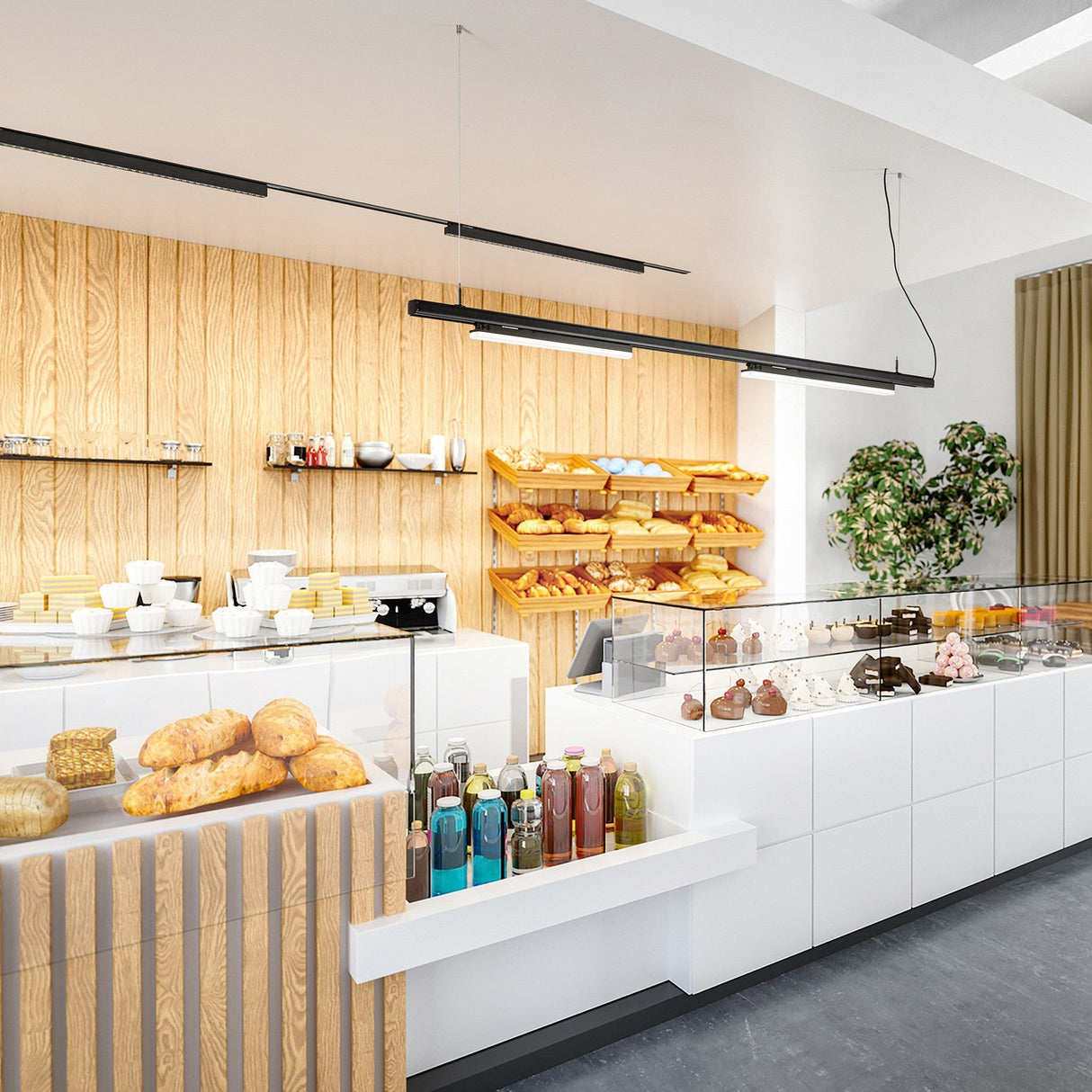

This module runs at 4000K, a neutral white that keeps whites clean and detail crisp, giving 3100 lumens from 19W with a rendering index above 90 so surfaces look accurate. The broad diffuse spread makes it a general layer rather than an accent, useful over an open-plan corner, a workspace or a hallway where gentle fill is wanted from a slim fitting. Several modules can run along one profile to widen the wash, mixed with tighter heads for accents.
The body is coated aluminium in matt white, made to sit quietly against a pale ceiling and a white magnetic track. The LED is integrated and included, rated for 50,000 hours, so there is no lamp to fit. Dimming is DALI with the driver built in, and it is rated IP20 for dry indoor rooms. Power is drawn from the track, so the Link 3-phase 1-10V/DALI profile it mounts on is ordered separately.
Specification
| Number of lights |
Linear / continuous |
| Light source |
Integrated LED, 19W total (3100lm, 50,000h) |
| Colour temperature |
4000K (neutral white) |
| Lumen output |
3100lm (2300lm useful) |
| Colour rendering (CRI) |
> 90 |
| Beam angle |
125 degrees (diffuse) |
| Length |
565mm |
| Width |
32mm |
| Height |
62mm |
| IP rating |
IP20 (indoor) |
| Dimmable |
Yes, DALI |
| Power system |
Magnetic track, in-built driver (Link 3-phase 1-10V/DALI profile sold separately) |
| Frame / Structure finish |
Matt white aluminium |
| Materials |
Coated aluminium body |
Downloads
Datasheet
Assembly Instructions
3D Model
Frequently Asked
What kind of light does the Display Wide give?
A soft, broad wash in neutral white. A frosted lens spreads a 125 degree diffuse beam at 3100 lumens and 4000K, so it fills an area gently rather than aiming a spot. Colour rendering is above 90, so surfaces keep their true colour.
How does it differ from the Display Accent?
The Accent throws a tight 48 degree beam to pick out art or shelving; this Wide module spreads a 125 degree diffuse wash for general fill. Choose it where you want an even layer over a wall or a work area rather than a directed accent.
Does it arrive ready to light, and can it be dimmed?
The LED and driver are built in and included, rated at 19W with a 50,000 hour life, so there is no bulb to buy. It dims over DALI through a controller or system, in step with other heads on the same track.
Is the track supplied, and how big is it?
The bar is 565mm long, 32mm wide and 62mm deep. The magnetic track profile is a separate accessory (Link 3-phase 1-10V/DALI), so the module joins a track ordered for the run. In matt white it suits an open-plan corner, hallway or workspace.
