Brillia 3-Phase Trimless T-Connector Track Left - Dimmable 1-10V White

£5099
RRP £7200
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

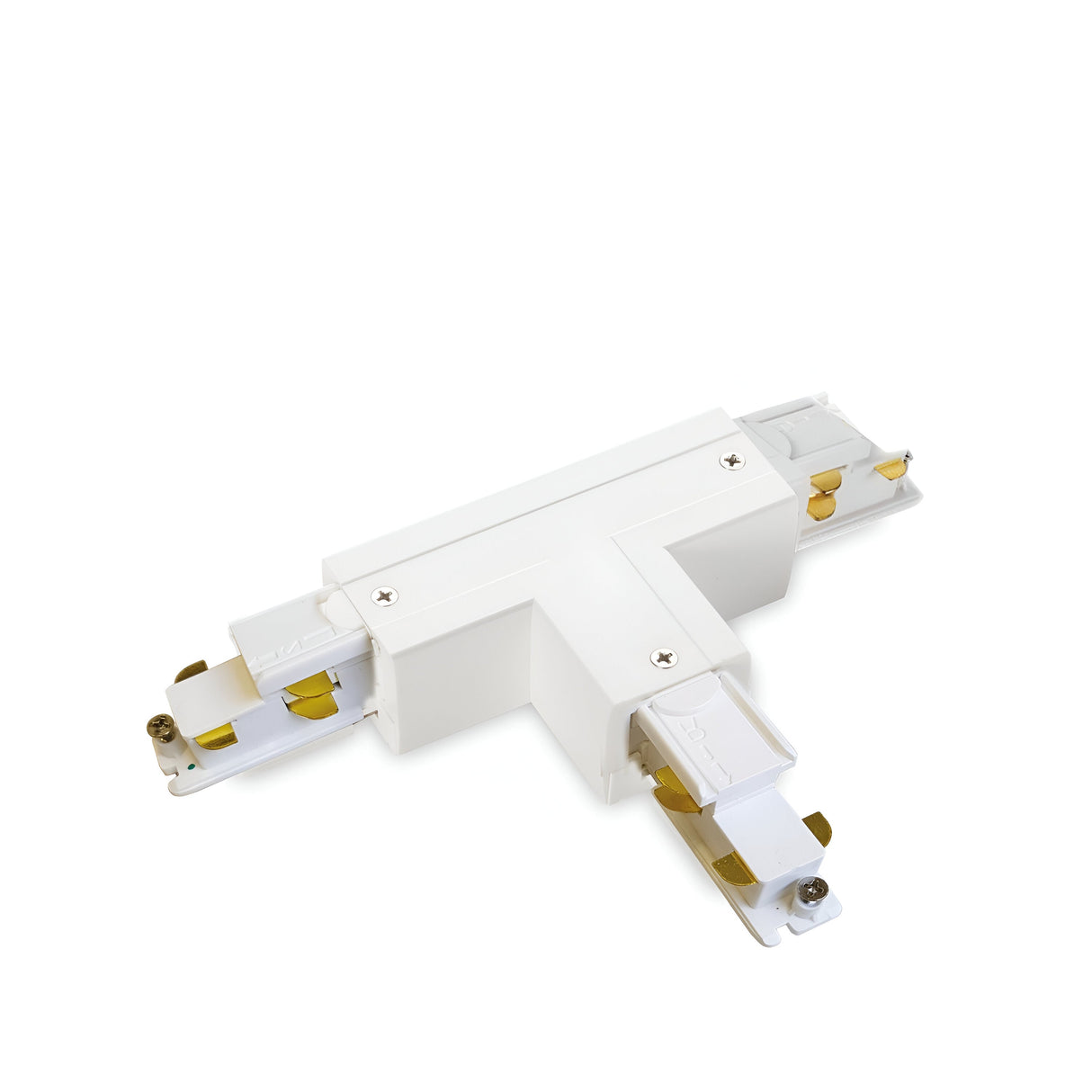

The Brillia 3-phase trimless T-connector joins three track arms at a 90-degree junction in recessed track lighting systems, with the left arm orientated perpendicular to the main run. Moulded from white plastic, the connector measures 203mm along the main run and projects 119mm on the left branch, carrying three-phase power through all three arms to support multiple track spots on independent circuits.

Designed for retail, gallery, office and residential installations where track runs need to change direction or split into branches, the trimless profile sits flush with the ceiling once the track is recessed into a ceiling cavity. The 1-10V dimming compatibility allows lighting levels across the connected track arms to be controlled from a compatible low-voltage control system, enabling zoned dimming where different track sections can be set to different intensities.

The white finish integrates into white or light-coloured ceilings without visual interruption once installed. The three-phase circuit design means track spots can be distributed across three separate circuits within the same track run, preventing overload and allowing more granular control over which fixtures are powered. The IP20 rating limits use to dry indoor environments — not suitable for bathrooms, wet rooms or outdoor canopies.

The connector is part of the Brillia trimless track system from Ideal Lux and pairs with Brillia track sections, end caps, power feeds and compatible track spots. Installation requires recessing the track into the ceiling void with sufficient clearance above for wiring connections.

Specification
Length (mm) 203
Projection (mm) 119
Dimmable Yes
IP Rating IP20
Warranty 5 Years
Frequently Asked

What does 'left' orientation mean?

The left designation refers to the direction of the perpendicular branch when looking along the main track run. The T-connector has one straight-through arm and one branch that exits at 90 degrees to the left side. A 'right' version is also available where the branch exits to the right.

Is this compatible with single-phase track systems?

No. This connector is designed specifically for 3-phase track systems where three separate circuits run through the track. It will not connect to single-phase or two-phase track profiles.

What does trimless mean?

Trimless track sits recessed into the ceiling with no visible trim or flange below the ceiling plane. The track and connector are installed flush with the plasterboard surface, giving a minimalist finish where only the track slot and mounted spots are visible.

Can this be used in a bathroom?

No. The IP20 rating means the connector is only suitable for dry indoor locations. Bathrooms, wet rooms and outdoor installations require higher IP-rated components.
