Adastra UA30 Compact 5-Channel 100V Mixer-Amplifier

£12999
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

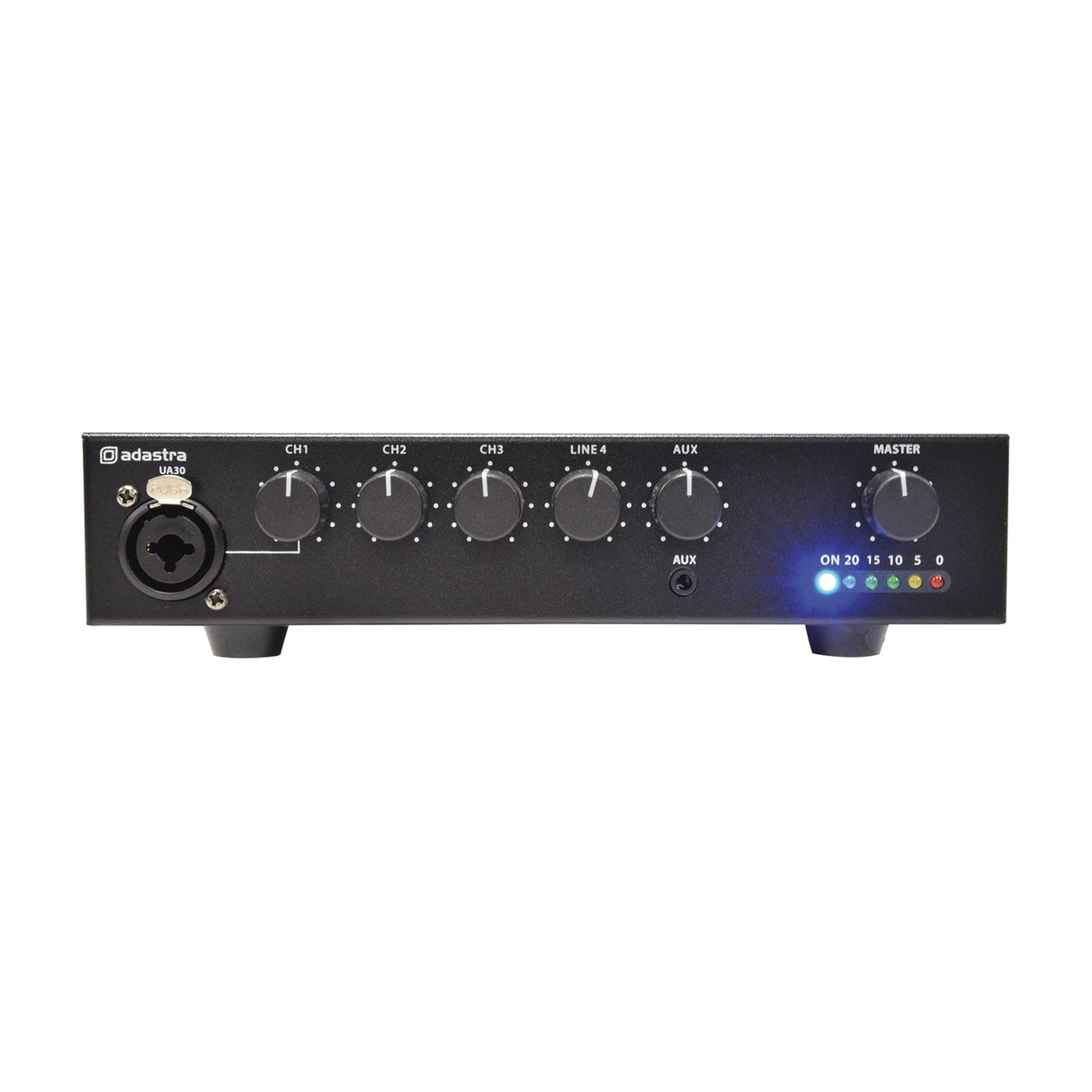

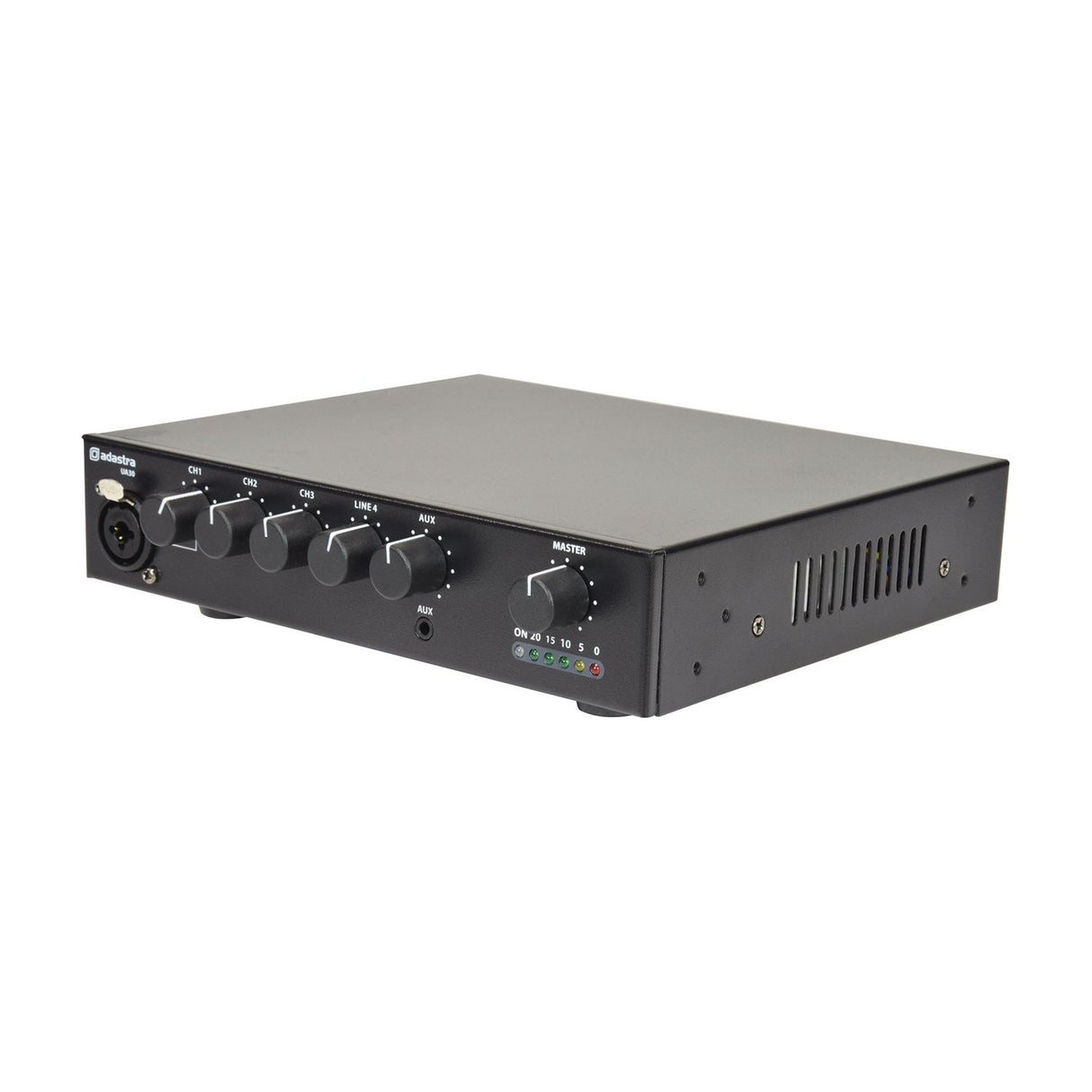

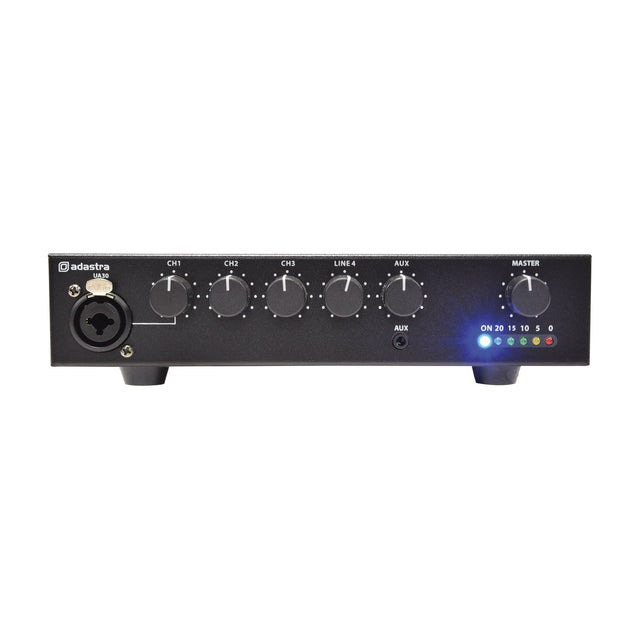

The Adastra UA30 is a compact 100V line mixer-amplifier built into a half width 1U housing, giving you a five-input mixer and power amp in one unit. It handles three switchable mic/line inputs, an RCA line input and a 3.5mm aux input, each with its own front panel volume control alongside a master output control. The mono output feeds either a 100V line system or an 8 ohm speaker load, connected through a removable screw terminal (Euroblock) connector on the rear panel. It is a practical choice for small to medium PA installations such as shops, offices and background music setups.

Channel one includes switchable +20V phantom power, available via XLR or the rear terminals, so you can run condenser microphones without a separate supply. The amplifier uses a Class D output stage with a transformer for the 100V line, and quoted total harmonic distortion (THD) sits below 0.4% at 1kHz. Frequency response runs from 100Hz to 18kHz, with input sensitivity of -10dB on line and -45dB on mic, and a signal to noise ratio (SNR) of 80dB line and 75dB mic. Input impedance on the mic/line channels is 1k ohms.

For safety systems, the UA30 has 24V relay mute contacts that let a fire alarm interrupt the audio when triggered. Adastra supplies rack-mounting hardware in the box, and it can be configured to fit two units side by side in a rack, or to mount a single unit against a wall or under a worktop. The larger 120W and 240W models in the UA range add a global 2-band EQ, while the UA30 keeps things simple for smaller jobs where a straightforward mixer amp is all you need.

Specification
Output power : rms 30W
Weight 2.35KG
Dimensions 249mm x 210mm x 44mm
Power supply 170-264Vac, 50Hz (IEC)
Amplifier : construction Class D + transformer output
Inputs Mic/line (combo), 2 x mic/line (6.3mm), line (RCA), aux (3.5mm)
Phantom power +20V CH1 (XLR or rear terminals)
Line output 2 x RCA (mono)

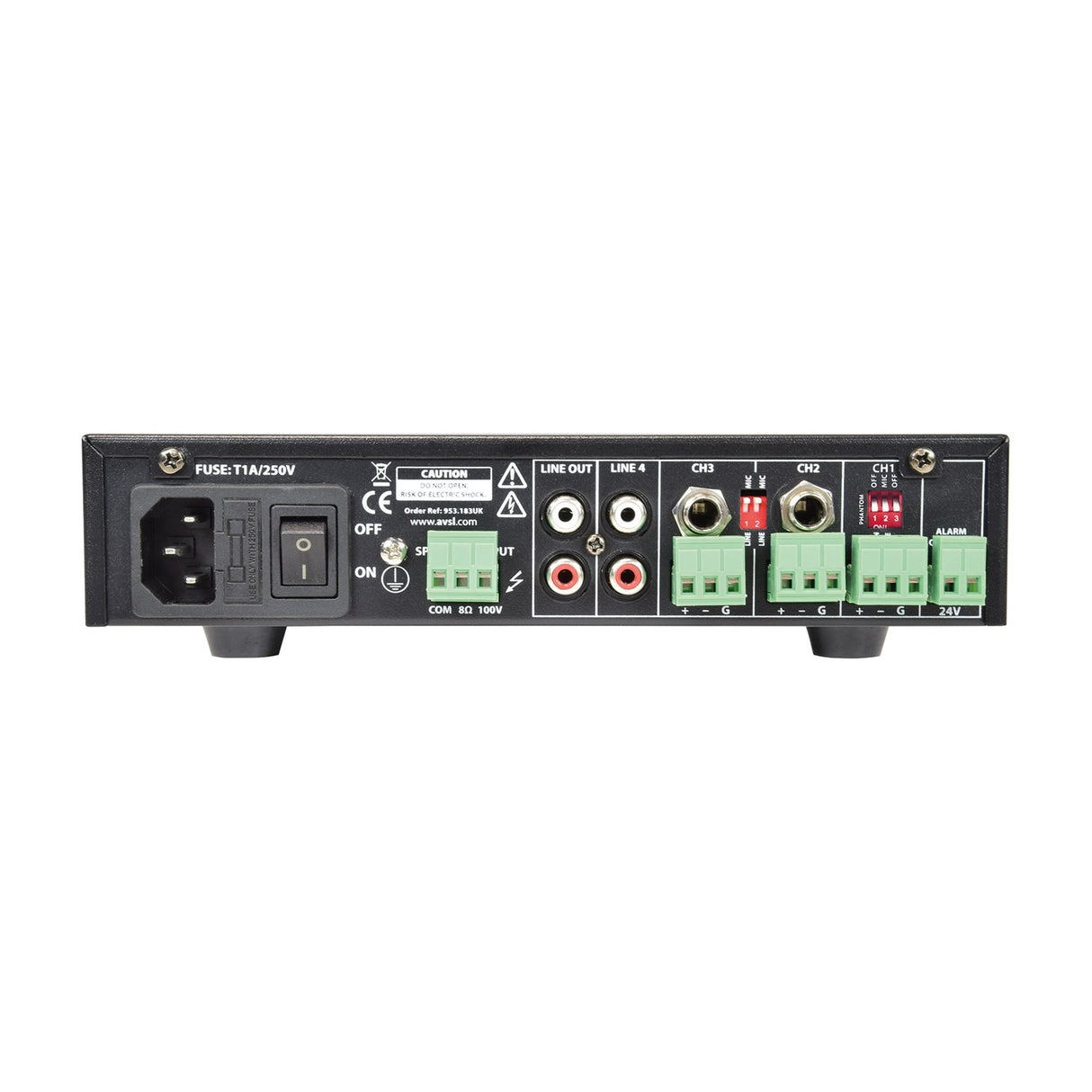

Speaker output Euroblock terminals: 100V / 8 Ohm or 2 Ohm / Com
Mute 24V relay contacts
THD <0.4% @ 1kHz
Input impedance 1k Ohm (mic/line)
Input sensitivity -10dB (line), -45dB (mic)
SNR 80dB (line), 75dB (mic)
Frequency response 100Hz - 18kHz
Downloads

Product Manual

Frequently Asked

Can the UA30 drive 100V line speakers?

Yes. The mono output can run either a 100V line system or an 8 ohm speaker load, connected through the removable Euroblock screw terminal on the rear panel.

How many inputs does it have?

Five. There are three switchable mic/line inputs, one RCA line input and one 3.5mm aux input, each with its own front panel volume control plus a master output control.

Does it support phantom power for condenser mics?

Channel one has switchable +20V phantom power, available via XLR or the rear terminals, so you can use condenser microphones without an external supply.

Can I connect it to a fire alarm system?

Yes. It includes 24V relay mute contacts that let a fire alarm signal interrupt the audio output when triggered.

How is the UA30 mounted?

It ships with rack-mounting hardware that fits two units side by side in a rack, or mounts a single unit against a wall or under a worktop.

Does the UA30 have tone controls?

No. The global 2-band EQ is fitted on the larger 120W and 240W models in the range. The UA30 keeps the controls simple for smaller installations.
