Adastra UA240 Compact 5-Channel 100V Mixer-Amplifier

£26999
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

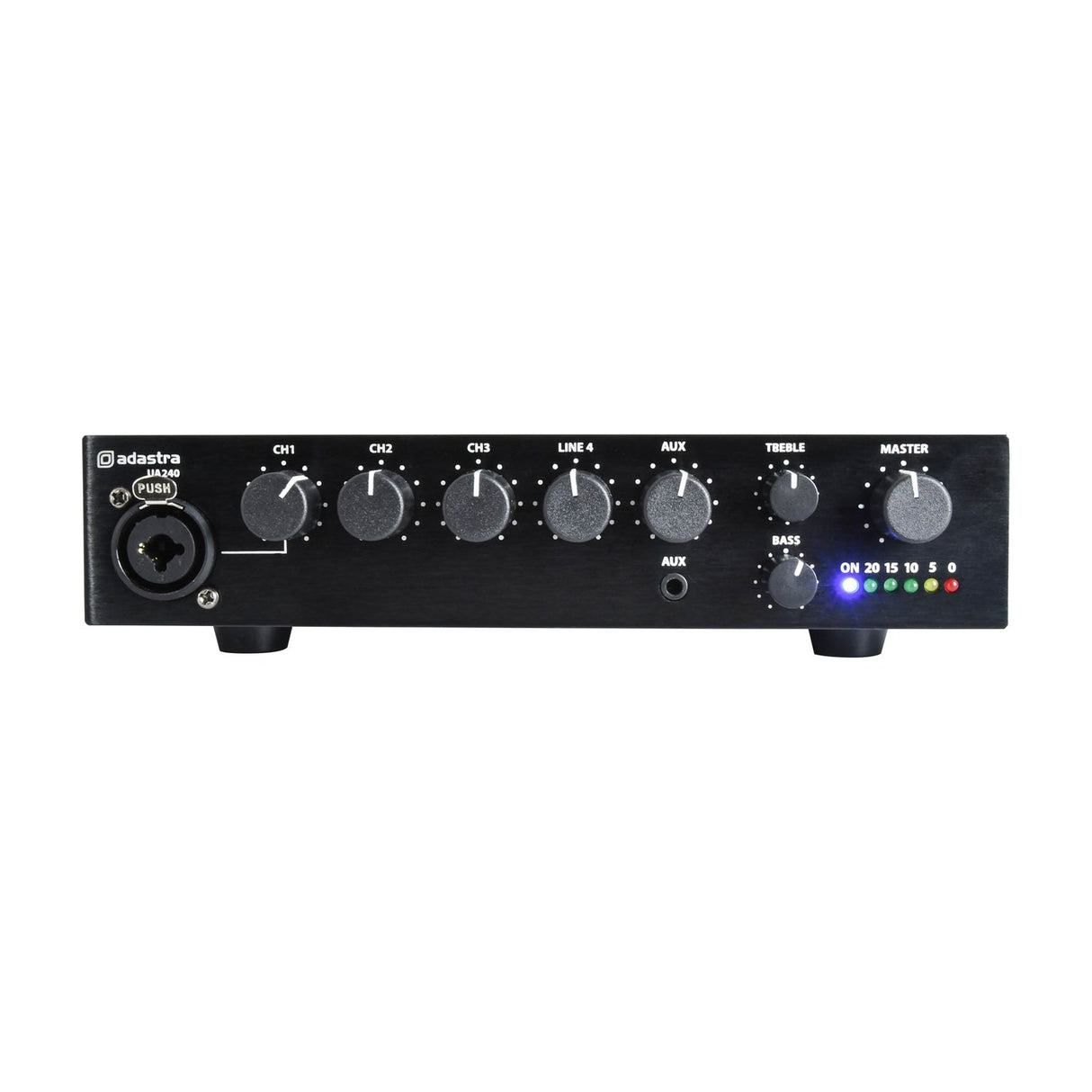

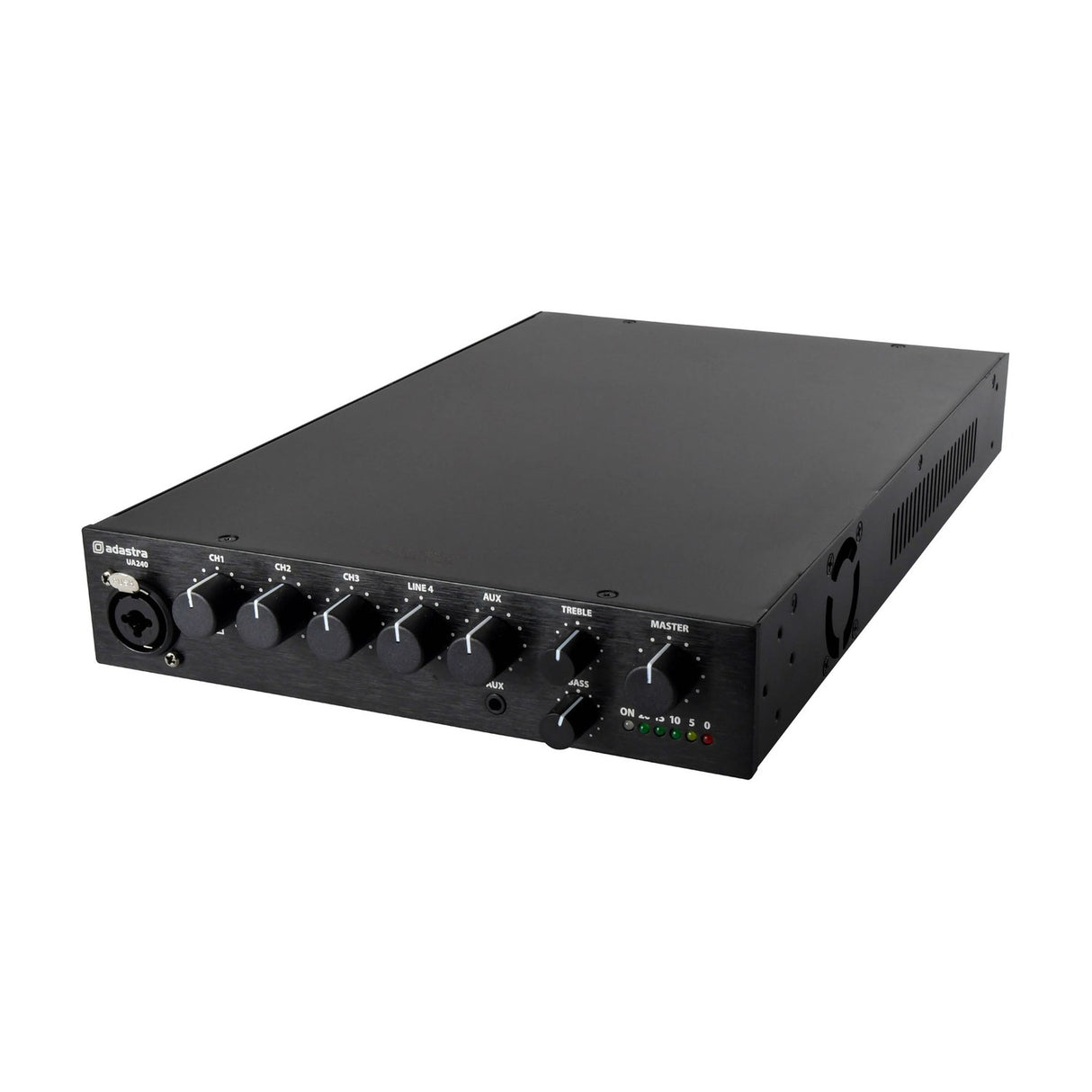

The Adastra UA240 is a compact 100V mixer-amplifier that packs a 5-input mixer into a half-width 1U housing. It gives you three switchable mic/line inputs, an RCA line input and a 3.5mm aux input, each with its own front panel volume control alongside a master output control. That makes it a practical choice for small to medium PA installations where you need to blend a few sources without taking up much rack space.

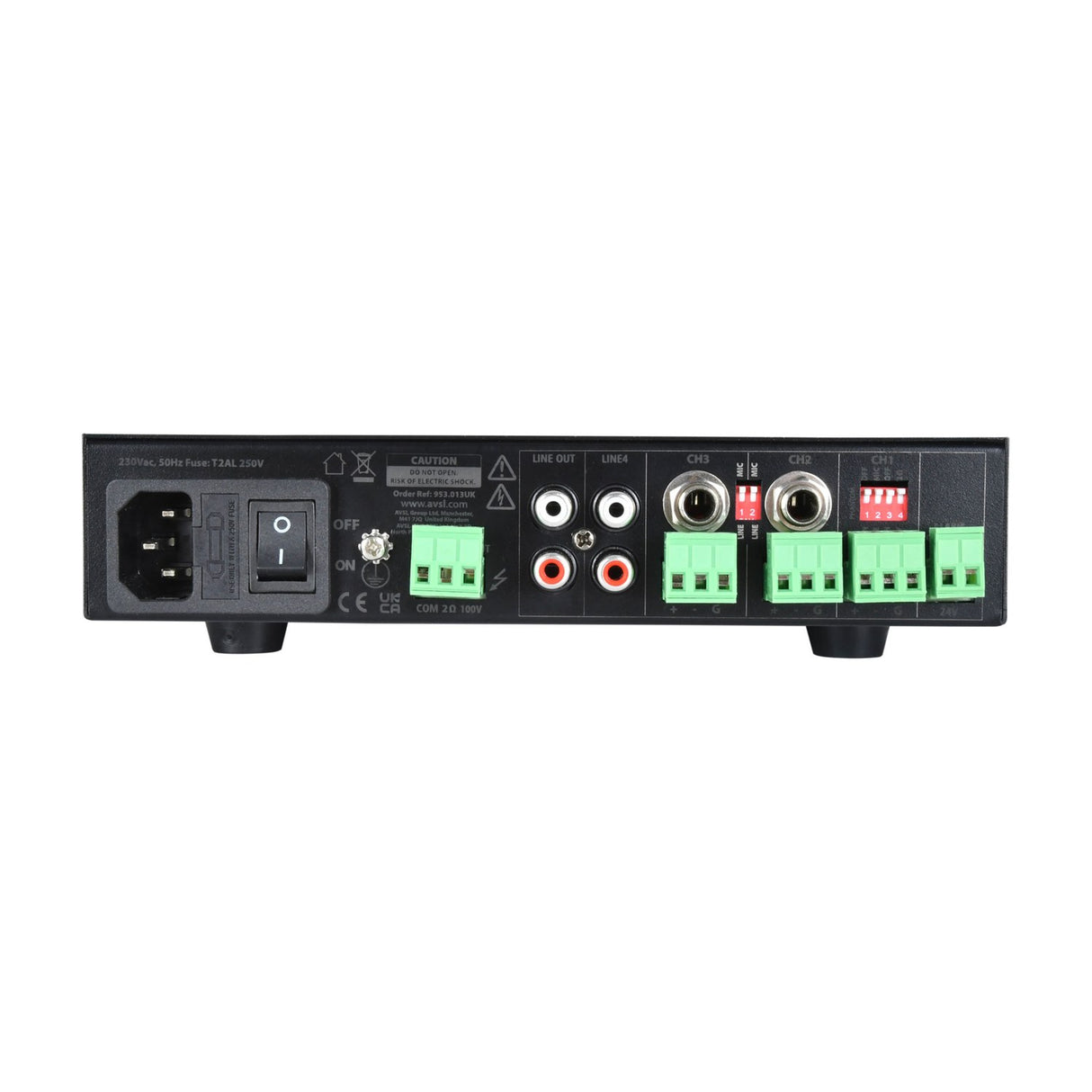

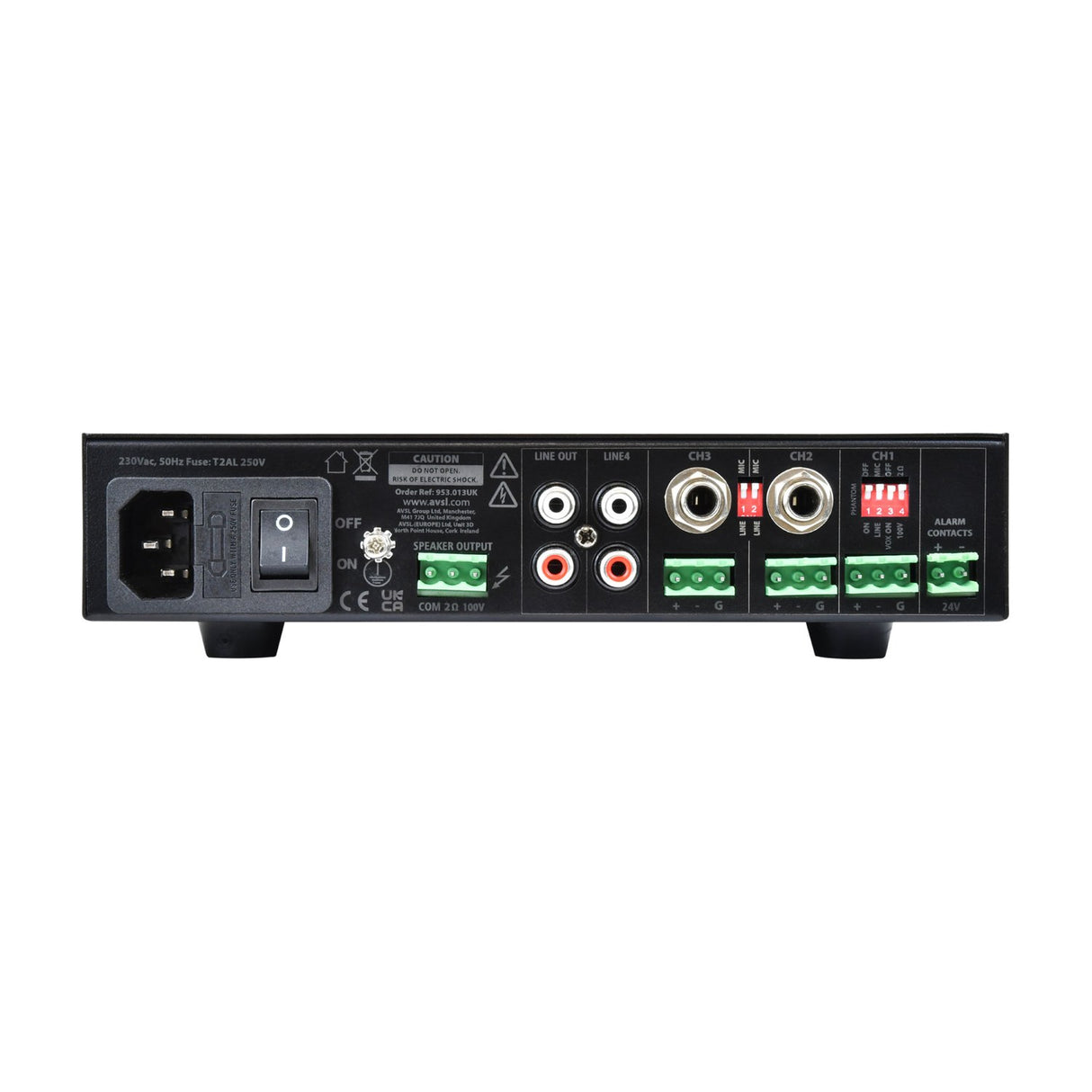

Output runs to either a 100V line or an 8 ohm speaker load via a removable screw terminal (Euroblock) connector on the rear panel, so it suits both distributed 100V systems and standard low impedance setups. The amplifier uses a Class D design with a transformer output, and there's a global 2-band EQ to shape the overall sound. Channel 1 offers switchable +20V phantom power for condenser microphones, available on the XLR or the rear terminals. Twenty-four volt fire alarm mute contacts let the amp drop its output when triggered by an alarm system.

The UA240 comes with rack-mounting hardware that can be set up two ways: mount two units side by side in a standard rack, or fix a single unit flat against a wall or under a worktop. Rated performance includes THD below 0.4% at 1kHz, a signal to noise ratio of 80dB on line inputs, and a frequency response of 100Hz to 18kHz. Input sensitivity sits at -10dB for line and -45dB for mic, with a 1k ohm input impedance on the mic/line channels. It's a straightforward, flexible amp for background music, paging and general announcements.

Specification
Output power : rms 240W
Weight 3.17KG
Dimensions 350mm x 210mm x 44mm
Power supply 230Vac, 50Hz (IEC)
Amplifier : construction Class D + transformer output
Inputs Mic/line (combo), 2 x mic/line (6.3mm), line (RCA), aux (3.5mm)
Phantom power +20V CH1 (XLR or rear terminals)
Line output 2 x RCA (mono)
Speaker output Euroblock terminals: 100V / 8 Ohm or 2 Ohm / Com
Mute 24V relay contacts
THD <0.4% @ 1kHz
Input impedance 1k Ohm (mic/line)
Input sensitivity -10dB (line), -45dB (mic)
SNR 80dB (line), 75dB (mic)
Frequency response 100Hz - 18kHz
Downloads

Product Manual

Frequently Asked

Does the UA240 work with 100V line speakers?

Yes. The output connects to either a 100V line or an 8 ohm low impedance speaker load through the removable screw terminal connector on the rear panel.

How many inputs does it have?

Five in total: three switchable mic/line inputs, one RCA line input and one 3.5mm aux input, each with its own front panel volume control.

Can I connect a condenser microphone?

Yes. Channel 1 provides switchable +20V phantom power, available on the XLR input or the rear terminals, which powers a condenser microphone.

Does it support fire alarm muting?

It does. The amp includes 24V relay mute contacts, so its output can be muted automatically when triggered by a fire alarm system.

How do I mount the UA240?

It ships with rack-mounting hardware. You can rack two units side by side, or mount a single unit flat against a wall or under a worktop.

Is there tone control on board?

Yes. A global 2-band EQ lets you adjust the overall sound across all channels on the 120W and 240W models.
