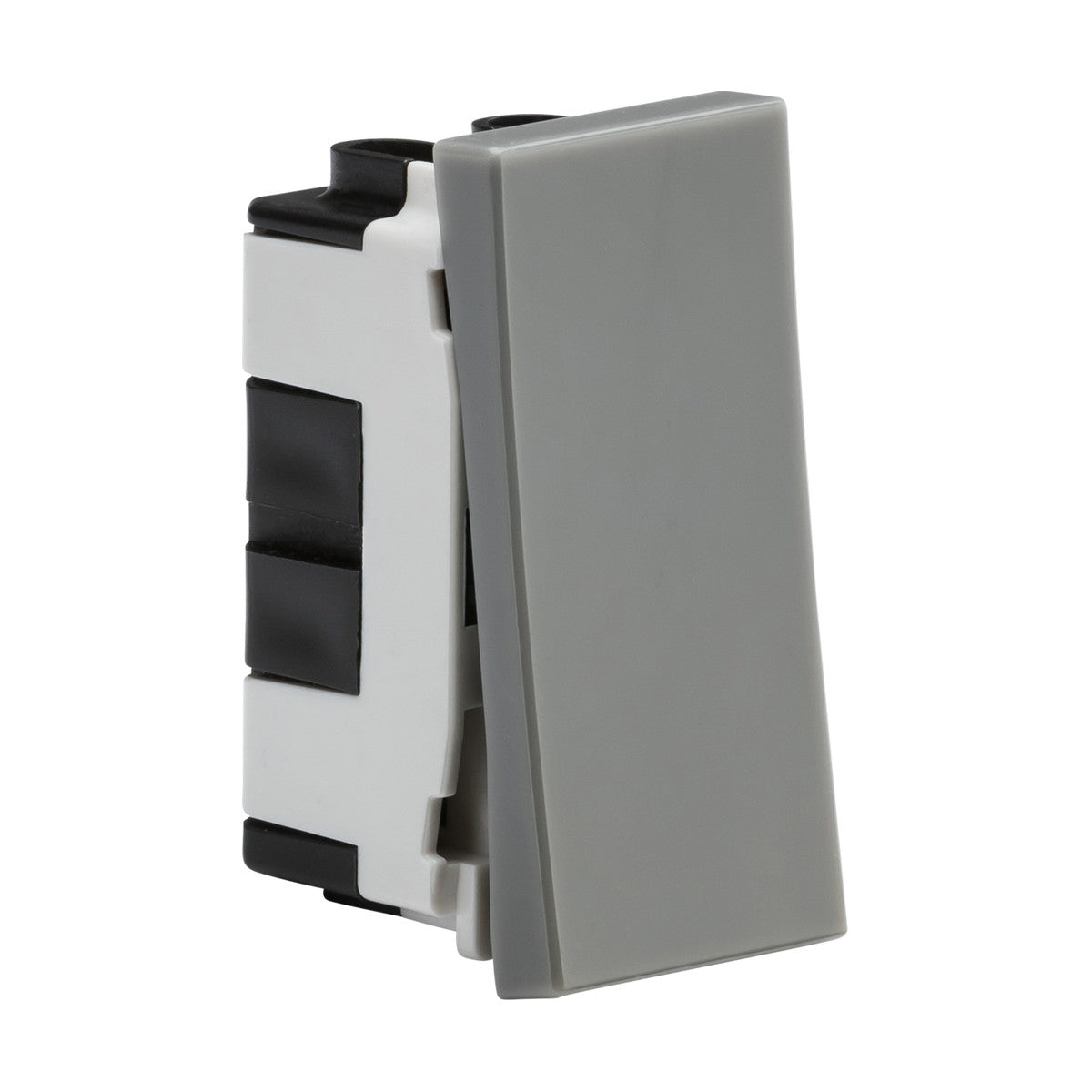

20AX 1 Gang Intermediate Modular Switch 25x50mm - Grey

£599
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

The Knightsbridge 20AX 1-gang intermediate modular switch is a 25x50mm grey ABS switch module designed to slot into euro modular faceplates. An intermediate switch is the third switch in a three-way lighting circuit, allowing a single light or group of lights to be controlled from three or more locations in a room or hallway.

Designed for installers building custom switch configurations, the module clips into standard euro modular frames and can be combined with other Knightsbridge modules (switches, dimmers, sockets, data ports) to create bespoke multi-gang plates. The 25x50mm footprint occupies a single module width in a modular grid, allowing up to four modules in a standard quad-gang euro plate or two modules in a double-gang frame.

The grey ABS rocker matches Knightsbridge's modular range finish and suits commercial, hospitality and residential installations where a neutral grey tone is preferred over white or metallic finishes. The 20AX rating handles lighting loads up to 4,600W on 230V mains, comfortably exceeding typical residential lighting circuit demands. The IP20 rating restricts use to dry indoor locations only.

Specification
Height 50 mm
Width 25 mm
Depth 25.7 mm
Min. Mounting Box Depth 25mm
Construction ABS
Finish Grey
Class II
IP Rating IP20
Primary Voltage 230V 50Hz
Warranty 2
Downloads

Product Specification Sheet

Frequently Asked

What is an intermediate switch used for?

An intermediate switch is the third (or fourth, fifth, etc.) switch in a multi-location lighting circuit. It sits between two two-way switches and allows control of the same light from three or more positions. Common applications include long hallways, staircases with landings, and large rooms with multiple entry points.

What faceplate does this module fit?

The module fits any euro modular faceplate with 25x50mm grid spacing. Knightsbridge produces compatible frames in single, double, triple and quad-gang configurations across various finishes including polished chrome, brushed chrome, matt black and white.

Can I combine this with other modules?

Yes. The 25x50mm format allows you to combine this intermediate switch with other Knightsbridge modular components (rocker switches, dimmers, sockets, USB ports, data modules) in the same faceplate to create custom multi-gang configurations.

What back box depth is required?

A 25mm minimum back box depth is needed. The module itself is 25.7mm deep, so a 25mm box provides just enough clearance when wiring is managed carefully. A 35mm or 47mm box gives more comfortable working space during installation.
