20A Flex Outlet Plate - Polished Chrome Rounded Edge

£899
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

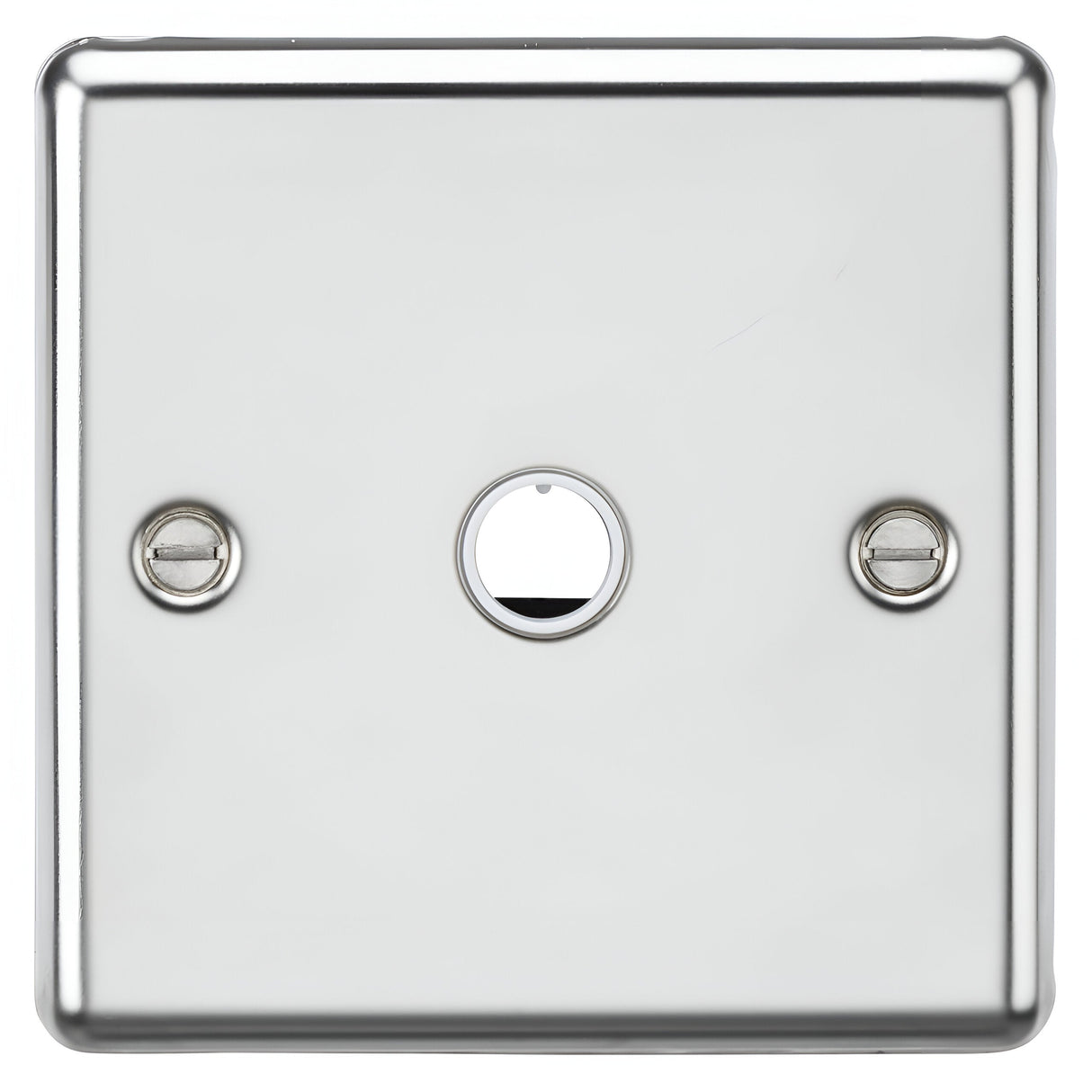

The Knightsbridge 20A flex outlet plate provides a fixed connection point for hardwired appliances such as wall-mounted boilers, water heaters, extractor fans and air conditioning units. A single 20mm aperture in the centre of the plate accepts cables up to 10mm in diameter, with an internal strain-relief clamp securing the cable against accidental pulling or tension.

Designed for residential and commercial installation where appliances are permanently wired rather than plugged into a socket, the plate sits flush to the wall surface with a polished chrome finish and rounded edge profile. The 85.75mm square faceplate fits a standard 25mm minimum back box depth and uses two visible fixing screws. The 20A rating handles continuous loads up to 4,600W at 230V.

The plate includes twin earth terminals and can accommodate terminal capacities of three 2.5mm² conductors or two 4.0mm² conductors. The polished chrome finish is applied to a 304 stainless steel plate, providing corrosion resistance and a mirror-bright surface that pairs with both contemporary and classical interiors. Knightsbridge backs the plate with a 25-year guarantee.

Specification
Height 85.75mm
Width 85.75mm
Depth 21.89mm
Projection 12.7mm
Min. Mounting Box Depth 25mmmm
Plate Depth 7.5mm
Construction 304 Stainless steel
Finish Polished Chrome
IP Rating IP20
Class I
Primary Voltage 230V 50Hz
Earth Terminal Yes
Warranty 25 Year Guarantee
Downloads

Product Specification Sheet

Frequently Asked

What appliances is this outlet suitable for?

This 20A flex outlet is designed for hardwired appliances such as wall-mounted boilers, water heaters, extractor fans, air conditioning units and other fixed electrical loads. It is not a socket for plug-in devices.

What cable diameter does it accept?

The central aperture accepts cables up to 10mm in diameter. The internal strain-relief clamp secures the cable against pulling or tension once fitted.

What back box depth is required?

A 25mm minimum back box depth is needed for safe installation. The plate itself has a 7.5mm depth and projects 12.7mm from the wall once fitted.

Is this a screwless plate?

No. This is a traditional screw-fixed plate with two visible fixing screws. Knightsbridge does produce screwless variants in other ranges if a screw-free finish is required.
