20A Flex Outlet Plate - Brushed Chrome Square Edge

£999
The RRP is the manufacturer's recommended retail price of the item.
59 In Stock - Ready to Ship
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

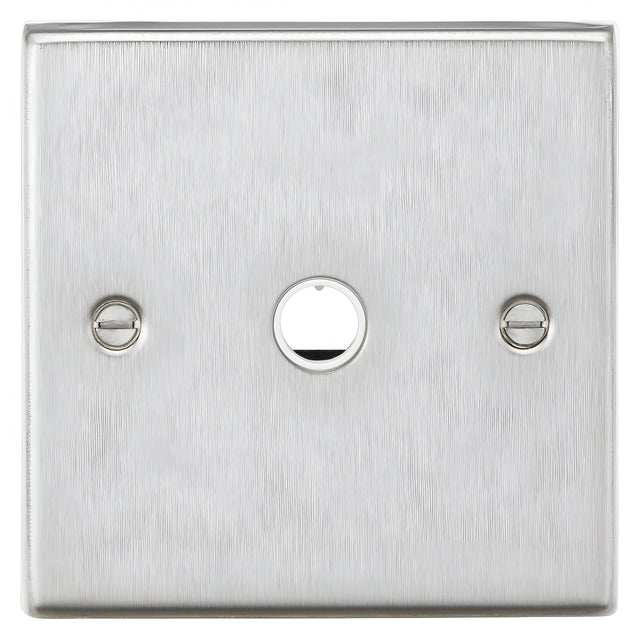

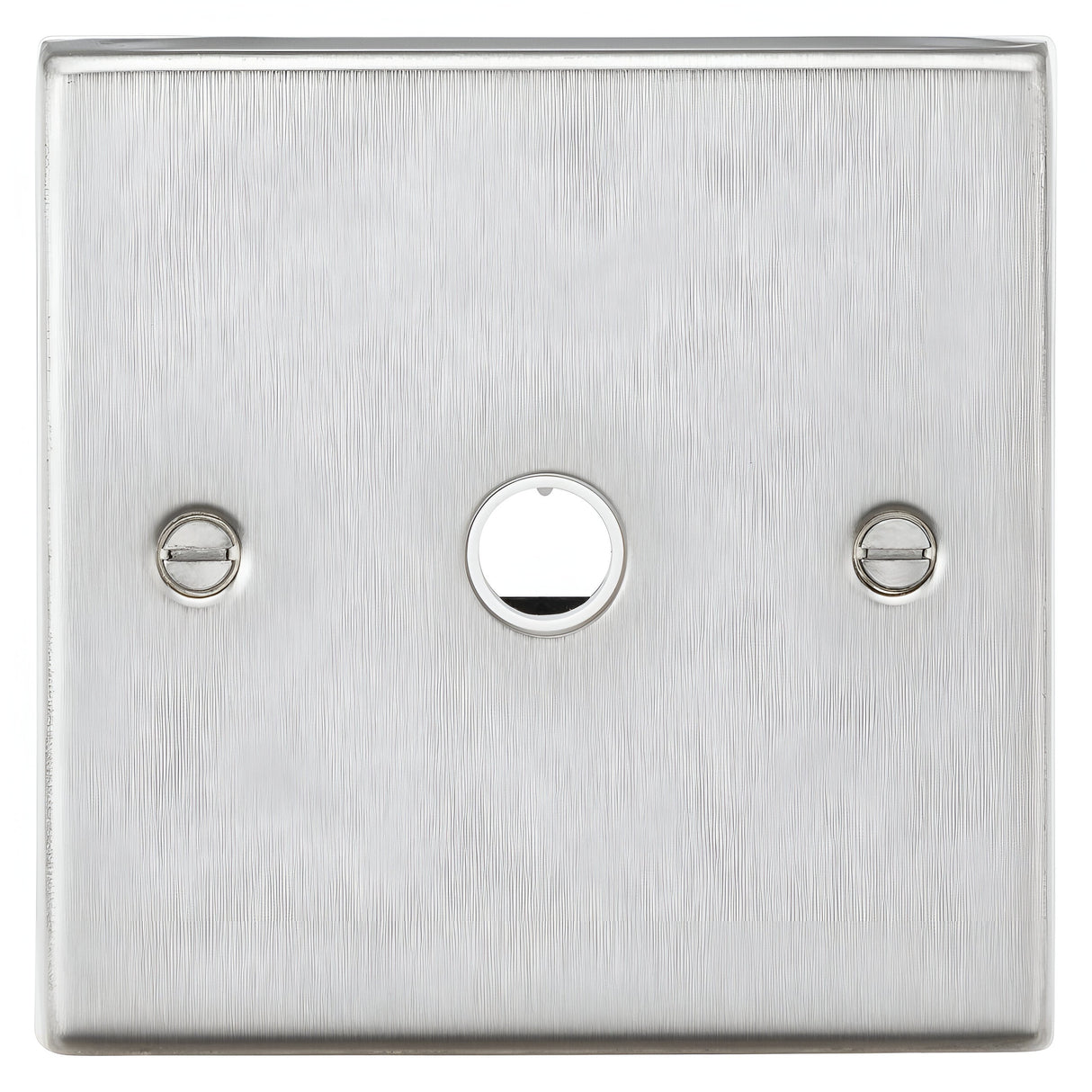

The Knightsbridge 20A flex outlet plate provides a fixed hard-wired connection for appliances such as electric water heaters, towel rails, central heating boilers and refrigerators. The brushed chrome square-edge faceplate measures 89mm square with a 10.5mm projection from the wall, and the central outlet aperture accepts cable diameters up to 10mm.

Designed for residential and light commercial installation, the outlet plate fits a standard 25mm minimum back box depth and uses twin earth terminals for additional safety. The cable strain relief clamp inside the plate prevents movement or pulling on the wired connection once the appliance cable is secured. The 20A rating handles continuous loads up to 4,600W at 230V, making it suitable for most domestic fixed appliances.

The 430 stainless steel construction with a brushed chrome finish provides a corrosion-resistant surface that pairs with modern kitchen fittings. The square-edge profile sits flush to the wall with minimal bevelling, giving a clean geometric appearance that suits contemporary interiors. The faceplate is fixed with two visible screws positioned left and right of the central outlet aperture.

Specification
Height 89mm
Width 89mm
Depth 21.89mm
Projection 10.5mm
Min. Mounting Box Depth 25mmmm
Plate Depth 10.5mm
Construction 430 Stainless Steel
Finish Brushed Chrome
IP Rating IP20
Class I
Primary Voltage 230V 50Hz
Earth Terminal Yes
Warranty 25 Year Guarantee
Downloads

Product Specification Sheet

Frequently Asked

What appliances is this flex outlet suitable for?

The 20A rating supports fixed appliances up to 4,600W continuous load. Typical uses include electric water heaters, heated towel rails, central heating boilers, refrigerators, freezers and washing machines that require a permanent hard-wired connection rather than a plug-in socket.

What cable diameter does it accept?

The outlet aperture accepts cables up to 10mm diameter. The terminal capacity is three conductors of 2.5mm² or two conductors of 4.0mm², which covers the majority of domestic fixed appliance wiring.

What back box depth is required?

A 25mm minimum back box depth is needed for safe installation. The plate itself has a depth of 21.89mm, with a 10.5mm projection from the wall once fitted.

Is the faceplate screwless?

No. This square-edge plate uses two visible screws positioned left and right of the central outlet aperture. Knightsbridge produces screwless versions of flex outlet plates in other ranges — use the search function to find screwless alternatives.
