13A 1 Gang Unswitched Floor Socket - Brushed Chrome (White Insert)

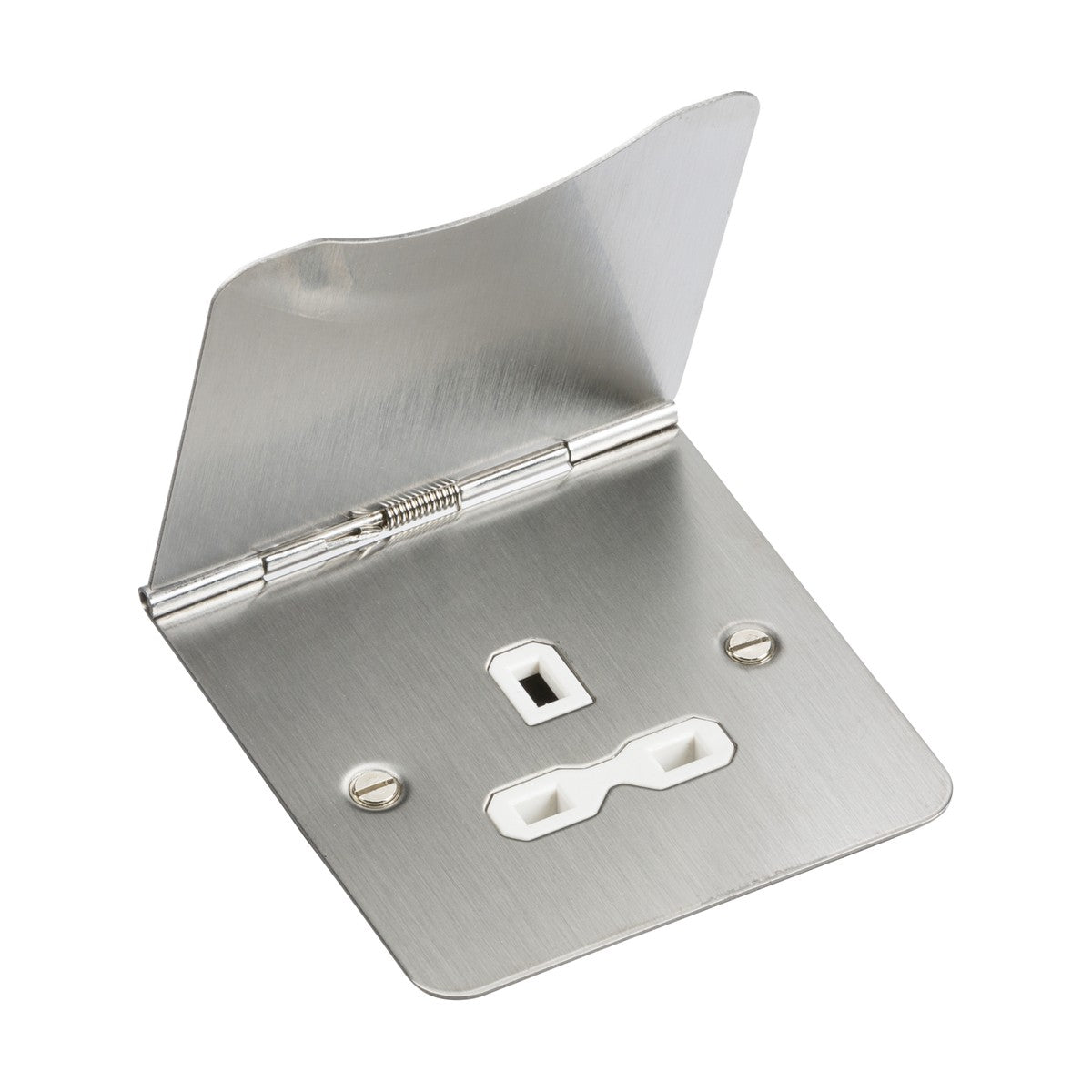

The Knightsbridge FPR7UBCW is a 13A 1-gang unswitched floor socket with a spring-loaded brushed chrome cover and white insert. The cover sits flush when closed, projecting only 3mm above floor level, and lifts to reveal a standard 13A socket outlet beneath. The spring mechanism automatically closes the cover when not in use, reducing dust ingress and shielding the outlet from accidental contact in high-traffic areas.

Designed for permanent installation in offices, hotels, conference rooms and open-plan residential spaces, the socket fits into a 35mm minimum depth floor box recessed into the floor structure. The unswitched configuration provides constant power without needing manual switching, making it suitable for equipment that requires uninterrupted supply — floor lamps, AV equipment in conference settings, or cleaning appliances that plug and unplug frequently without a need to toggle a switch.

The brushed chrome finish shows a linear grain pattern that resists fingerprints and hides minor scuffing better than polished chrome. The white insert behind the chrome faceplate provides contrast around the socket aperture and softens the overall appearance in spaces where brushed metal alone might feel too industrial. The premium-grade steel construction withstands foot traffic and trolley wheels passing over the closed cover, and the IP20 rating confirms suitability for dry indoor locations.

Product Specification Sheet

Product Manual

What floor box depth is required?

A 35mm minimum depth floor box is needed to accommodate the socket mechanism and wiring. The socket recesses 30mm into the floor structure, with the closed cover projecting just 3mm above floor level.

Is the socket switched or unswitched?

Unswitched. The socket provides constant power without a manual switch, so plugging in an appliance immediately supplies current. This suits equipment that requires uninterrupted power or appliances that are frequently plugged and unplugged.

How does the spring-loaded cover work?

The cover sits flush when closed and lifts manually to access the socket outlet. When released, the spring mechanism automatically closes the cover, reducing dust and debris entering the outlet and providing a degree of protection from accidental contact.

Can it be installed in carpeted floors?

Yes, though the floor box must be recessed into the subfloor structure before carpet is laid. The carpet is typically cut around the socket aperture, with the brushed chrome cover sitting flush or slightly proud of the carpet surface depending on pile depth.
