100mm LED Backlit Extractor Fan With Overrun Timer - White

£4699
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

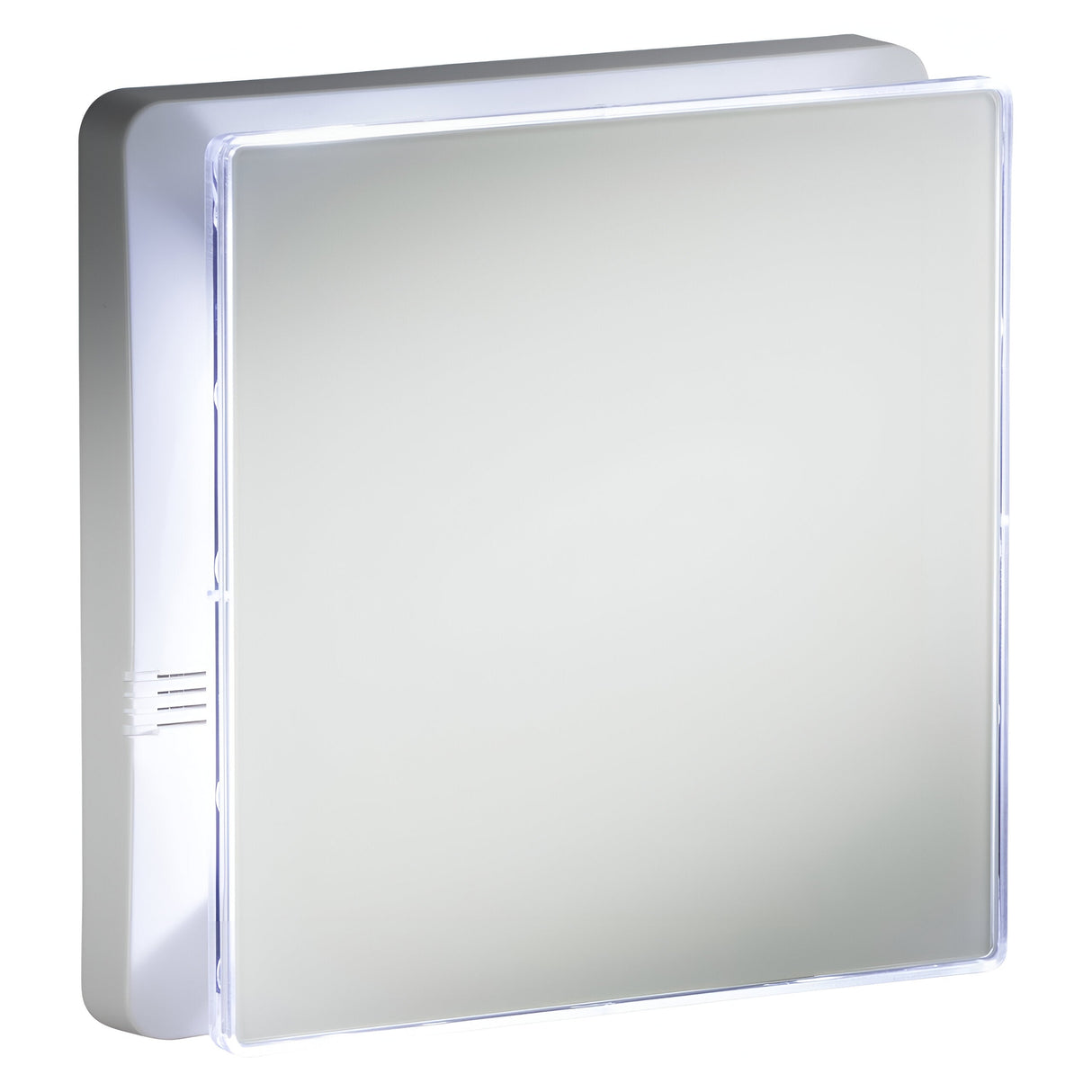

The Knightsbridge EX3T is a 100mm extractor fan with an LED backlight ring around the grille that activates during operation, and an adjustable overrun timer that continues extraction for 2-30 minutes after the fan is switched off. The fan is rated at 23 litres per second (83m³/hr) and operates at 28.5-30dBA at 3m, making it quieter than most bathroom extractor fans at the same airflow.

Designed for ceiling or wall installation in bathrooms, toilets, ensuites and utility rooms, the fan fits a 102mm cut-out and projects 48.7mm from the surface once fitted, with 78.4mm recessed behind the wall or ceiling. The IP45 rating makes it suitable for Zone 1 bathroom installation (areas within 2.25m of a shower or bath). The fan complies with Building Regulations Part F (ventilation) and Part L (energy efficiency), with a specific fan power of 0.438W/(l/s).

The white ABS grille and housing provide a clean finish that pairs with standard white bathroom fittings. The LED backlight is decorative rather than functional — it provides a subtle glow during operation but is not intended to light the room. The fan is double-insulated (Class II), so no earth connection is required during installation. The overrun timer is preset to 2 minutes but can be adjusted up to 30 minutes on installation.

Specification
Height 157.6mm
Width 157.6mm
Depth 128.3mm
Projection 48.7mm
Recessed Depth 78.4mm
Cut-out Diameter 102mm
Construction ABS
Finish Matt White
IP Rating IP45
Class II
Primary Voltage 230V 50Hz
Earth Terminal No
Noise Levels 28.5 - 30dB @ 3m
Airflow Airflow: 23l/s [82.8m³/hr]
SFP 0.438W / (l/s)
Overrun Timer Overrun timer settings: 2-30mins (Preset: 2mins)
Warranty 3 Year Guarantee
Downloads

Product Specification Sheet

Frequently Asked

What is the overrun timer and how is it set?

The overrun timer keeps the fan running after the switch is turned off, continuing to extract moisture for a set period. It is preset to 2 minutes but can be adjusted between 2-30 minutes during installation by turning a dial or potentiometer inside the housing. This ensures moisture is fully extracted even after you leave the room.

Can this be installed in a bathroom shower area?

Yes. The IP45 rating makes it suitable for Zone 1 bathroom installation, which covers areas within 2.25m horizontally and vertically from a shower or bath. It cannot be installed inside the shower enclosure itself (Zone 0), but is safe for ceiling or wall mounting in the wider bathroom.

How loud is this fan in practice?

At 28.5-30dBA measured at 3m, this is quieter than most bathroom extractor fans at the same airflow. For context, 30dBA is roughly the noise level of a whisper or a quiet library — it is audible but not intrusive during normal use or at night.

Does the LED backlight provide enough light to see by?

No. The LED backlight is decorative only and provides a subtle glow around the grille during operation. It is not intended to light the room and should not be relied on as a bathroom light source.
