Description

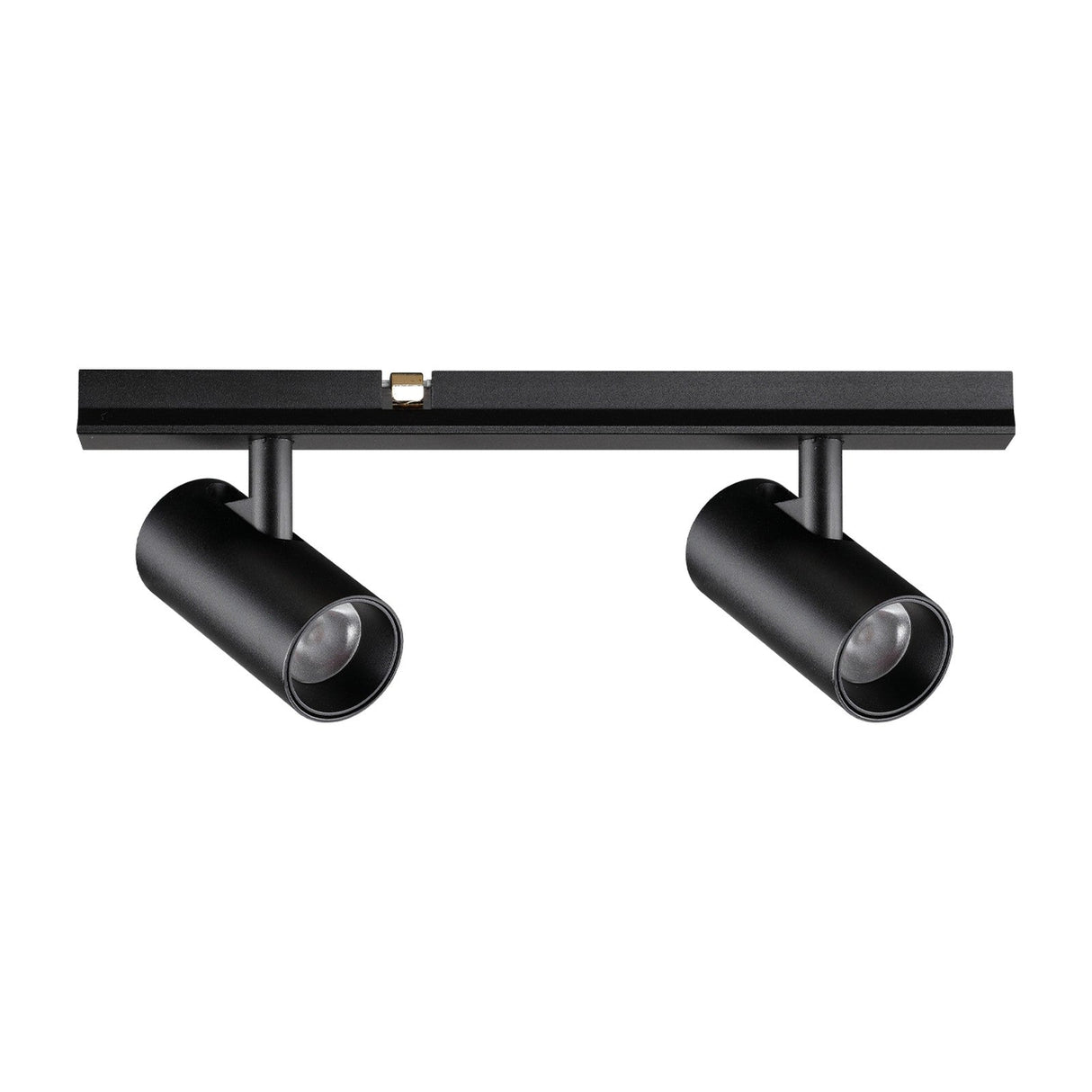

The Stick double is a twin-head spotlight that fixes magnetically to the low-voltage rail, carrying two directed integrated-LED heads on one body you slide along the run and lock in place. Each head tilts and turns on its own mount, and a tight 24 degree beam picks out a single object cleanly, so the pair can graze two pictures or split light between a shelf and a wall from one point. Lit, the two warm 2700K pools read as crisp accents; off, the compact matt black body sits 150mm long on the track.
The unit runs at 6W and gives 400 lumens across both heads from the 48V line, with colour rendering above 90 so artwork, timber and fabric hold their true tone under the narrow beams. Because it lives on the magnetic rail, several doubles can share one recessed or surface run and each head aim at a separate target, then reposition by hand when a hang or layout shifts, which suits a gallery wall, a display niche or a retail bay where two targets sit close together.
The body is extruded aluminium in matt black and the fitting carries an IP20 rating for dry indoor rooms. Both LEDs are built in and rated to 50,000 hours, so there is no bulb to fit. It dims by PWM through a compatible driver, and it needs the Stick rail with a remote 48V supply, neither of which comes with the unit, both of which we can supply alongside.
Specification
| Number of lights |
2 |
| Light source |
Integrated LED, 6W total (50,000h) |
| Luminous flux |
400 lumens |
| Colour temperature |
2700K (warm white) |
| CRI |
Ra > 90 |
| Beam angle |
24 degrees |
| Length |
150mm |
| Height |
61.6mm |
| Projection |
22mm |
| IP rating |
IP20 |
| Dimmable |
Yes, PWM |
| Voltage |
48V DC (remote driver required, not included) |
| Mounting |
Stick magnetic rail (recessed or surface) |
| Adjustment |
Each head tilts and rotates |
| Insulation class |
Class III |
| Frame / Structure finish |
Matt black aluminium |
| Materials |
Extruded aluminium |
Downloads
Datasheet
Frequently Asked
What kind of light does the Stick double spotlight give?
Two directed beams of warm 2700K light, 400 lumens across the pair, with colour rendering above 90. Each 24 degree beam is narrow, so the heads pick out two separate objects cleanly rather than washing a whole wall.
Can the two heads aim independently?
Yes. Each head tilts and rotates on its own mount, so one can light a picture while the other catches a shelf or a second frame from the same point on the rail.
Does it use bulbs, and can it be dimmed?
Both LEDs are built in and rated to 50,000 hours, so there are no bulbs to fit. It dims by PWM through a compatible 48V driver, which sits remote and is supplied separately.
What does it need to run?
The Stick recessed or surface rail and a remote 48V driver, not a standard mains ceiling point. The unit clips to the track and can be slid and re-aimed later, so we can provide the rail, feed and driver to build the run.
