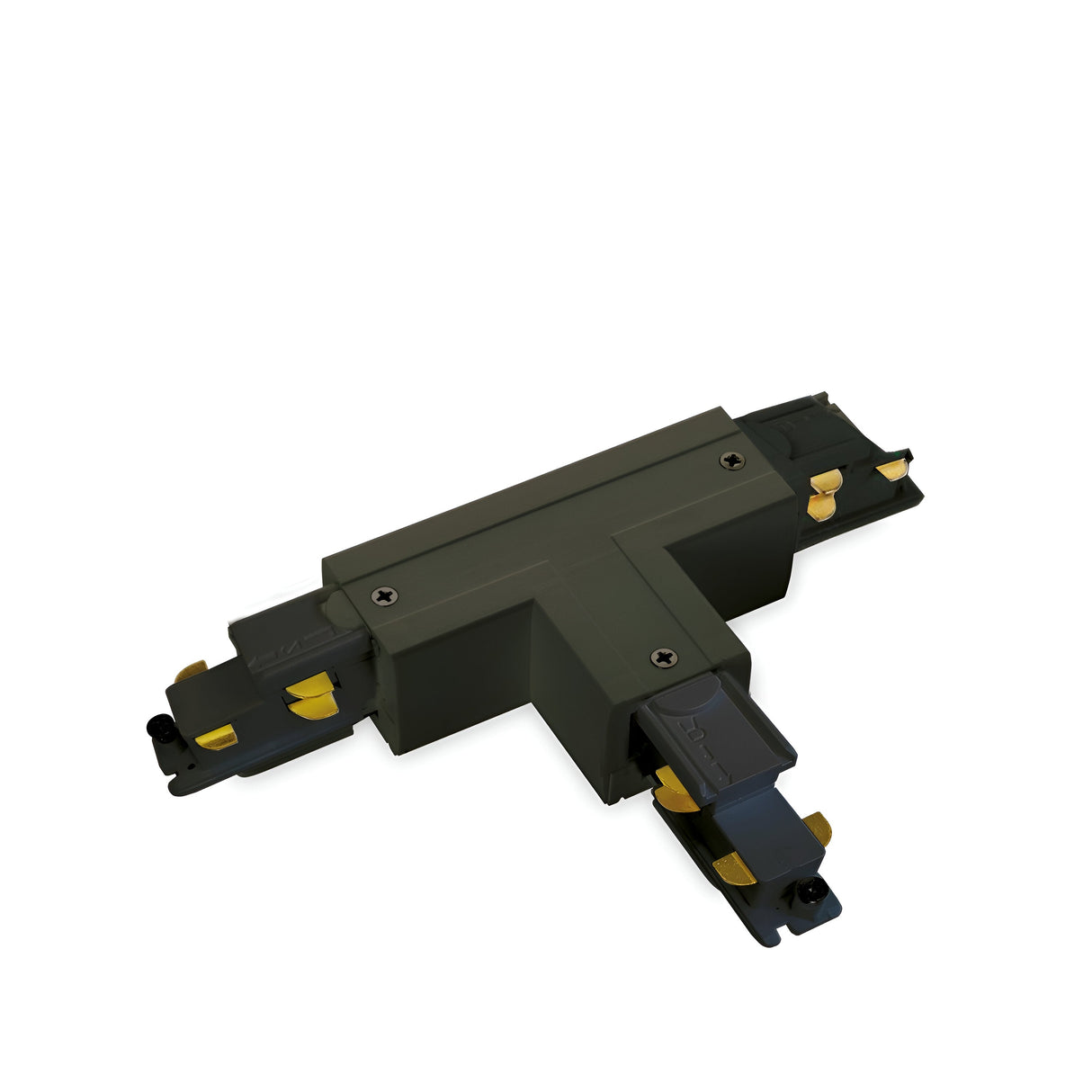

Brillia 3-Phase Trimless T-Connector Track Right - Dimmable 1-10V Black

£5099
RRP £7200
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

The Brillia 3-phase trimless T-connector is a right-hand junction piece for Ideal Lux track lighting systems, allowing a track run to branch off at a 90-degree angle to the right. The connector supports 1-10V dimming control across all three phases, enabling individual circuit control within a multi-phase track installation. The black plastic housing is designed to sit flush with the track profile in trimless installations, minimising visible gaps where track sections meet.

Used in commercial retail, gallery and hospitality settings where track runs need to turn corners or branch into separate zones, the T-connector links standard Brillia track sections without requiring junction boxes or additional wiring breaks. The three-phase capability allows different groups of track spotlights to be controlled independently on separate dimmer channels, so a single track run can support multiple lighting scenes across different zones of a room.

The 203mm length and 119mm projection define the physical dimensions of the T-junction itself, which determines the minimum width of ceiling or wall surface needed to accommodate the turn. The black finish matches Brillia black track sections and black track spotlights, maintaining a cohesive appearance across the entire track system. The IP20 rating limits the connector to indoor dry locations only, and the 5-year warranty covers manufacturing defects under normal use.

Specification
Length (mm) 203
Projection (mm) 119
Dimmable Yes
IP Rating IP20
Warranty 5 Years
Frequently Asked

Is this compatible with Brillia track in other finishes?

The connector is designed for Brillia 3-phase track systems and will function mechanically with white or black track sections. For a unified appearance, pair the black connector with black track sections and spotlights.

What does 1-10V dimmable mean?

The connector supports 1-10V dimming protocol, a commercial lighting standard where a separate low-voltage control cable adjusts the output of compatible LED drivers. This requires a 1-10V dimmer and track spotlights with 1-10V-compatible drivers.

What's the difference between right and left T-connectors?

A right T-connector branches the track to the right when looking along the main track run, while a left connector branches to the left. Choose the orientation that matches your ceiling layout and where you need the branch to extend.

Can it be used outdoors?

No. The IP20 rating means the connector offers no protection against moisture or dust ingress and is suitable for indoor dry locations only.
