Brillia 3-Phase Trimless T-Connector Track Left - On/Off, White

£3799
RRP £5400
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

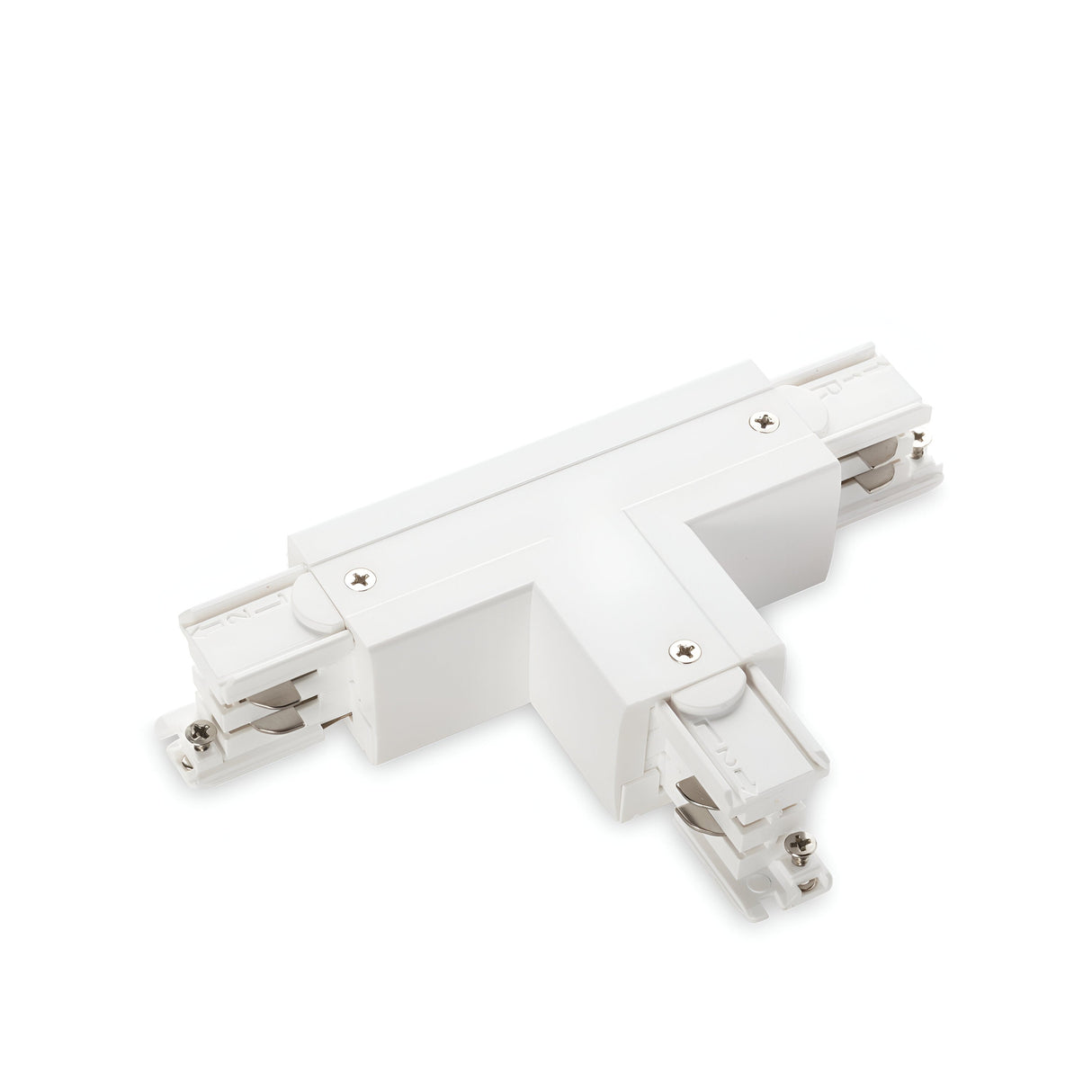

The Brillia 3-Phase Trimless T-Connector Track Left is a white junction component for Ideal Lux 3-phase track systems, configured to create a left-hand T-junction where a perpendicular track meets a continuous run. The connector includes on/off switching to control power flow to the branching section independently of the main track. Measuring 168.5mm in length with a 67.5mm projection from the ceiling plane, it maintains the trimless aesthetic of the Brillia system by sitting flush with plasterwork when recessed.

Designed for commercial, retail and residential lighting installations where track layouts need to change direction or branch into different zones, the T-connector allows architects and lighting designers to route track around columns, into alcoves, or across perpendicular ceiling joists without returning to a power feed point. The on/off switch on the connector body gives manual control over whether the left-branching track receives power, useful in galleries or showrooms where different zones are lit at different times.

The white plastic housing matches standard Ideal Lux white track profiles and ceiling trims, maintaining a uniform finish across the installation. The IP20 rating confines use to dry indoor environments — the connector is not suitable for bathrooms, outdoor canopies or any location exposed to moisture. The 3-phase design means the connector carries three independent circuits within the track, allowing different fixtures on the same physical run to be controlled separately via compatible dimming or switching systems upstream.

Installation requires the connector to be wired into the existing 3-phase track at the junction point, with the left-hand branch track clipped into the corresponding output side. Ideal Lux recommends professional installation by a qualified electrician familiar with 3-phase track wiring to ensure correct phase alignment and secure mechanical connection. Once fitted, the connector becomes a permanent part of the track infrastructure and cannot be easily relocated without rewiring.

Specification
Length (mm) 168.5
Projection (mm) 67.5
Dimmable No
IP Rating IP20
Warranty 5 Years
Frequently Asked

What does 'left' mean in the connector orientation?

The 'left' designation refers to the branch direction when facing along the main track run. The perpendicular track exits to the left-hand side of the main track at the junction point. If you need a right-hand branch, a separate right-configured connector is required.

Is this compatible with single-phase track systems?

No. The Brillia 3-Phase T-Connector is designed exclusively for Ideal Lux 3-phase track systems. It carries three independent circuits and will not fit or function correctly with single-phase or 2-circuit track profiles.

What does the on/off switch control?

The on/off switch on the connector body controls power flow to the left-branching track section. When switched off, fixtures on the branch track receive no power, while the main track run continues to operate normally. This allows manual zone control without requiring upstream switching.

Can it be surface-mounted or does it need to be recessed?

The trimless design is intended for recessed installation where the track sits flush with the ceiling plasterwork. It can be surface-mounted if paired with surface-mount track profiles, but the trimless aesthetic is lost. Check the projection depth of 67.5mm against your ceiling void before ordering.
