Brillia 3-Phase Trimless T-Connector Track Left - On/Off, Black

£3799
RRP £5400
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

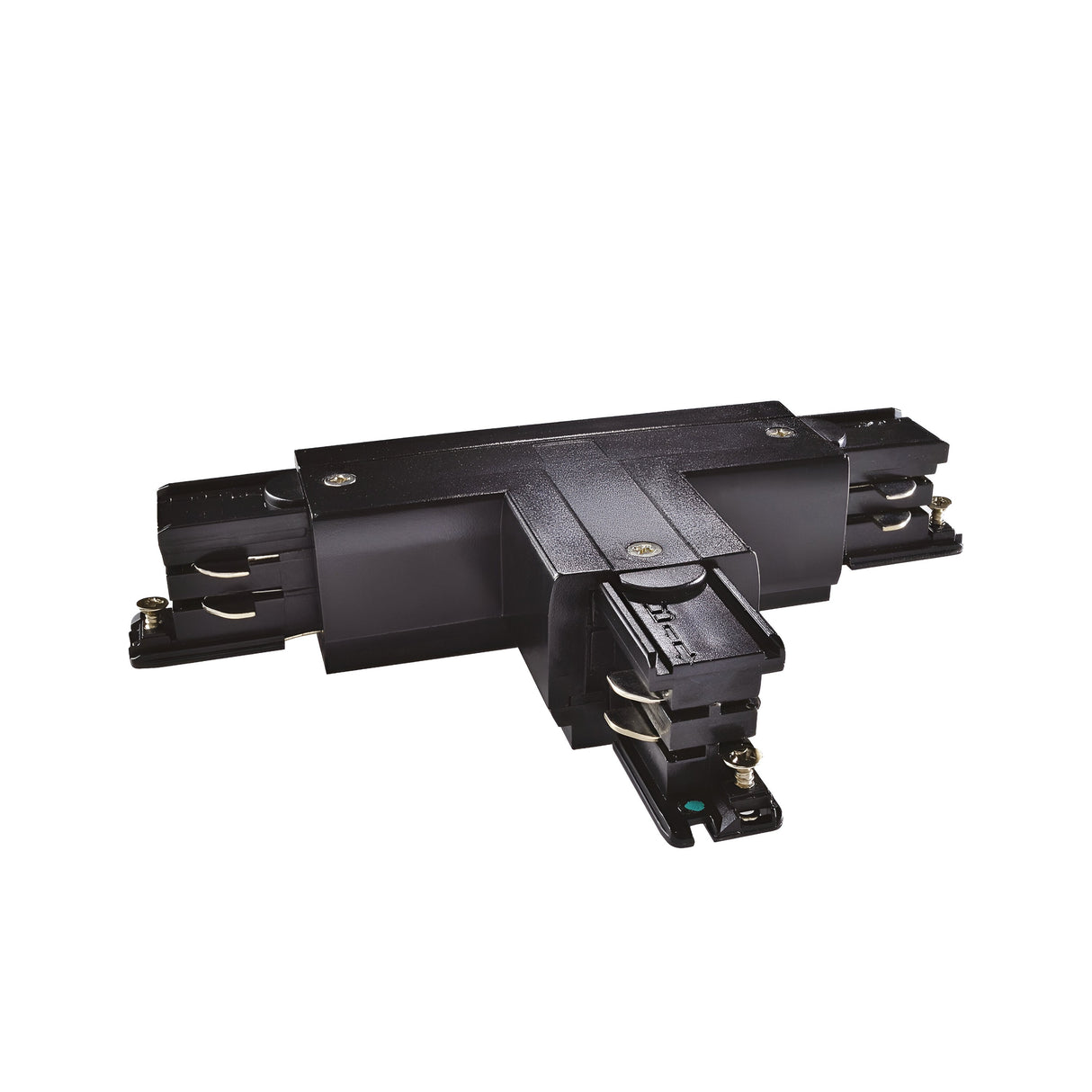

The Brillia 3-phase trimless T-connector forms a left-hand 90° junction between three sections of recessed track rail, allowing track lighting systems to turn corners or branch into T-shaped configurations. The connector body is moulded black plastic housing the three-phase copper busbars that maintain power continuity across all three track arms.

Designed for commercial and residential installations where track lighting needs to follow architectural features, turn corners in retail displays, or create multi-directional light runs along ceiling grids. The trimless design sits flush with plasterboard ceilings when installed in a channel or recessed track housing, leaving only the black junction visible from below. The on/off switch on the connector body allows a specific track arm to be isolated without affecting the rest of the system.

The 168.5mm length across the main rail and 67.5mm projection for the branch arm give typical clearances for standard 3-phase track profiles used in the Brillia range. The IP20 rating restricts use to dry indoor environments. Installation requires the connector to be wired into an existing 3-phase track run, with track sections pushed into the connector sockets until the internal spring contacts lock onto the busbars.

Specification
Length (mm) 168.5
Projection (mm) 67.5
Dimmable No
IP Rating IP20
Warranty 5 Years
Frequently Asked

What does 'left' mean in the product name?

The 'left' designation indicates the orientation of the T-junction when viewed from the incoming power feed. The branch track extends to the left at 90° from the main track run. A corresponding right-hand version is available for opposite-side branching.

Is this compatible with single-phase track systems?

No. This connector is designed specifically for 3-phase track systems where three separate circuits run along the track busbars. It will not physically fit or electrically function with single-phase or 2-circuit track profiles.

Can track spotlights be mounted directly to the connector?

Track fittings mount to the track rail sections that plug into the connector, not to the connector body itself. The connector purely forms the junction and maintains electrical continuity between the three track arms.

What is the trimless installation method?

Trimless installation involves recessing the track and connector into a plasterboard channel or ceiling void so that only the bottom edge of the track profile remains visible from below. This requires a recessed track housing or channel to be built during ceiling installation.
