Brillia 3-Phase T-Connector Track Right - Dimmable 1-10V Black

£5299
RRP £7560
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

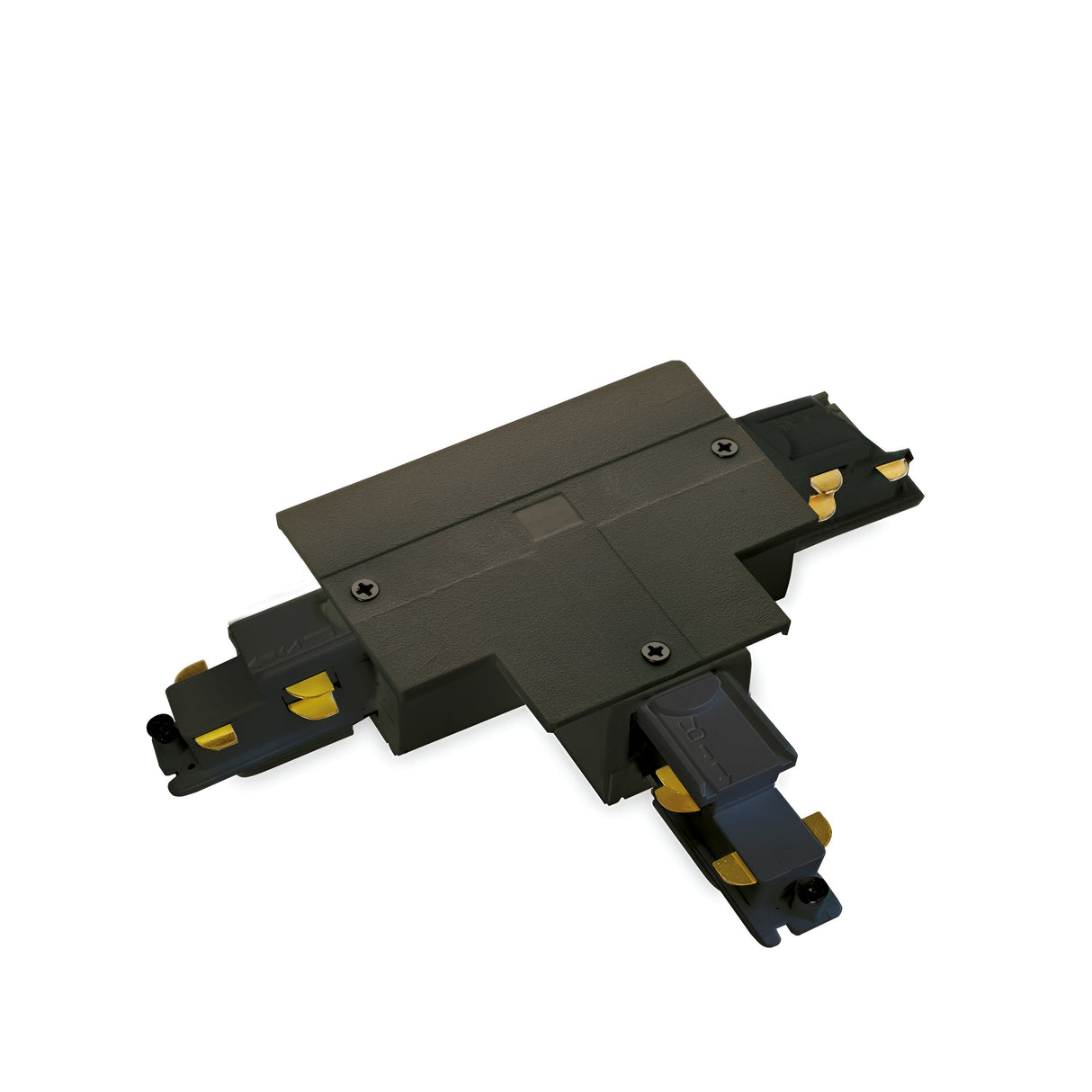

The Brillia 3-phase T-connector joins three track sections at right angles in track lighting installations, creating a T-junction configuration where one track feeds into another at 90 degrees. The connector houses three live conductors plus neutral and earth within a black plastic body measuring 203mm along the main run and projecting 119mm perpendicular.

Designed for retail, gallery, hospitality and commercial installations where track lighting needs to turn corners or branch into separate runs, the T-connector maintains electrical continuity across all three phases while allowing fixtures to be positioned anywhere along the joined tracks. The 1-10V dimming compatibility means the entire track circuit can be controlled from a single dimming system, provided all connected fixtures support the same protocol.

The black plastic housing sits flush with standard 3-phase track profiles from the Brillia range, maintaining a continuous line along ceiling or wall-mounted runs. The IP20 rating limits use to dry interior environments away from moisture. Installation requires the track to be de-energised, the connector slid into position on the cut track ends, and the cover screws tightened to secure the electrical contact points.

Specification
Length (mm) 203
Projection (mm) 119
Dimmable Yes
IP Rating IP20
Warranty 5 Years
Frequently Asked

What does 'right' mean in the product name?

The 'right' designation indicates the orientation of the T-junction when viewed from above. This connector creates a right-hand branch from the main track run. Ensure you order the correct orientation (left or right) based on your layout plan.

Is it compatible with all 3-phase track systems?

The connector is designed for Brillia 3-phase track profiles. Compatibility with other manufacturers' track depends on whether they follow the same conductor spacing and profile dimensions. For mixed-brand installations, verify compatibility before ordering.

Can it be installed on an energised track?

No. The track circuit must be isolated at the consumer unit before installing or removing connectors. Working on live track creates a serious electric shock and short-circuit risk.

What does the 1-10V dimming function control?

The 1-10V dimming capability allows the connector to pass dimming control signals to compatible fixtures on the track. A separate 1-10V dimmer and control cable are required, and all fixtures on the circuit must support 1-10V dimming for the system to function correctly.
