Brillia 3-Phase T-Connector Track Right - 1-10V Dimmable White

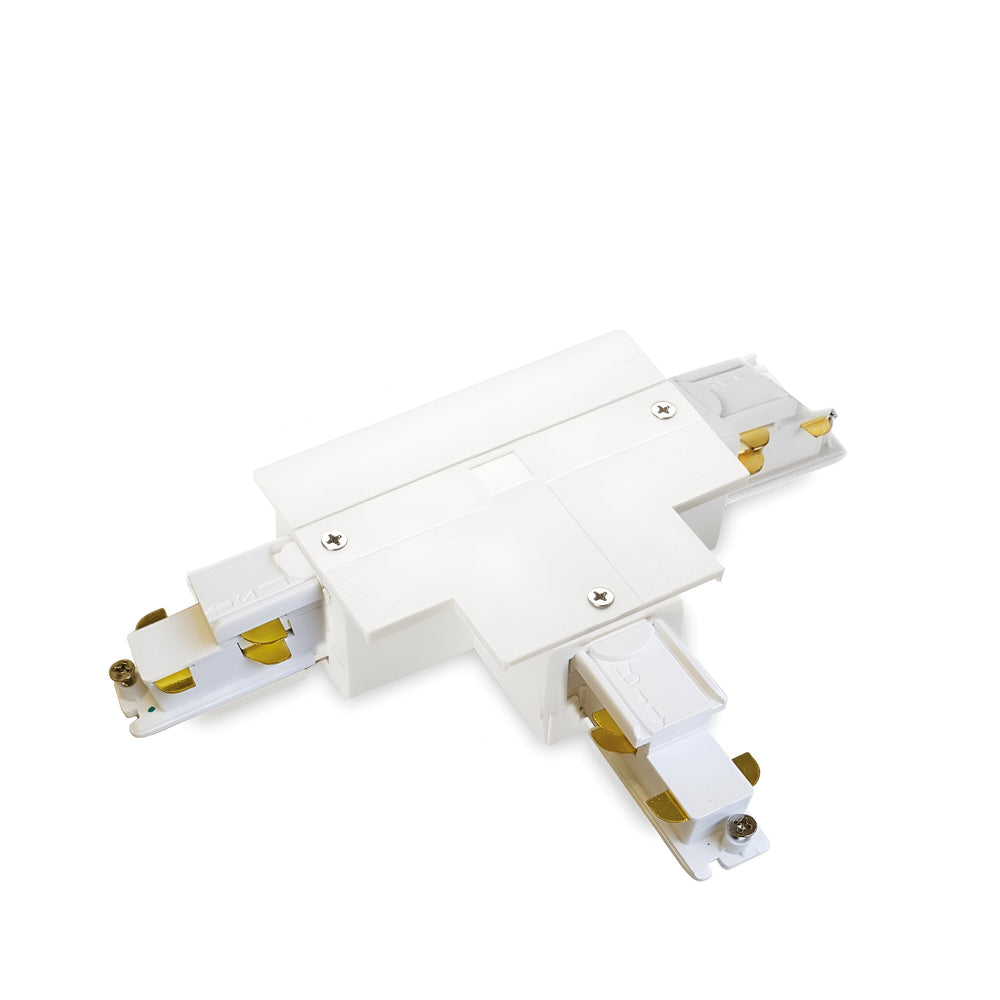

The Brillia 3-phase T-connector is a right-hand configuration junction piece for modular track lighting systems, finished in white plastic. It allows a track run to branch at 90 degrees to the right, creating T-shaped or L-shaped layouts for spotlights and pendant adaptors on three-circuit tracks. The connector supports 1-10V dimming control across all three circuits when paired with compatible dimmer modules.

Designed for retail, office, gallery and residential installations where track lighting needs to turn corners or branch into different zones, the T-connector measures 203mm along the main axis and projects 119mm on the branch axis. It clips into standard 3-phase track rails and maintains electrical continuity across all three circuits, allowing independent control of different spotlight groups on each circuit. The white finish matches Ideal Lux white track rails and creates a unified look when installed on white or light-coloured ceilings.

The IP20 rating makes the connector suitable for dry indoor environments. The plastic housing is lightweight and clips into place without the need for additional fixings beyond the main track mounting points. The 1-10V dimming protocol is a commercial-grade standard that provides smooth, flicker-free dimming across a wide range of LED track spotlights and requires a separate 1-10V dimmer controller upstream of the track system.

What is the difference between right and left T-connectors?

The orientation describes which direction the branch extends when you're looking along the main track run. A right-hand T-connector branches 90 degrees to the right, while a left-hand version branches to the left. This matters when planning track layouts to ensure branches go in the intended direction.

Is this compatible with single-circuit track systems?

No. This is a 3-phase connector designed for three-circuit track systems. It will not fit or function correctly with single-circuit or 2-circuit track rails. Ensure your existing track system is 3-phase before ordering.

What does 1-10V dimmable mean?

1-10V is a commercial dimming protocol where a low-voltage control signal (1-10 volts) adjusts the brightness of connected LED drivers. You need a separate 1-10V dimmer controller installed upstream of the track system to use this function. The connector itself passes the dimming signal through to spotlights on the track.

Can this be used outdoors or in bathrooms?

No. The IP20 rating means it is protected against solid objects larger than 12.5mm but offers no moisture protection. It is suitable only for dry indoor locations such as living rooms, offices, galleries and retail spaces.
