Brillia 3-Phase T-Connector Track Left - Dimmable 1-10V White

£5299
RRP £7560
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

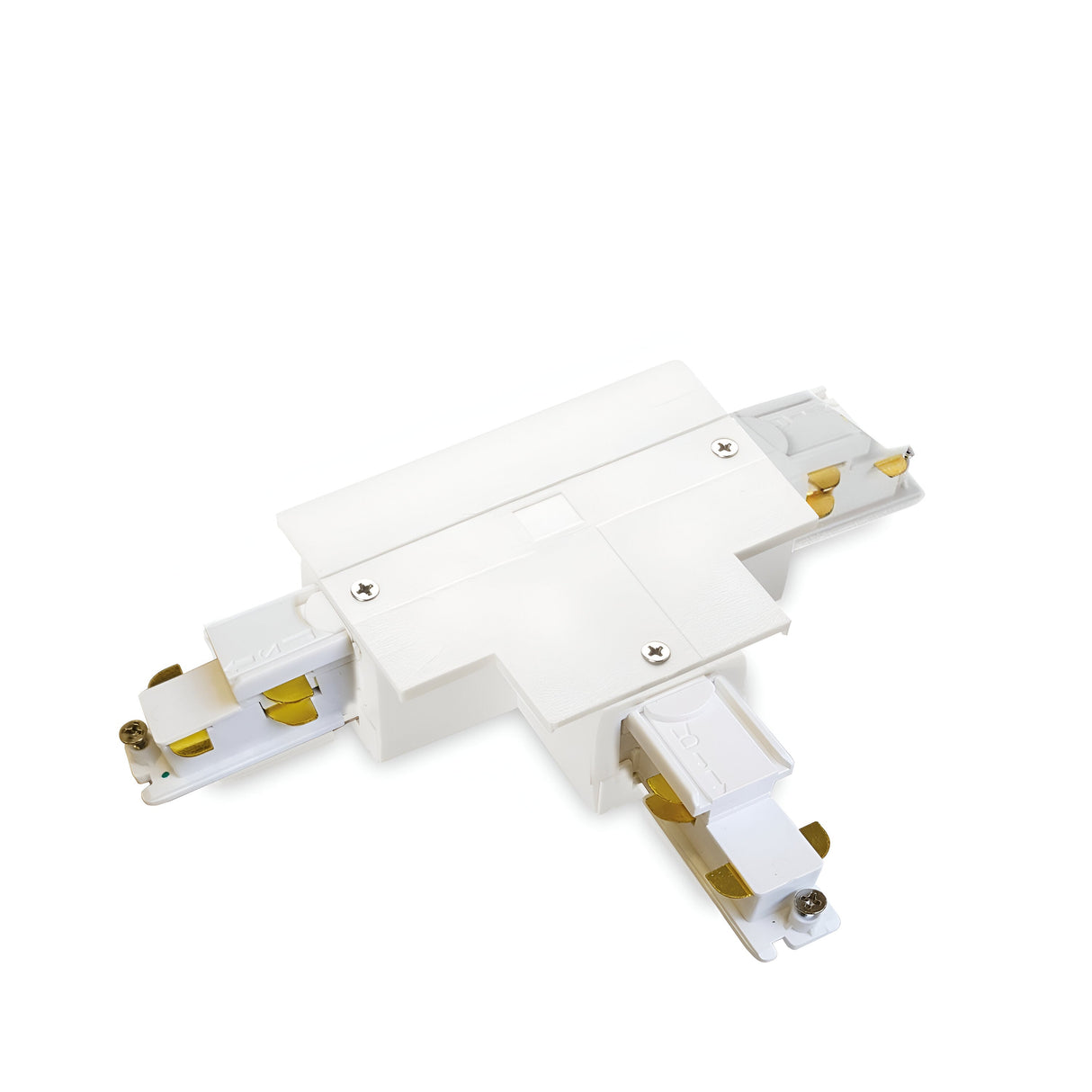

The Brillia T-connector is a left-hand three-way junction component for Ideal Lux 3-phase track lighting systems, finished in white and compatible with 1-10V dimming control. The connector allows a straight run of track to branch off at 90° to the left, creating L-shaped or T-shaped track layouts without requiring additional ceiling fixings at the junction point.

Designed for commercial retail, gallery, office and residential track lighting installations where flexible layout configurations are needed, the T-connector maintains live power feed across all three branches of the junction. The 203mm length along the main run and 119mm projection along the left-hand branch provide enough material to support track sections on both sides of the join. The white thermoplastic housing matches standard white track sections from the Brillia range.

The connector is rated IP20 for indoor dry-location use only and carries the same 1-10V dimming compatibility as the track system itself, meaning spotlights and fittings mounted anywhere on the connected track respond to a single dimmer control signal. The left-hand configuration is a mirror of the right-hand version — choose based on which direction the branch needs to extend when looking along the main track run from the power feed point.

Specification
Length (mm) 203
Projection (mm) 119
Dimmable Yes
IP Rating IP20
Warranty 5 Years
Frequently Asked

What is the difference between left and right-hand T-connectors?

The left and right designation refers to the direction the branch extends when you are looking along the main track run from the power feed point. A left-hand T-connector branches to the left; a right-hand branches to the right. They are mirror images of each other.

Can this be used with single-phase track systems?

No. The Brillia T-connector is designed specifically for 3-phase track systems and will not fit or function correctly with single-phase or 2-circuit track. Verify your existing track system specification before ordering.

Does the connector need to be wired separately?

No. The connector is a plug-and-play component that slots into the track on both the main run and the branch. Power feeds through the connector automatically once the track sections are joined and the system is powered.

What is the maximum load the connector can handle?

The connector itself does not limit load — that is determined by the track system rating and the circuit breaker protecting the installation. Consult the Ideal Lux Brillia track system documentation for the maximum wattage per circuit on 3-phase track.
