Description

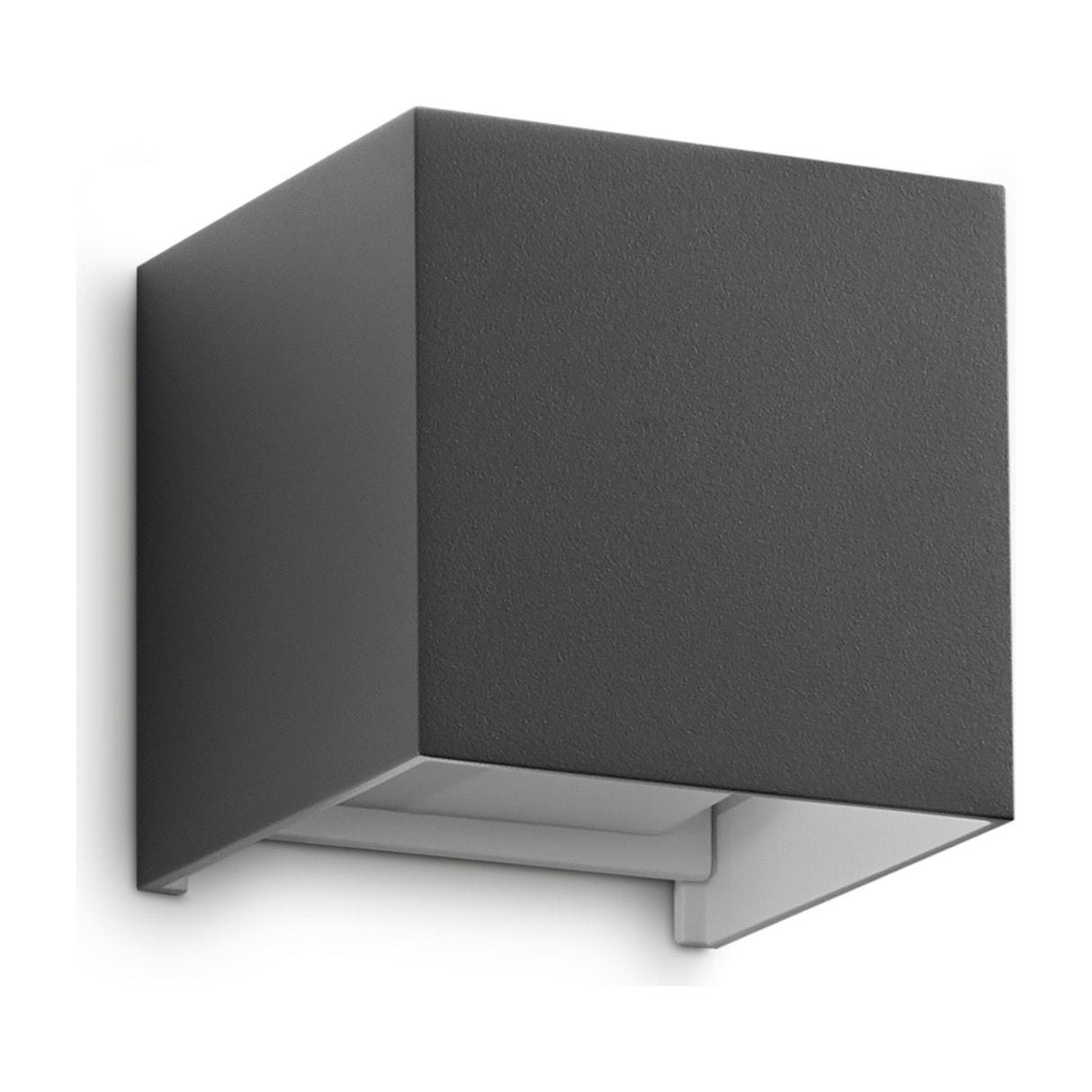

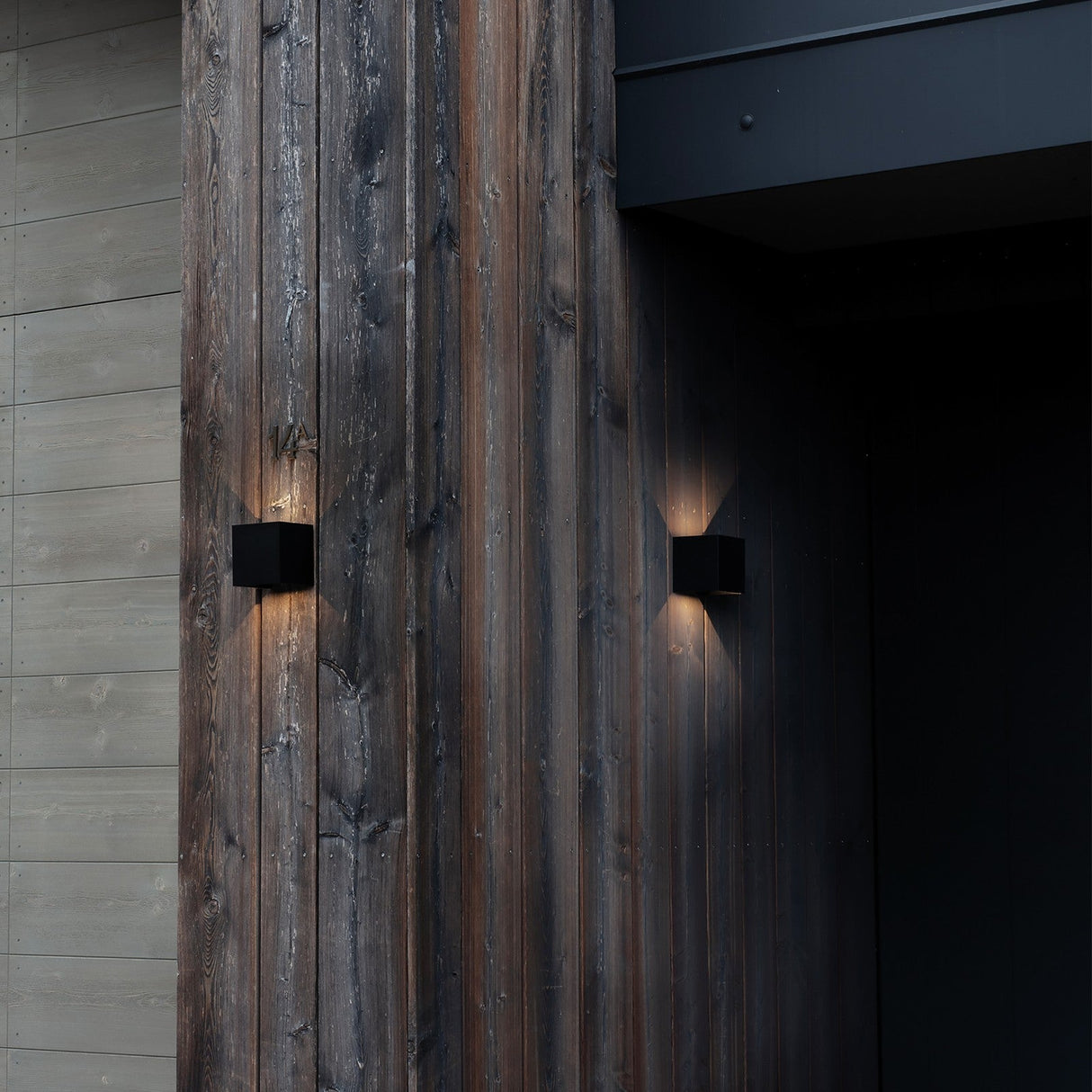

The Atom is a small cube-shaped fitting for an outside wall, sending a twin beam up the facade and down toward the ground. The two openings carry movable wings that let you set how wide each shaft spreads, so you can throw a narrow blade or a broader spill to suit the surface behind it. Lit after dark, it draws two sharp fans of brightness against the render; by day it sits back as a neat anthracite block barely 100mm across.
This is the anthracite version, a 100mm cube that stands only a little off the wall, so it grazes a textured surface closely and picks out the grain. The crisp 4000K white output suits a front door, a porch, a garden wall or a run spaced along a path, where the aim is clean directional accent rather than a soft glow. Its dark grey finish reads quietly against brick, stone or a painted facade.
The body is powder-coated aluminium with glass diffusers at each end, and it is rated IP54 against dust and splashing water for use outdoors. An integrated LED gives 1200 lumens at 4000K with a colour rendering index above 90 and a 30,000 hour life, so there is no bulb to fit and colours stay true under it. It draws 12W and wires straight to the mains.
Specification
| Number of lights |
1 |
| Light source |
Integrated LED, 12W total (1200lm, 4000K, CRI>90, 30,000h, included) |
| Colour temperature |
4000K (natural white) |
| Diameter |
100mm |
| Height |
100mm |
| Projection |
100mm |
| Emission |
Up and down, adjustable spread |
| IP rating |
IP54 (outdoor, splash resistant) |
| Dimmable |
No |
| Frame / Structure finish |
Anthracite powder-coated aluminium |
| Diffuser / Glass |
Glass diffusers |
| Materials |
Powder-coated aluminium body, glass diffusers |
Downloads
Datasheet
Assembly Instructions
3D Model
Frequently Asked
What kind of light does the Atom give?
A twin directional beam, one shaft up and one down, from an integrated LED at 4000K crisp white. Movable wings on each opening let you set the spread from a narrow blade to a wider fan, so it grazes a wall or throws an accent rather than casting a soft even glow.
Does it need bulbs?
No. A built-in LED giving 1200 lumens is included and sealed into the body, so there is nothing separate to fit. The module is rated for around 30,000 hours of normal use.
Is it suitable for outdoors?
Yes. It is rated IP54, sealed against dust and splashing water, so it suits a front door, a porch or a garden wall. As with any outdoor fitting it should be wired by a qualified electrician.
How big is it and where does it suit?
It is a compact 100mm cube. The up and down beam suits a front door, a porch, a garden wall or a row spaced along a path, and the movable wings let you aim each shaft.
