8 Gang Grid Faceplate Part M Compliant - Anthracite

£499
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

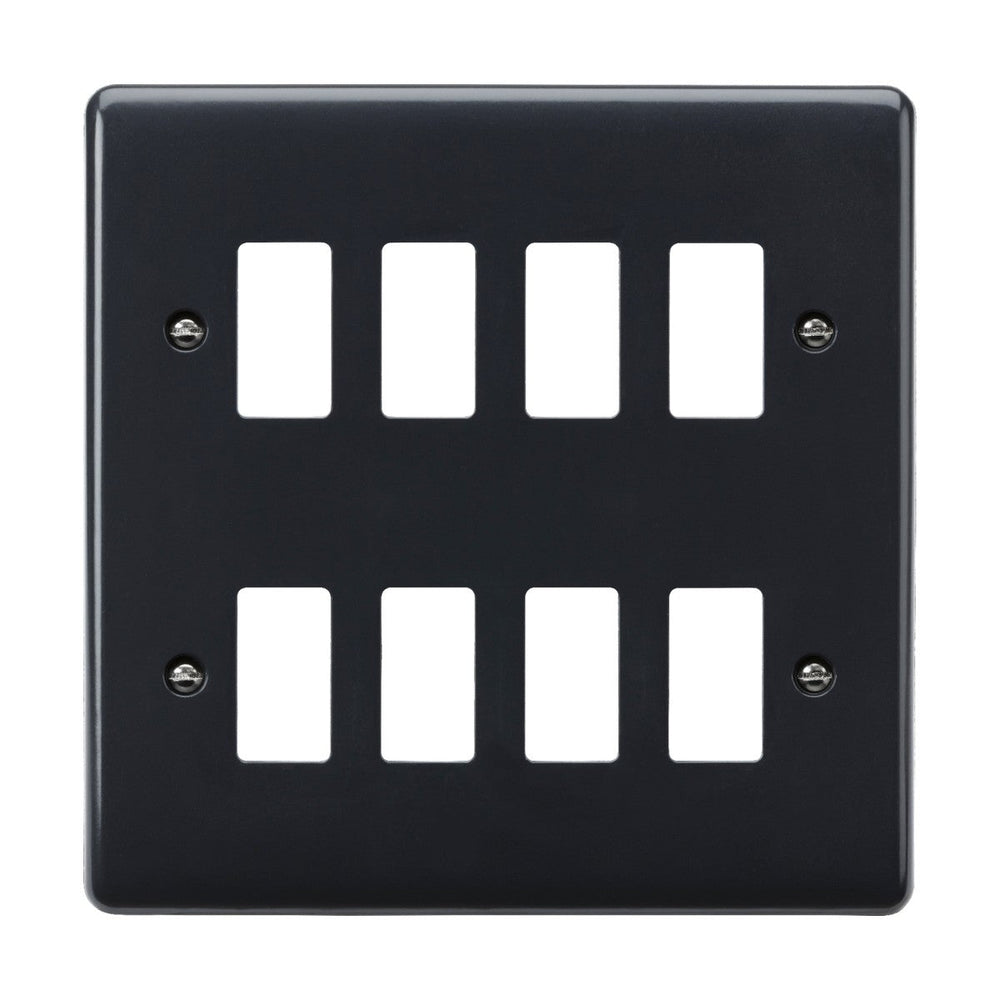

The Knightsbridge 8-gang grid faceplate is a Part M compliant anthracite plate designed for the Curved Edge Grid System, accommodating up to 8 individual grid modules in a 146mm square format. The anthracite thermoset resin finish carries a Light Reflectance Value (LRV) of approximately 8.9, creating the high visual contrast required under current Building Regulations Part M when installed on lighter-coloured walls.

Designed for commercial, hospitality and accessible residential installations, the faceplate works with two CUG2F grid sub-frames (sold separately) that allow 8 individual Curved Edge grid modules to be configured as switches, sockets, dimmers or data outlets. The thermoset resin construction includes inherent anti-microbial properties tested to ISO 22196:2011, making the plate suitable for healthcare, education and high-traffic public environments where surface hygiene matters.

The 7mm projection and IP20 rating suit standard internal dry-location installation. The plate measures 146mm square, fitting a standard double-gang back box footprint while supporting an 8-module configuration. The anthracite finish provides a dark neutral that contrasts with white, off-white and pale-toned walls while pairing with contemporary, industrial and minimalist interior schemes. Knightsbridge back the plate with a 25-year warranty.

Specification
Height 146 mm
Width 146 mm
Projection 7 mm
Construction Thermoset resin
Finish Anthracite
IP Rating IP20
Anti-Microbial Properties 3rd Party Tested to ISO 22196:2011
Warranty 25
Downloads

Product Specification Sheet

Frequently Asked

What does Part M compliant mean for this faceplate?

Part M of the Building Regulations requires accessible design in dwellings and buildings. This faceplate has a low Light Reflectance Value (LRV) of 8.9, providing high visual contrast against lighter walls so switches are easier to identify for people with visual impairment. Part M recommends a minimum 30% LRV difference between the plate and the wall.

What grid modules does it support?

The plate accommodates 8 individual Curved Edge grid modules from Knightsbridge. You also need two CUG2F grid sub-frames (sold separately) to mount the modules behind the faceplate. The system allows flexible configuration of switches, sockets, dimmers and data outlets.

What are the anti-microbial properties?

The thermoset resin material includes inherent anti-microbial additives tested to ISO 22196:2011. This reduces bacterial growth on the surface, making the faceplate suitable for healthcare, education and other high-hygiene environments. The anti-microbial effect is built into the material rather than applied as a coating.

What back box is needed?

The 146mm square faceplate fits over a standard double-gang (47mm) back box. A minimum 25mm back box depth is recommended to accommodate the two CUG2F sub-frames and the wiring behind the grid modules.
