4 Gang Grid Faceplate - Brushed Chrome Flat Plate

£799
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

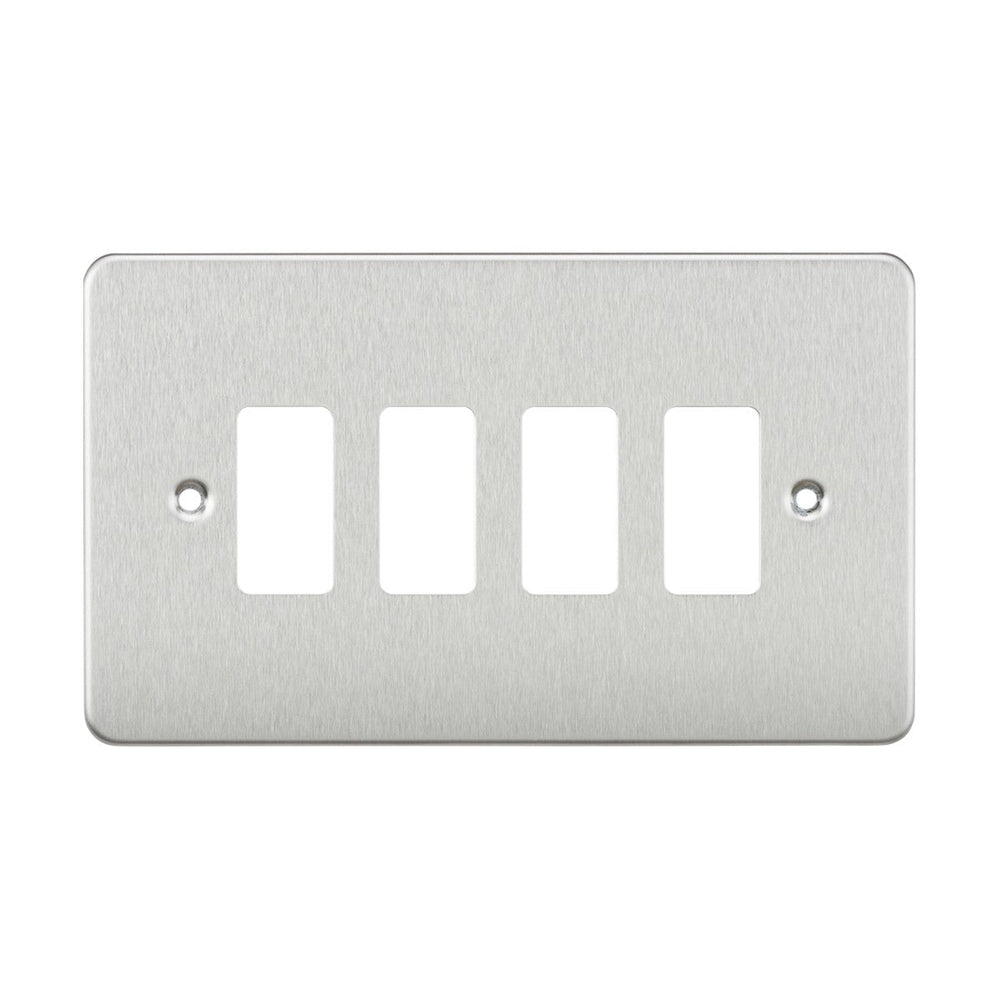

The Knightsbridge 4-gang grid faceplate is a brushed chrome cover plate designed for modular grid switch systems, measuring 147.5mm wide by 87.5mm high with a 3.5mm projection from the wall. Built from premium-grade steel with a directional brushed chrome finish, the faceplate accepts four grid module positions and coordinates with the Flat Plate range.

Grid faceplates allow custom switch and socket configurations by mounting individual grid modules (switches, dimmers, sockets, data ports) onto a separate frame behind the cover plate. This 4-gang version accommodates combinations such as two switches plus two sockets, or four switches side-by-side, depending on the modules selected. The system requires one GDF002F frame (sold separately) to hold the modules in place before the faceplate clips on.

The ultra-flat 3.5mm profile reduces the wall projection compared to standard screw-fixed plates, giving a cleaner flush appearance once installed. The brushed chrome finish shows a horizontal grain texture that softens reflections and pairs well with contemporary interiors in cooler metallic tones. The IP20 rating confirms suitability for dry indoor locations, and the steel construction carries a 25-year warranty from Knightsbridge.

Specification
Height 87.5 mm
Width 147.5 mm
Projection 3.5 mm
Construction Premium grade steel
Finish Brushed Chrome
IP Rating IP20
Warranty 25
Downloads

Product Specification Sheet

Frequently Asked

What components are needed for a complete installation?

This faceplate requires one GDF002F frame (sold separately) to hold the grid modules, plus your choice of grid switches, sockets or other modules to fill the four positions. The frame fixes to the back box first, modules clip into the frame, then the faceplate clips over the assembly.

What back box depth is required?

Grid systems typically require a 35mm minimum back box depth to accommodate the frame and modules behind the faceplate. Check the specifications of your chosen grid modules for exact depth requirements.

Can I mix different module types?

Yes. The 4-gang grid system allows any combination of compatible grid modules across the four positions, such as two light switches, one dimmer and one socket, or four data ports. All modules must be from the same grid range for correct fitting.

What other finishes are available in this range?

Knightsbridge produces the Flat Plate grid faceplate in multiple finishes including polished chrome, matt black, polished brass and white. Search for 'Knightsbridge grid faceplate' or filter by finish to find other variants stocked at Niori.
