10A Triple Pole Fan Isolator Module - Anthracite

£699
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

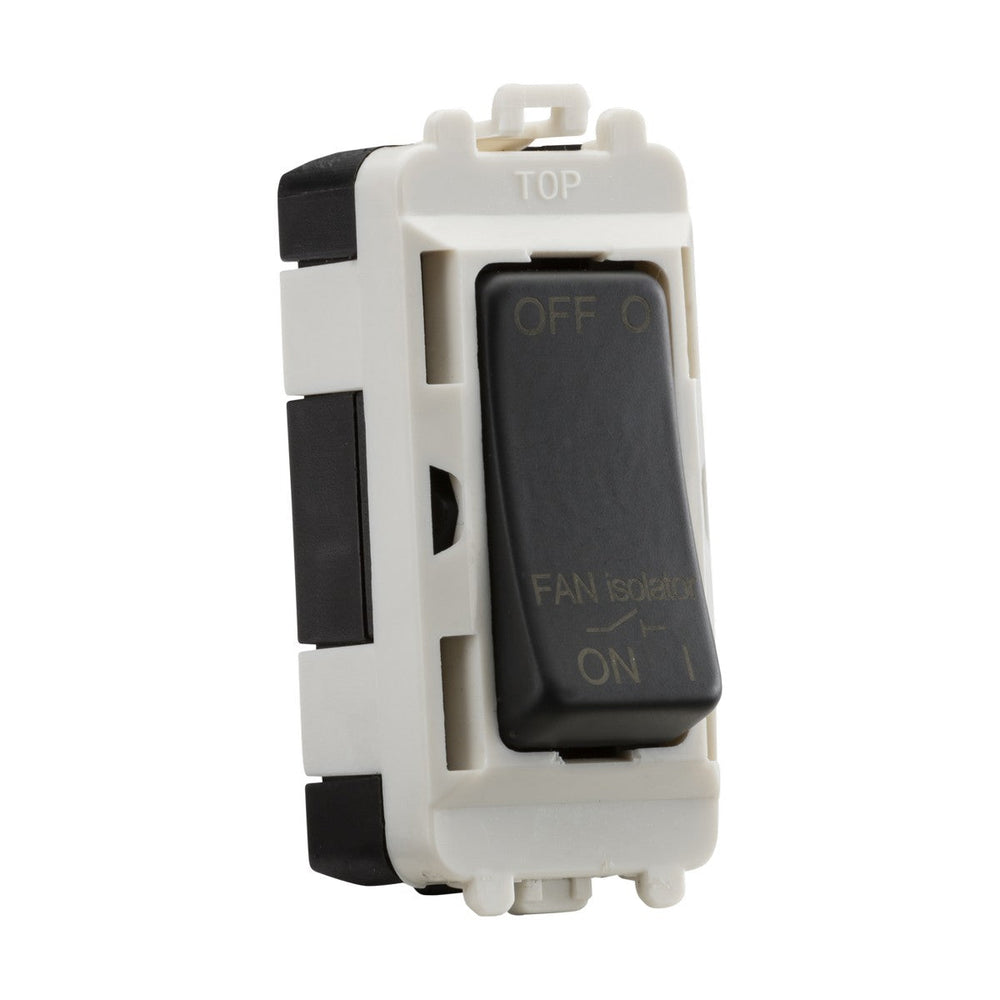

The Knightsbridge 10A fan isolator module is a single-width grid component in an anthracite finish, designed to provide triple-pole isolation for bathroom extractor fans, kitchen ventilation, and similar 230V 50Hz fan circuits. The module clips into the front of a compatible Knightsbridge grid mounting frame (sold separately), allowing it to be combined with switches, sockets and other grid modules on the same faceplate.

Triple-pole isolation switches both live and neutral lines plus the fan's third connection (typically used for timed or humidity-sensing circuits), providing complete circuit isolation when the fan needs servicing or replacement. The rocker is marked 'ON' at the base and 'OFF' at the top, with 'FAN ISOLATOR' embossed on the front. The module's 10A rating handles standard domestic and light commercial fan loads without issue.

The anthracite finish is a dark grey-black colour with a subtle texture that sits between matt and satin. The module body is constructed from ABS plastic with steel internal contacts, rated IP20 for indoor use and tested to a 1500A conditional short circuit current. The 35mm minimum back box depth requirement is standard for grid mounting frames, and the module's 24.8mm width allows two modules to fit side-by-side in a 2-gang grid frame or three in a 3-gang frame.

Specification
Height 56.3 mm
Width 24.8 mm
Projection 2.5 mm
Recessed Depth 17.3 mm
Min. Mounting Box Depth 35mm
Construction ABS
Construction 2 & steel
Finish Anthracite
IP Rating IP20
Primary Voltage 230V 50Hz
Warranty 25
Downloads

Product Specification Sheet

Frequently Asked

What is triple-pole isolation and why is it needed?

Triple-pole isolation switches off live, neutral and a third connection (typically used for timed or sensor control circuits in modern fans). This provides complete circuit isolation when the fan needs servicing, making it safer than single or double-pole switching.

What mounting frame does this module require?

The module clips into Knightsbridge grid mounting frames, sold separately. A 1-gang frame holds one module, a 2-gang frame holds two modules, and so on. The mounting frame fixes to a 35mm minimum back box and accepts a choice of grid faceplates.

Can this be combined with other grid modules?

Yes. The 24.8mm width allows the module to sit alongside other Knightsbridge grid switches, sockets and dimmers within the same mounting frame, all behind a single faceplate. This is useful for grouping bathroom or kitchen controls in one location.

What finish options are available?

Knightsbridge produces this fan isolator module in multiple finishes to match the wider grid range, including white, black, chrome and brass options. Use the search function or filters to find other variants in stock at Niori.
