Description

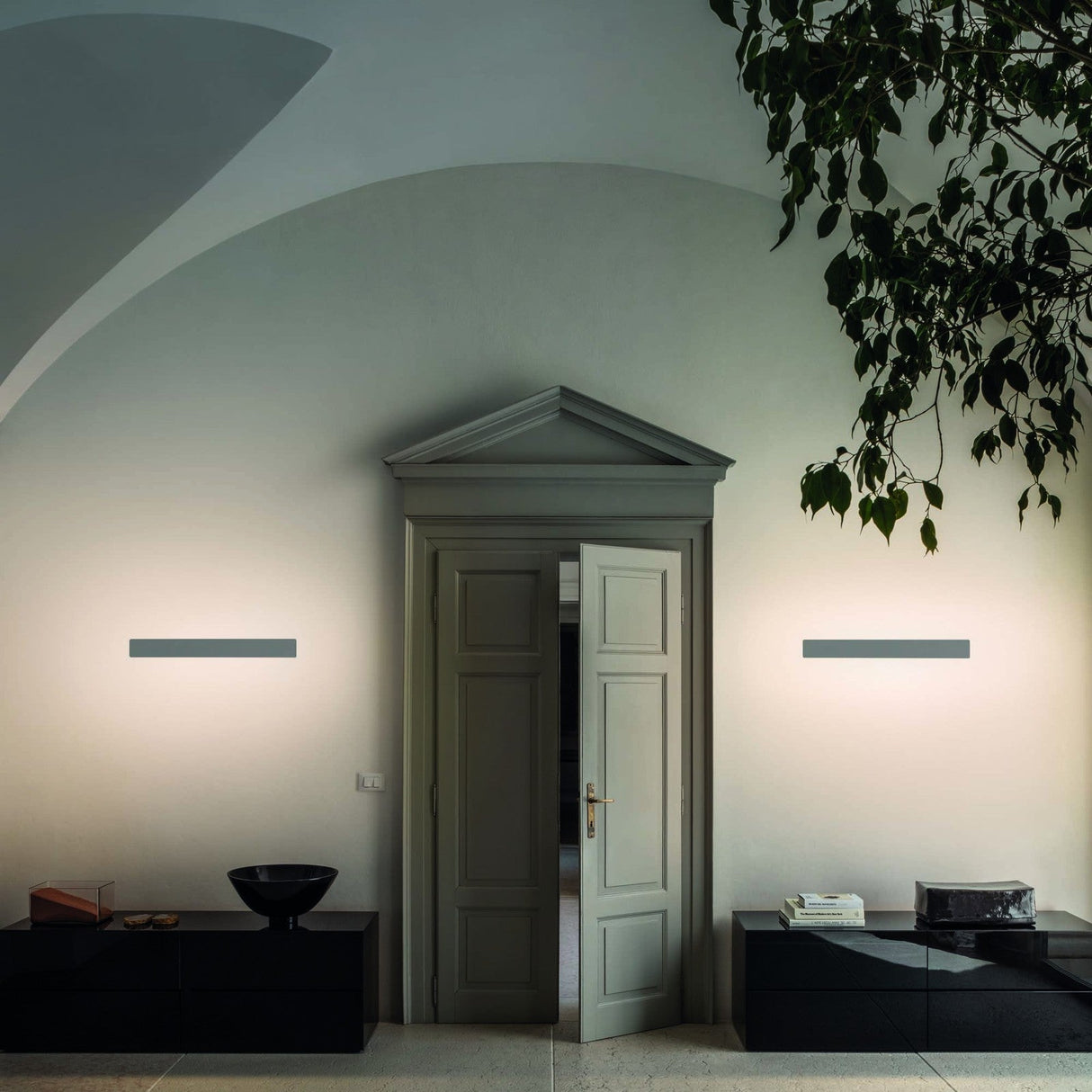

The Zig Zag is a long wall bar that lights by reflection rather than glare. Its aluminium body runs the built-in LED down a concealed channel aimed at the wall behind, so the fitting stays dark while a broad band of light spreads out above and below it. Lit, it lifts a quiet glow across the plaster; off, it holds as a plain painted length sitting close and flat.

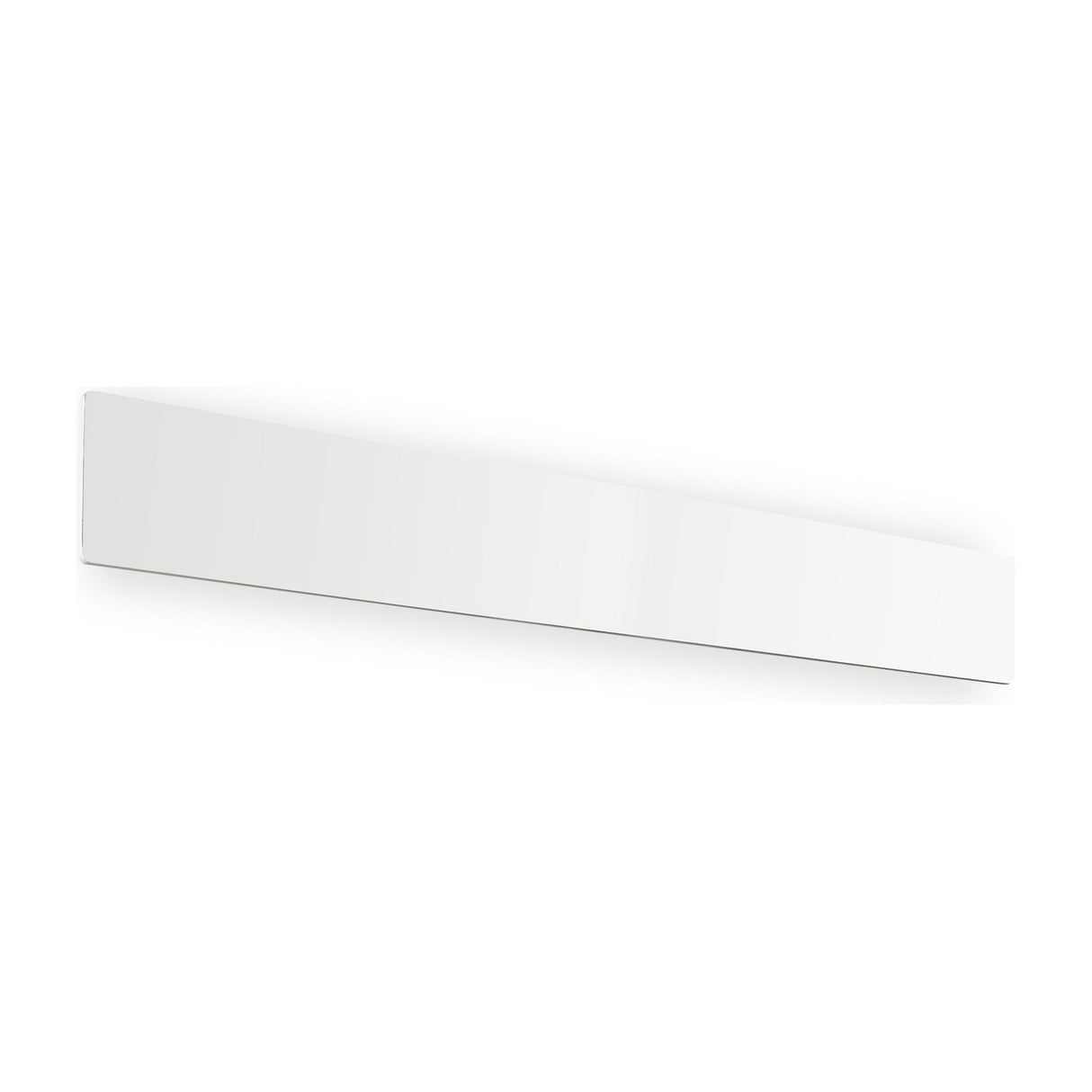

This is the largest square size at 750mm long, 80mm tall and standing 50mm clear of the wall, a proportion that carries a full sweep of light over a bed, along a hallway or across a feature wall in a living room. Because the output washes the surface instead of facing the room, the effect stays gentle and free of hotspots, with a warm 2700K tone.
The whole piece is powder-coated aluminium in white, body and diffuser alike, with no separate shade. Its integrated LED draws 30W for 3000 lumens at 2700K warm white, with a colour rendering index above 90 so tones read true, and no lamp is ever changed. It switches on and off at a fixed level without dimming and carries an IP20 rating for dry indoor rooms, arriving ready to mount.
Specification
| Number of lights |
1 |
| Light source |
Integrated LED, 30W total (3000lm, 2700K, CRI>90, included) |
| Colour temperature |
2700K (warm white) |
| Width |
750mm |
| Height |
80mm |
| Projection |
50mm |
| IP rating |
IP20 |
| Dimmable |
No (on-off switch) |
| Light emission |
Indirect |
| Frame / Structure finish |
White powder-coated aluminium |
| Diffuser / Glass |
White powder-coated aluminium |
| Materials |
aluminium |
Downloads
Datasheet
Assembly Instructions
3D Model
Frequently Asked
What kind of light does the Zig Zag give?
An indirect wash rather than a direct beam. The LED is hidden inside the bar and points at the wall, so light spreads softly above and below in a warm 2700K tone, with a colour rendering index above 90 keeping surfaces true and glare very low.
Does it need a bulb?
No. An integrated LED rated at 30W and 3000 lumens is built in and included, so nothing separate is fitted. The module runs for tens of thousands of hours before it needs any attention.
Can it be dimmed?
This version switches on and off at a set output and does not dim on its own. Dimming would depend on a compatible external control, and we can advise whether that suits your circuit.
How big is it and where does it suit?
It is 750mm long, 80mm tall and stands 50mm off the wall, the longest of the square sizes. That reach suits a bed, a hallway or a feature wall where a broad band of light is wanted.
