Description

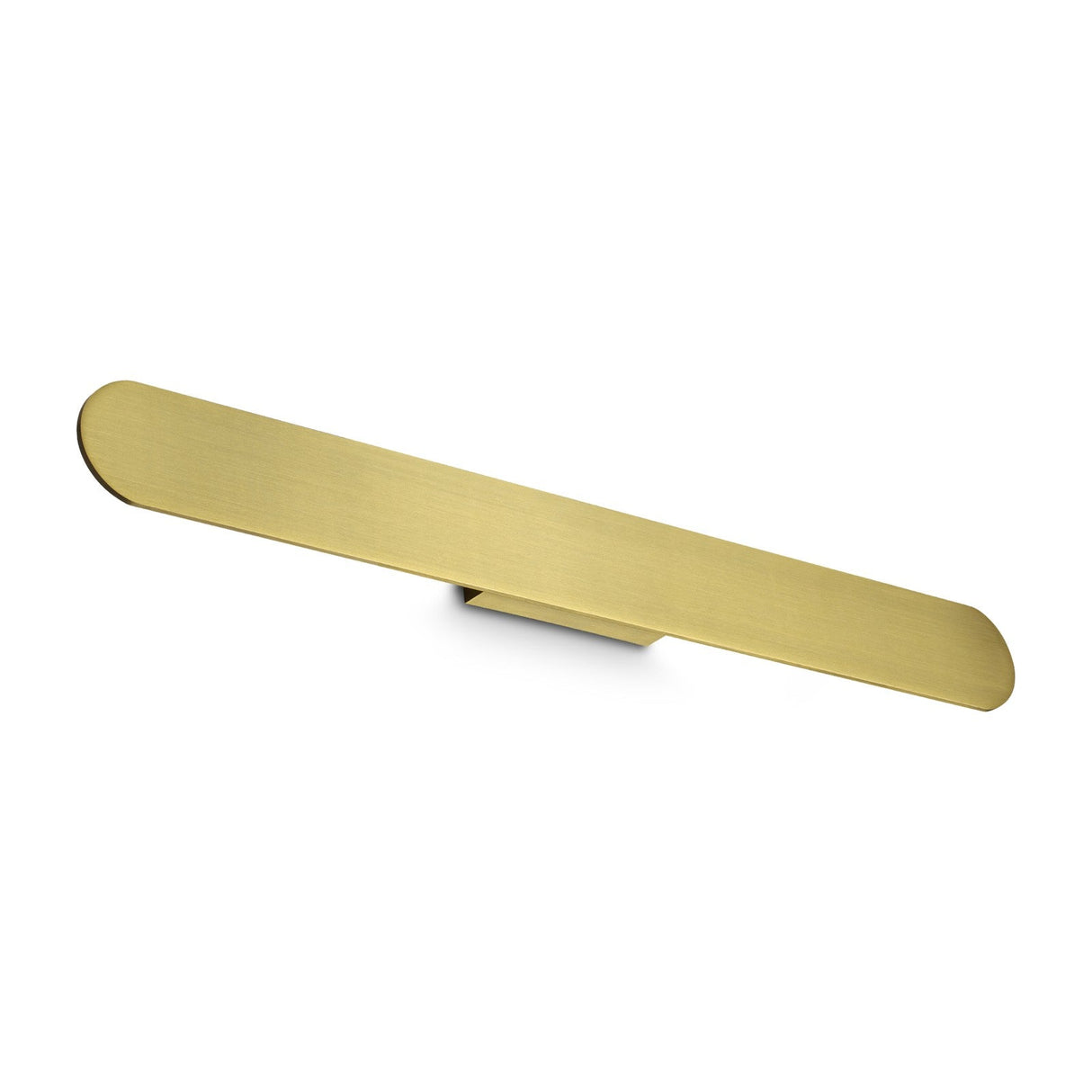

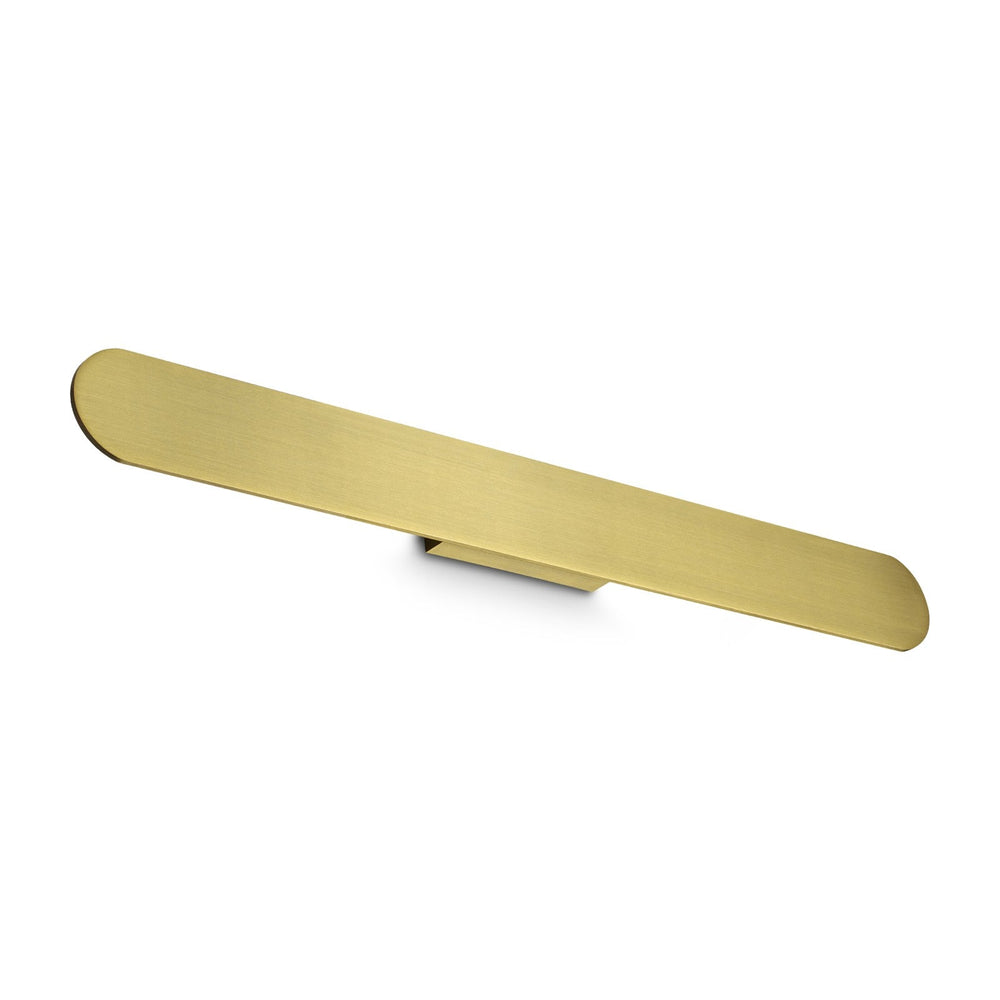

The Zig Zag is a long, slim wall light, a folded aluminium bar with rounded ends that sits close to the wall and pushes light out along its top and bottom edges. Lit, it sends one soft wash rising up the wall and a second falling below, so the fitting itself stays quiet while two broad bands of light frame it. Unlit, it reads as a warm metal bar picking up the light in the room.

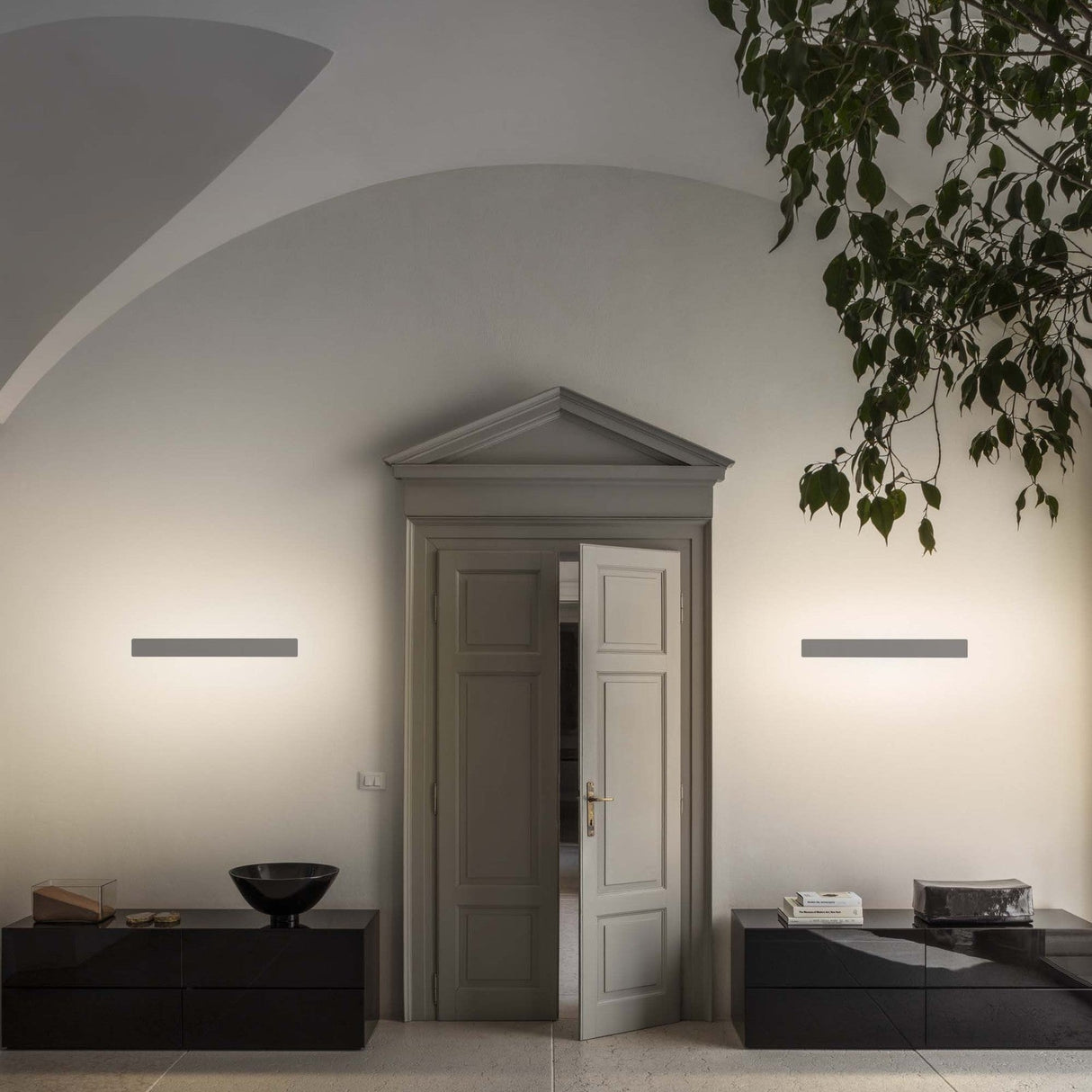

This is the brass version at 760mm long, standing just 80mm tall and projecting 50mm from the wall, so it keeps a low, level profile. The indirect up and down wash suits a hallway, a stairwell, a living room wall or a spot above a console, where the point is even reflected light rather than a bright source. Its plated brass finish adds a warm note against a pale or a panelled wall.
The base and diffuser are aluminium plated in a brass finish. Light comes from an integrated LED giving 3100 lumens at 3000K warm white, with a colour rendering index above 90 and a 50,000 hour life, so tones stay true and no bulb is ever bought or replaced. It draws 30W, runs on a simple on and off switch and is rated IP20 for dry indoor rooms.
Specification
| Number of lights |
1 |
| Light source |
Integrated LED, 30W total (3100lm, 3000K, CRI>90, 50,000h, included) |
| Colour temperature |
3000K (warm white) |
| Width |
760mm |
| Height |
80mm |
| Projection |
50mm |
| Emission |
Up and down |
| IP rating |
IP20 (indoor) |
| Dimmable |
No |
| Frame / Structure finish |
Plated brass aluminium |
| Diffuser / Glass |
Aluminium diffuser |
| Materials |
Plated aluminium base and diffuser |
Downloads
Datasheet
Assembly Instructions
3D Model
Frequently Asked
What kind of light does the Zig Zag give?
A soft indirect wash in two directions. The bar throws one band of light up the wall and another down, both from an integrated LED at 3000K warm white, with a colour rendering index above 90 so colours stay true. It lights the wall around it rather than acting as a bright point.
Does it need bulbs?
No. A built-in LED giving 3100 lumens is included and sealed into the body, so there is nothing separate to fit. The module is rated for around 50,000 hours of normal use.
Can it be dimmed?
It runs on a plain on and off switch with no built-in dimmer, so we would treat it as a fixed warm 3000K output unless a compatible dimming supply is confirmed. We are happy to advise before you order.
How big is it and where does it suit?
It is 760mm wide, 80mm tall and projects 50mm from the wall. The twin up and down wash suits a hallway, a stairwell, a living room wall or a spot above a console.
