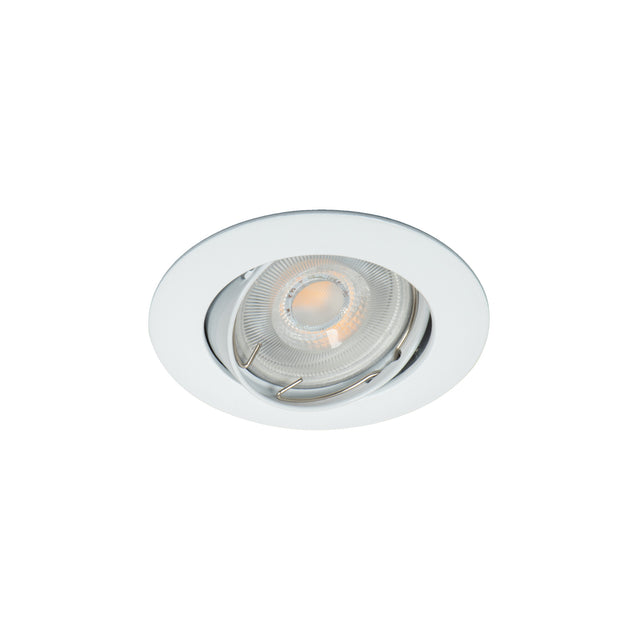

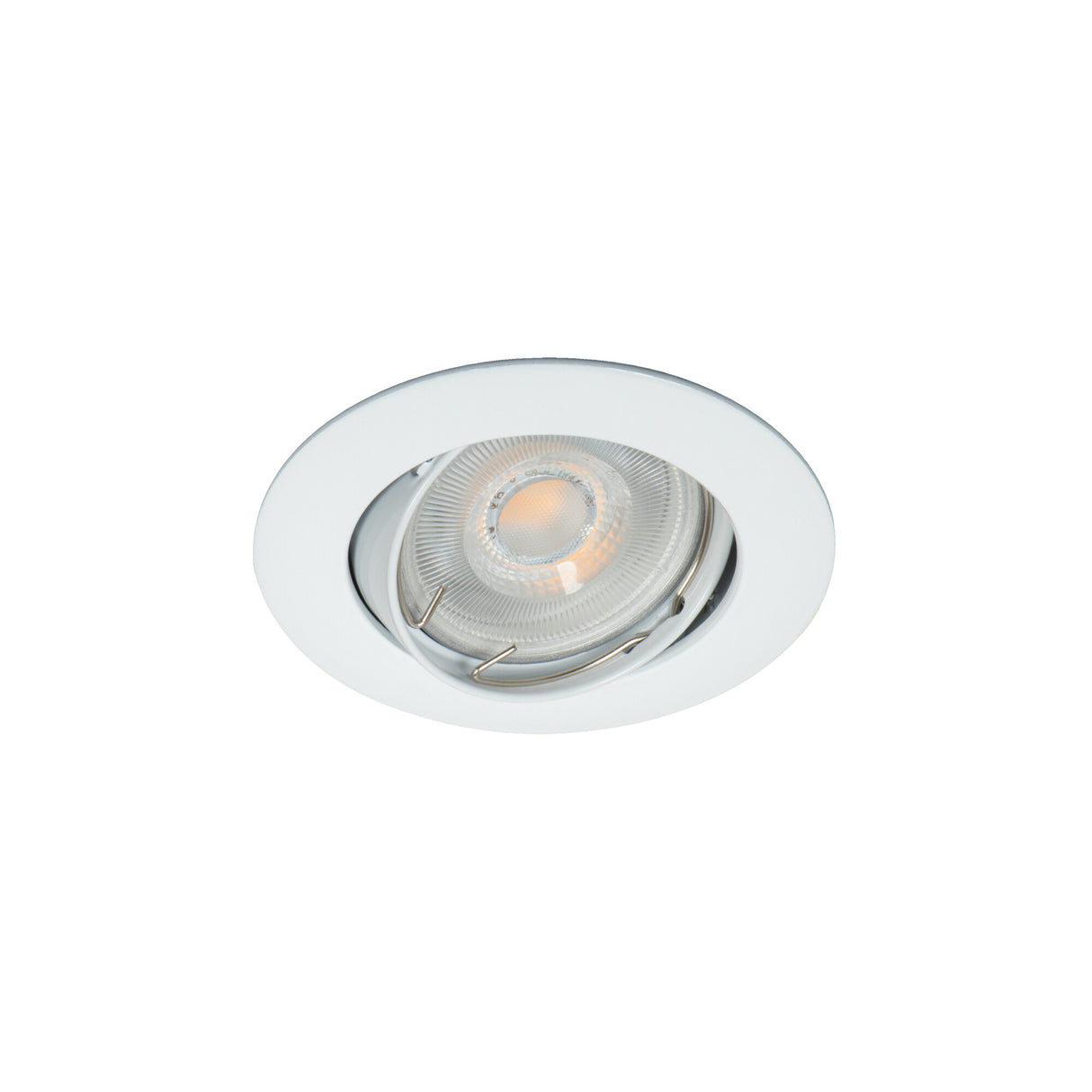

Vidi W 5515 Round MR16 Recessed Downlight - White

The Vidi W 5515 is a compact round recessed downlight built to take a single MR16 reflector lamp on a Gx5.3 cap, running on 12V supply (12 AC or 12 DC) and rated for lamps up to 10W. It drops into the ceiling for a flush, low-profile finish, and the beam character follows whichever MR16 lamp you fit, so you can choose a tighter or wider spread to suit the layout. American buyers will recognise this format as a low-voltage recessed can light, sized for a small fixed lamp rather than an integrated LED module.

Because the output depends on the MR16 lamp you choose, this fitting suits accent and general-purpose use across hallways, landings, kitchens and living spaces where a discreet ceiling point is wanted. Run several across a room on a shared 12V transformer to build up an even wash, spacing them to match your ceiling height and the beam of the chosen lamp. As an IP20 fitting it is for dry indoor rooms only, so keep it clear of bathrooms, porches and any damp or exposed position. Coverage is best judged by the lamp specified, since a narrower MR16 throws a defined pool while a wider one spreads more light.

The body is aluminium alloy in a white finish, measuring Ø82 by 22 mm and weighing just 68 g, which keeps it easy to handle during installation. It mounts recessed into the ceiling and needs a 12V supply, so a suitable low-voltage transformer or driver must be specified separately to match the total lamp load. Dimming depends on the MR16 lamp and the control gear chosen rather than the fitting itself. The wider Vidi range offers further recessed options to keep a scheme consistent.

Does it need a transformer?

Yes. The Vidi W 5515 runs on a 12V supply, either 12 AC or 12 DC, so it must be wired through a suitable low-voltage transformer or driver. Size the transformer to the combined wattage of all the lamps on the circuit, allowing for the 10W maximum per fitting.

What lamp does it take?

It accepts a single MR16 reflector lamp on a Gx5.3 cap, rated up to 10W. You can fit an LED MR16 to keep running costs and heat down, and pick the beam angle that gives the spread you want.

What size cut-out does it need?

The fitting itself measures Ø82 mm overall, so the ceiling cut-out is the smaller hole the spring clips grip behind the trim rather than the full 82 mm outer diameter. Check the supplied template before cutting, and make sure there is at least 22 mm of clear depth above the ceiling for the body.

How do I clean it?

Switch off and allow any lamp to cool, then wipe the white aluminium trim with a soft, dry or slightly damp cloth. Avoid abrasive pads and solvents so the finish stays clean, and do not let moisture reach the lamp or its connections.
