Description

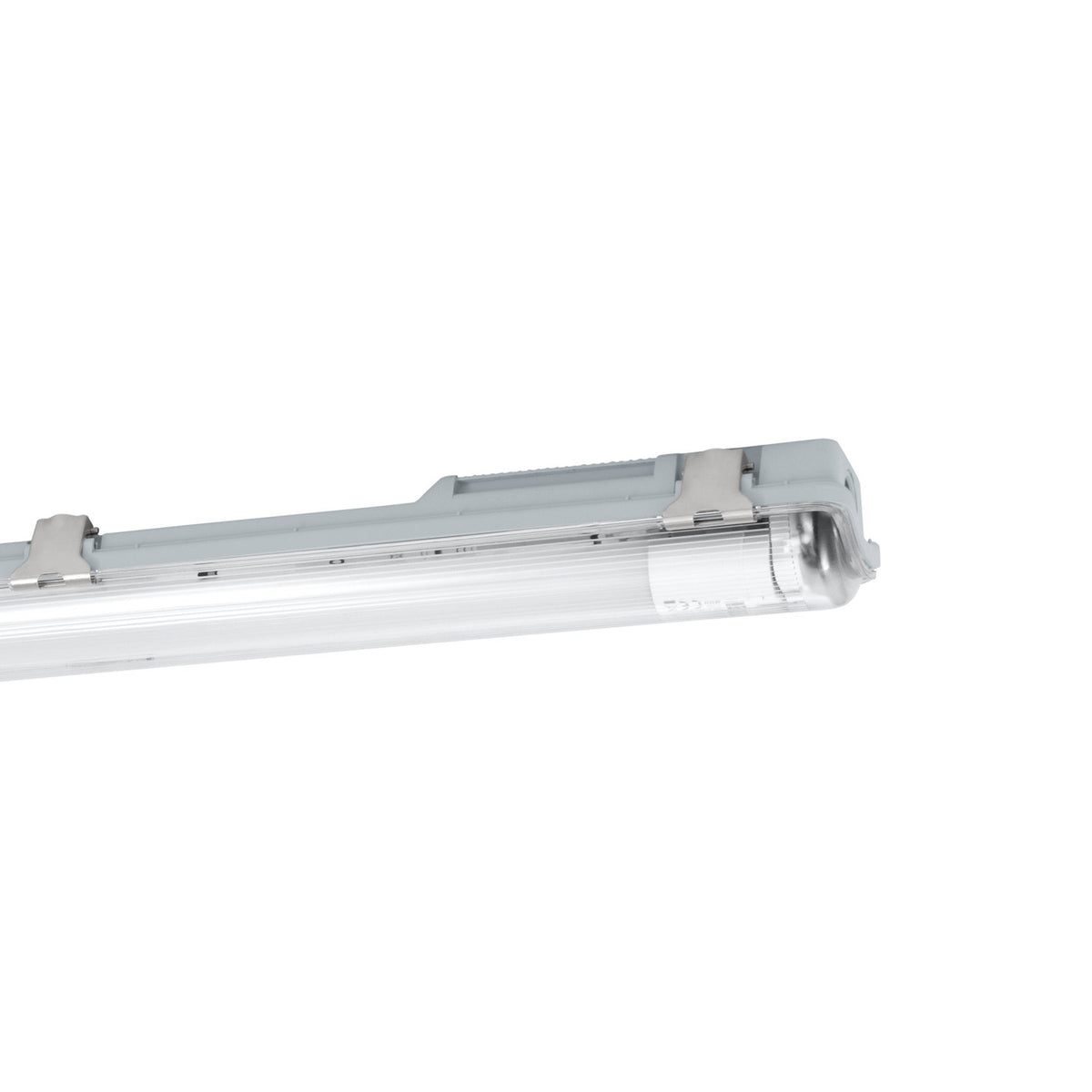

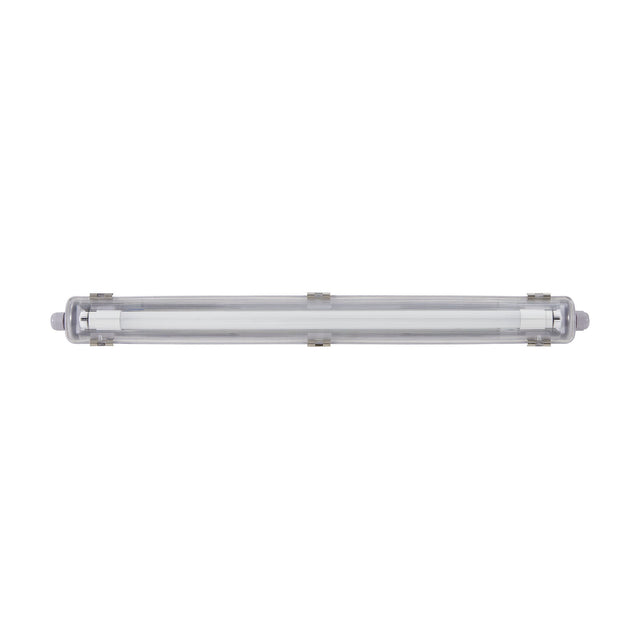

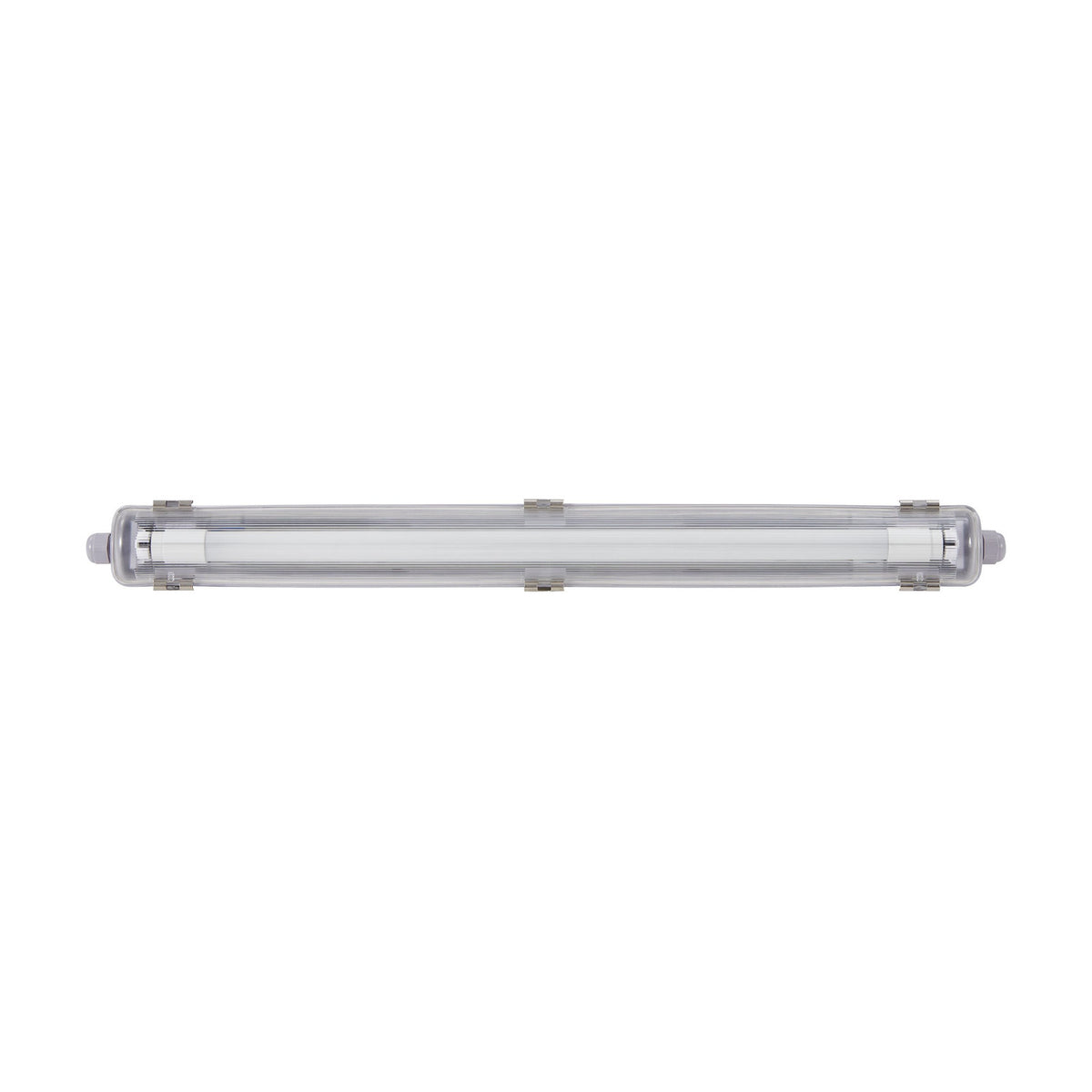

This tri-proof batten is a slim, linear light measuring 65cm long, 7.3cm wide and 5.6cm high. It has a grey plastic body and a clear plastic diffuser held in place by metal clips. It takes a single G13 LED tube and is rated at 1,650lm with a colour temperature of 4000K, a crisp neutral white that suits close work. The IP rating is IP65, so the batten is sealed against dust and protected from jets of water: it can live outdoors on a house wall just as happily as it works inside a garage.
We suggest it for the places where an ordinary ceiling light would struggle: garages, workshops, sheds, utility rooms, cellars and covered porches. The sealed body keeps out the dust from sawing and sanding, and at IP65 it is well suited to the damp of an unheated outbuilding. We would also suggest it for a bathroom, where a qualified electrician will confirm the right zone. For anyone who wants clear, bright light over a workbench, a parked car or a long run of shelving, this grey batten does the job plainly and without fuss.
Both the body and the diffuser are plastic, which keeps the batten to a light 0.53KG. There is no switch on the batten itself: it is switched at the wall and runs from a 220-240V, 50/60Hz mains supply. It has no driver, and the LED tube can be replaced by the user, so if the tube ever reaches the end of its life a new G13 tube is all it needs. The energy class is C. As a wired-in mains light it should be installed by a qualified electrician, and the installation instructions come as a download, so they can be read before the work begins.
Specification
| Lumens |
1,650lm |
| Colour Temperature |
4000K |
| Body Material |
Plastic |
| Body Colour |
Grey |
| Shade Material |
Plastic |
| Shade Colour |
Clear |
| IP Rating |
IP65 |
| Light Source |
G13 (bulb included) |
| Energy Class |
C |
| Length |
65cm |
| Width |
7.3cm |
| Height |
5.6cm |
| Weight |
0.53KG |
| Replaceable Parts |
LED replaceable by the user; no driver |
| Protection Class |
Class II |
| Voltage |
220-240V, 50/60Hz |
| Operating Voltage |
220-240V, 50/60Hz |
| Switch |
None (switched at the wall) |
Downloads
Installation Instructions (PDF)
Frequently Asked
Can this batten go outdoors?
Yes. At IP65 the batten is sealed against dust and protected from jets of water, so it can live outdoors on a house wall or in a garden building such as a shed.
Is it suitable for a bathroom?
With its IP65 rating we would suggest it for a bathroom, and a qualified electrician will confirm the right zone.
What colour is the light?
The colour temperature is 4000K, a crisp neutral white, and the batten is rated at 1,650lm, which suits garages, workshops and utility rooms.
Which tube does it take?
It takes a G13 LED tube. The LED can be replaced by the user and there is no driver, so changing the tube is simple.
How big is the batten?
It is 65cm long, 7.3cm wide and 5.6cm high, and it weighs 0.53KG, so it is a slim, light fitting for a ceiling or a wall.
Does it have a switch?
No, there is no switch on the batten itself. It is switched at the wall and runs from a 220-240V, 50/60Hz mains supply.
