Description

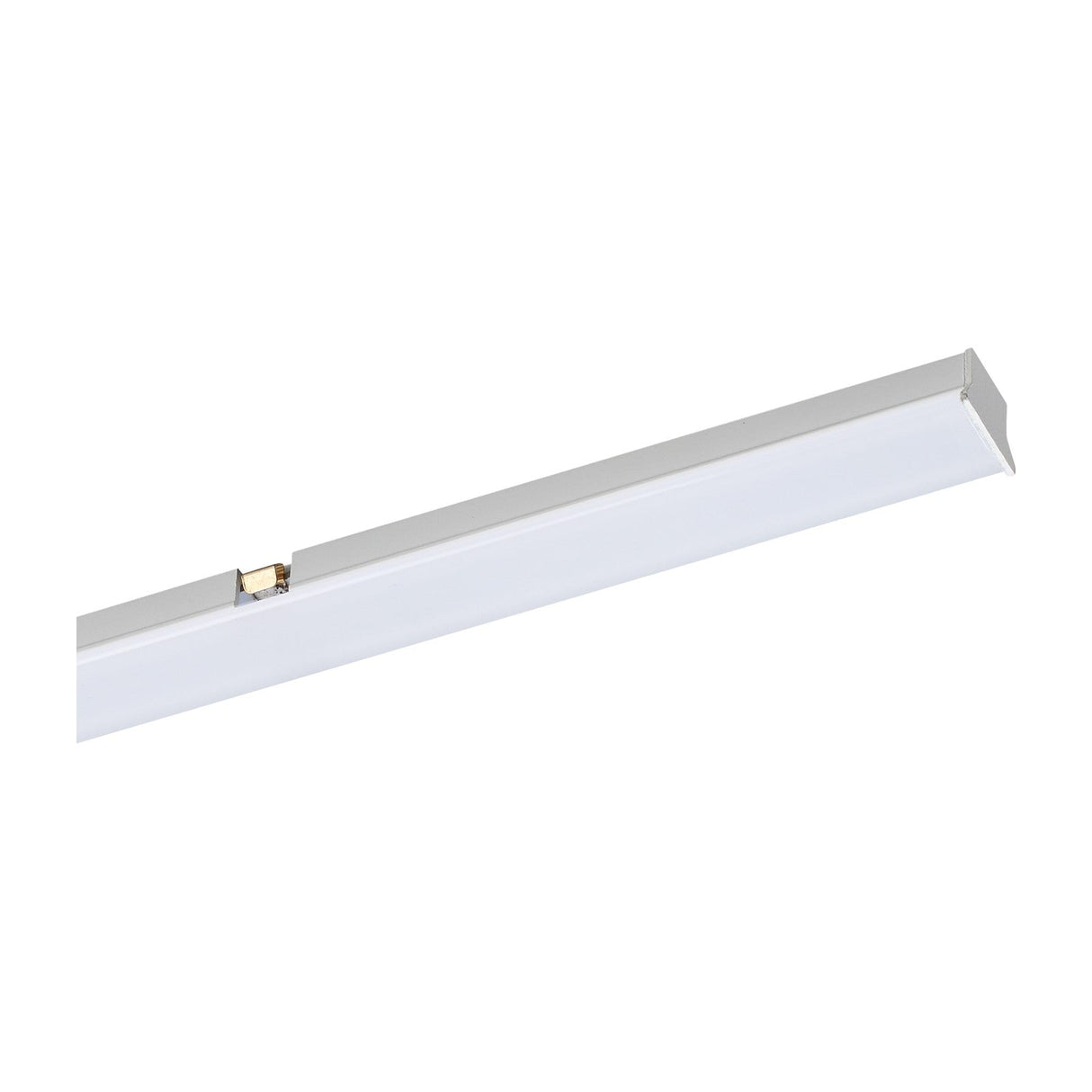

The Stick Wall Washer is a low graze bar that fixes magnetically to the low-voltage rail, but where the accent bars keep a tight line the Wall Washer opens to a broad 110 degree spread, so it washes a whole wall in an even sheet of light rather than a narrow band. At 300mm it lays a continuous field down plaster, a curtain drop or a run of joinery. Lit, it gives a clean warm 3000K wash; off, the very low matt white bar sits tight to the track at just 11.5mm tall and reads pale against a light ceiling.
The bar runs at 6W and gives 530 lumens from the 48V line, with colour rendering above 90 so paint, timber and fabric hold their true tone under the wash. The wide throw is built to flood a surface from close in, several bars sharing one recessed or surface rail to carry an unbroken sheet of light along a longer wall, then repositioned by hand when a layout changes, which suits a gallery wall, a stairwell or a bright retail backdrop.
The body is extruded aluminium in matt white and the fitting carries an IP20 rating for dry indoor rooms. The LED is built in and rated to 50,000 hours, so there is no bulb to fit. It dims by PWM through a compatible driver, and it needs the Stick rail with a remote 48V supply, neither of which comes with the bar, both of which we can supply alongside.
Specification
| Number of lights |
Linear / continuous |
| Light source |
Integrated LED, 6W total (50,000h) |
| Luminous flux |
530 lumens |
| Colour temperature |
3000K (warm white) |
| CRI |
Ra > 90 |
| Beam angle |
110 degrees |
| Length |
300mm |
| Height |
11.5mm |
| Projection |
15mm |
| IP rating |
IP20 |
| Dimmable |
Yes, PWM |
| Voltage |
48V DC (remote driver required, not included) |
| Mounting |
Stick magnetic rail (recessed or surface) |
| Adjustment |
Fixed wash; repositions on the rail |
| Insulation class |
Class III |
| Frame / Structure finish |
Matt white aluminium |
| Materials |
Extruded aluminium |
Downloads
Datasheet
Frequently Asked
How is the Stick Wall Washer different from the accent bars?
The Wall Washer throws a broad 110 degree spread against a surface, where the accent bars keep a tighter 40 degree line. Choose the Wall Washer to flood a whole wall in an even sheet, the accent for a contained graze along a shelf or reveal.
What kind of light does the 6W Wall Washer give?
A wide, even wash of warm 3000K light at 530 lumens across a 110 degree spread, with colour rendering above 90. At 300mm it covers a full field of wall rather than picking out a single point.
Does it use a bulb, and can it be dimmed?
The LED is built in and rated to 50,000 hours, so there is no bulb to fit. It dims by PWM through a compatible 48V driver, which sits remote and is supplied separately.
What does it need to run?
The Stick recessed or surface rail and a remote 48V driver, not a standard mains ceiling point. The bar clips to the track and several can be lined up into a longer sheet, so we can provide the rail, feed and driver to build the run.
