Description

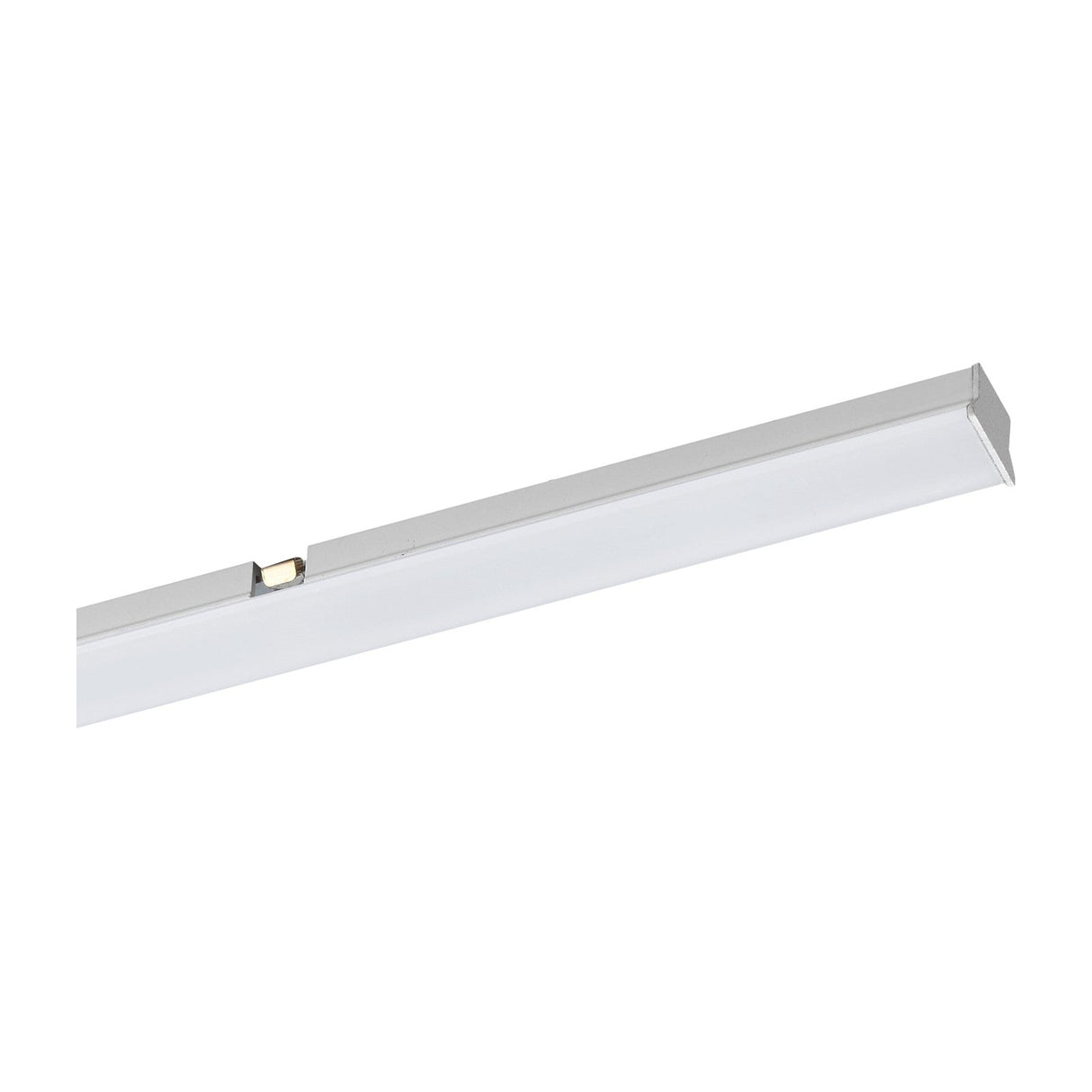

The Stick Wall Washer is a wide-throw bar that fixes magnetically to the low-voltage rail, laying down a very broad 110 degree spread of integrated-LED light across a whole surface rather than a directed beam. At 600mm it is the long member of the range, so a single length covers a wide plane of wall or ceiling in an even wash. Lit, it gives a soft warm 3000K field; off, the slim matt white profile sits almost flat against the track at just 11.5mm tall.
It runs 12W for about 1200 lumens from the 48V line, with a colour rendering above 90 so plaster, timber and paint hold their true tone under a full flood of light. Because the bar lives on the magnetic track, several can butt together into a continuous run and reposition by hand when a layout changes, which suits an alcove, a display wall or a low ceiling that wants gentle general light rather than pooled spots.
The body is extruded aluminium in matt white and the fitting is rated IP20 for dry indoor rooms. The LED is built in and rated to 50,000 hours, so there is no bulb to fit. It dims by PWM through a compatible driver, and it needs the Stick rail with a remote 48V supply, neither of which comes with the bar, both of which we can supply alongside.
Specification
| Number of lights |
Linear / continuous |
| Light source |
Integrated LED, 12W total (50,000h) |
| Luminous flux |
1200 lumens |
| Colour temperature |
3000K (warm white) |
| CRI |
Ra > 90 |
| Beam angle |
110 degrees |
| Length |
600mm |
| Height |
11.5mm |
| Projection |
15mm |
| IP rating |
IP20 |
| Dimmable |
Yes, PWM |
| Voltage |
48V DC (remote driver required, not included) |
| Mounting |
Stick magnetic rail (recessed or surface) |
| Adjustment |
Fixed line; repositions on the rail |
| Insulation class |
Class III |
| Frame / Structure finish |
Matt white aluminium |
| Materials |
Extruded aluminium |
Downloads
Datasheet
Frequently Asked
What kind of light does the Stick Wall Washer give?
A broad, even wash of warm 3000K light at about 1200 lumens across a very wide 110 degree spread, with colour rendering above 90. It floods a whole plane of wall or ceiling rather than picking out a spot.
How is it different from the Stick accent bar?
Much wider. The accent bar throws a 40 degree graze to skim a surface, while the Wall Washer spreads 110 degrees for general fill. We would use the Wall Washer where you want soft overall light and the accent where you want to rake texture.
Does it use a bulb, and can it be dimmed?
The LED is built in and rated to 50,000 hours, so there is no bulb to fit. It dims by PWM through a compatible 48V driver, which sits remote and is supplied separately.
What does it need to run?
The Stick recessed or surface rail and a remote 48V driver, not a standard mains ceiling point. The bar clips to the track and several can be joined into a longer run, so we can provide the rail, feed and driver to build it.
