Description

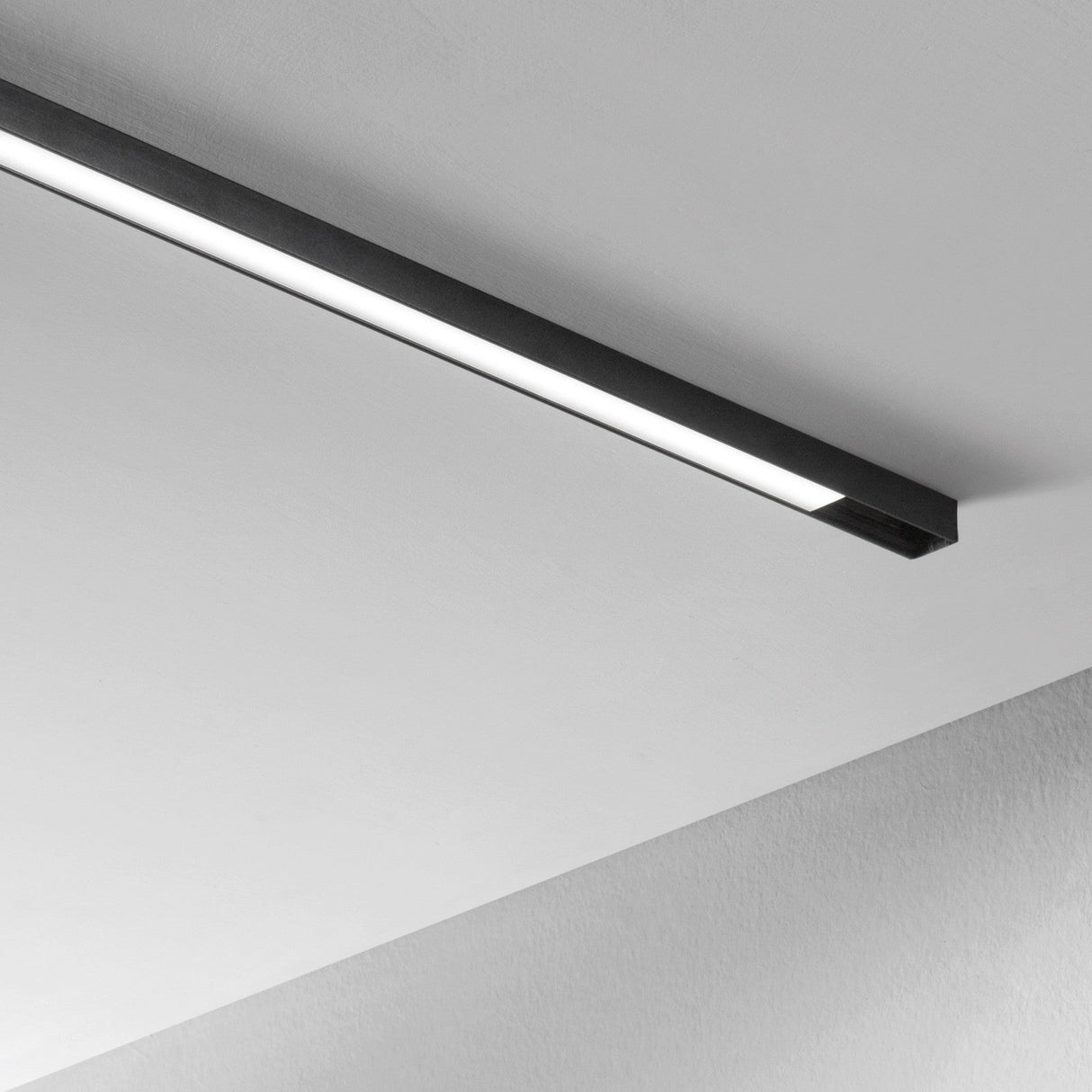

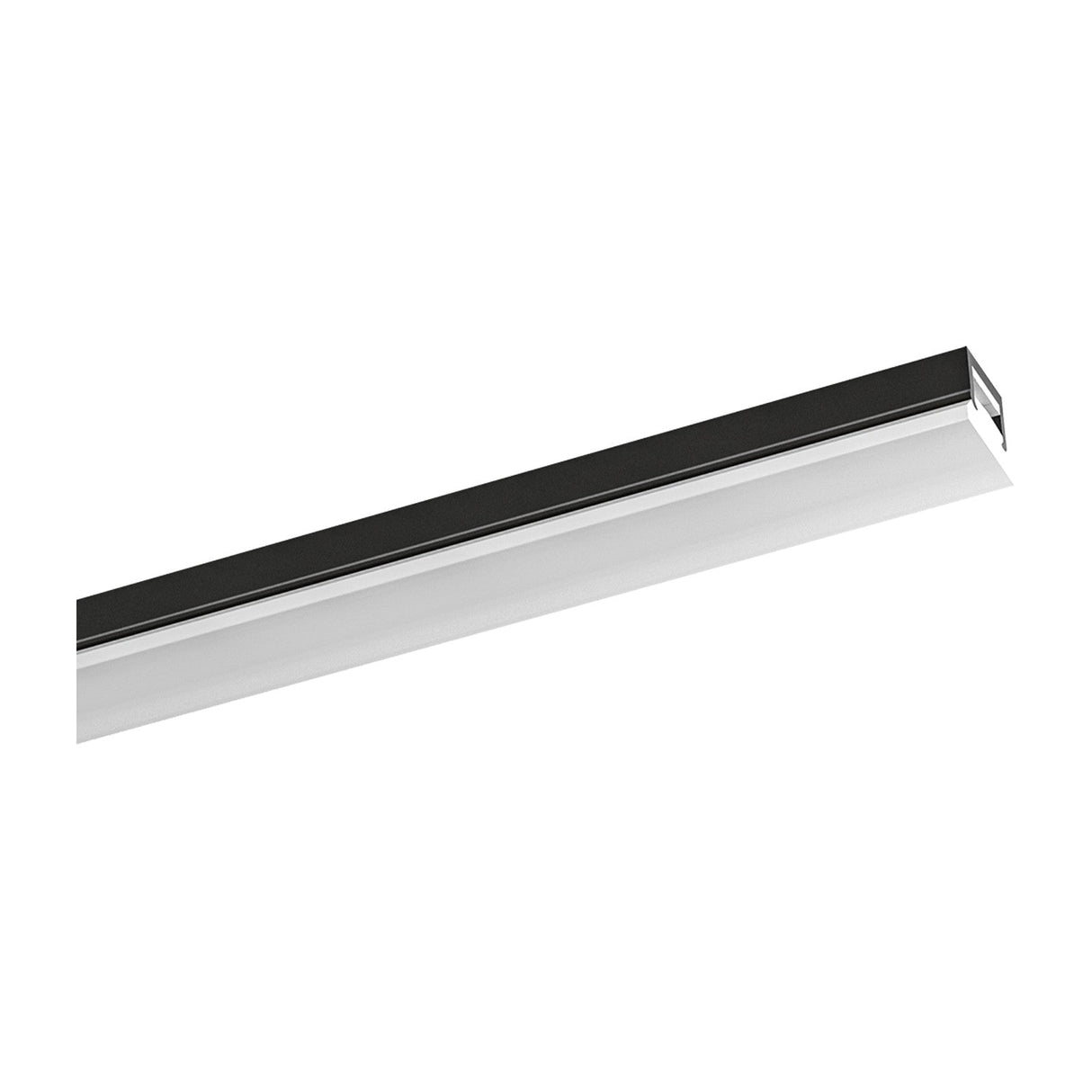

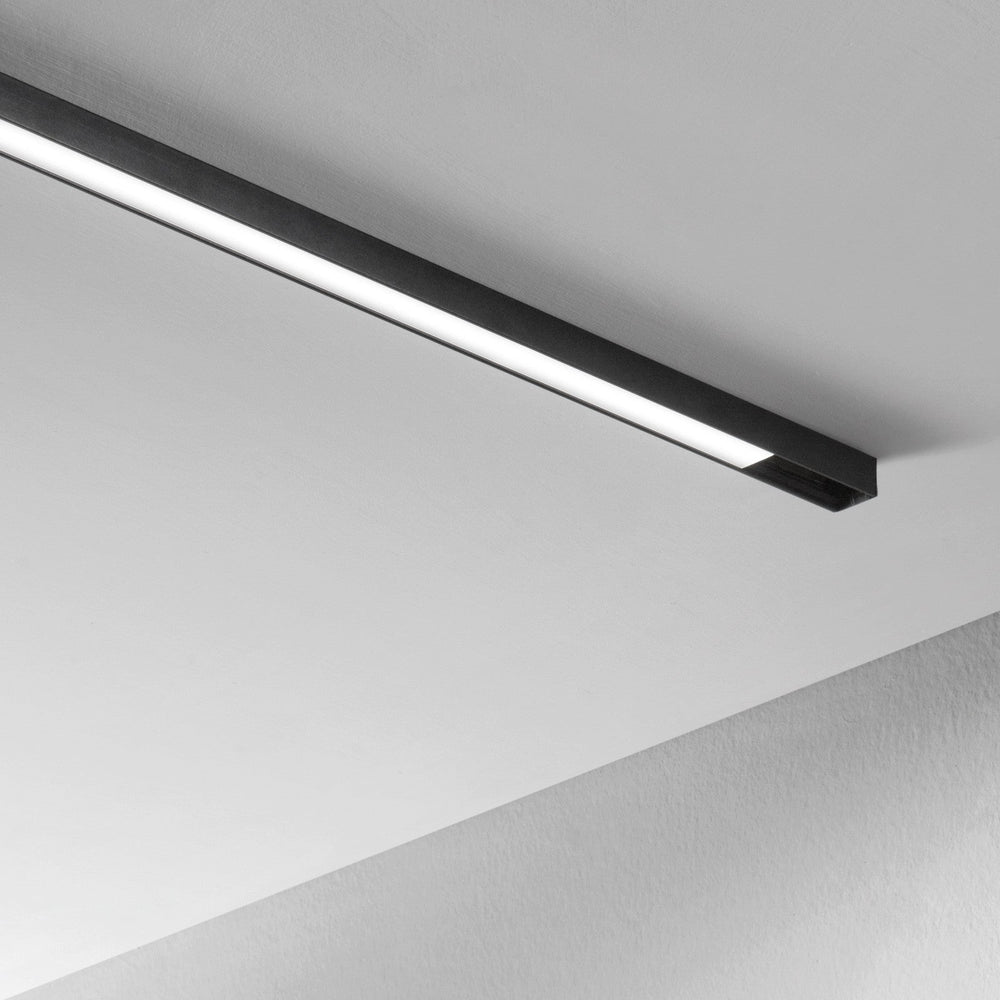

The Stick Wall Washer is a low graze bar that fixes magnetically to the low-voltage rail, opening to a broad 110 degree spread so it washes a whole wall in an even sheet of light rather than a narrow band. At 600mm it draws a generous continuous field across plaster, a curtain drop or a long run of joinery in one piece. Lit, it gives a warm 2700K wash that leans amber; off, the very low bar sits tight to the track at just 11.5mm tall.
The bar runs at 12W and gives 1150 lumens from the 48V line, twice the length and output of the 300mm Wall Washer for covering a broad span without joining two pieces, with colour rendering above 90 so paint, timber and fabric hold their true tone. Bars can be lined end to end on one recessed or surface rail to flood a whole wall in an unbroken sheet, then repositioned by hand when a layout changes, which suits a lounge feature wall, a stairwell or a longer hospitality backdrop.
The body is extruded aluminium in matt black and the fitting carries an IP20 rating for dry indoor rooms. The LED is built in and rated to 50,000 hours, so there is no bulb to fit. It dims by PWM through a compatible driver, and it needs the Stick rail with a remote 48V supply, neither of which comes with the bar, both of which we can supply alongside.
Specification
| Number of lights |
Linear / continuous |
| Light source |
Integrated LED, 12W total (50,000h) |
| Luminous flux |
1150 lumens |
| Colour temperature |
2700K (warm white) |
| CRI |
Ra > 90 |
| Beam angle |
110 degrees |
| Length |
600mm |
| Height |
11.5mm |
| Projection |
15mm |
| IP rating |
IP20 |
| Dimmable |
Yes, PWM |
| Voltage |
48V DC (remote driver required, not included) |
| Mounting |
Stick magnetic rail (recessed or surface) |
| Adjustment |
Fixed wash; repositions on the rail |
| Insulation class |
Class III |
| Frame / Structure finish |
Matt black aluminium |
| Materials |
Extruded aluminium |
Downloads
Datasheet
Frequently Asked
How does the 12W Wall Washer compare with the 6W Wall Washer?
Same slim 11.5mm profile and 110 degree spread, but twice as long at 600mm and 1150 lumens against 510, so it floods a wider span of wall without joining two bars. We would pick it for a longer feature wall or a full backdrop.
How is the Wall Washer different from the accent bars?
The Wall Washer throws a broad 110 degree wash against a surface, where the accent bars keep a tighter 40 degree line. Choose the Wall Washer to flood a whole wall in an even sheet, the accent for a contained graze along a shelf or reveal.
Does it use a bulb, and can it be dimmed?
The LED is built in and rated to 50,000 hours, so there is no bulb to fit. It dims by PWM through a compatible 48V driver, which sits remote and is supplied separately.
What does it need to run?
The Stick recessed or surface rail and a remote 48V driver, not a standard mains ceiling point. The bar clips to the track and units can be joined into a longer sheet, so we can provide the rail, feed and driver to build the run.
