Description

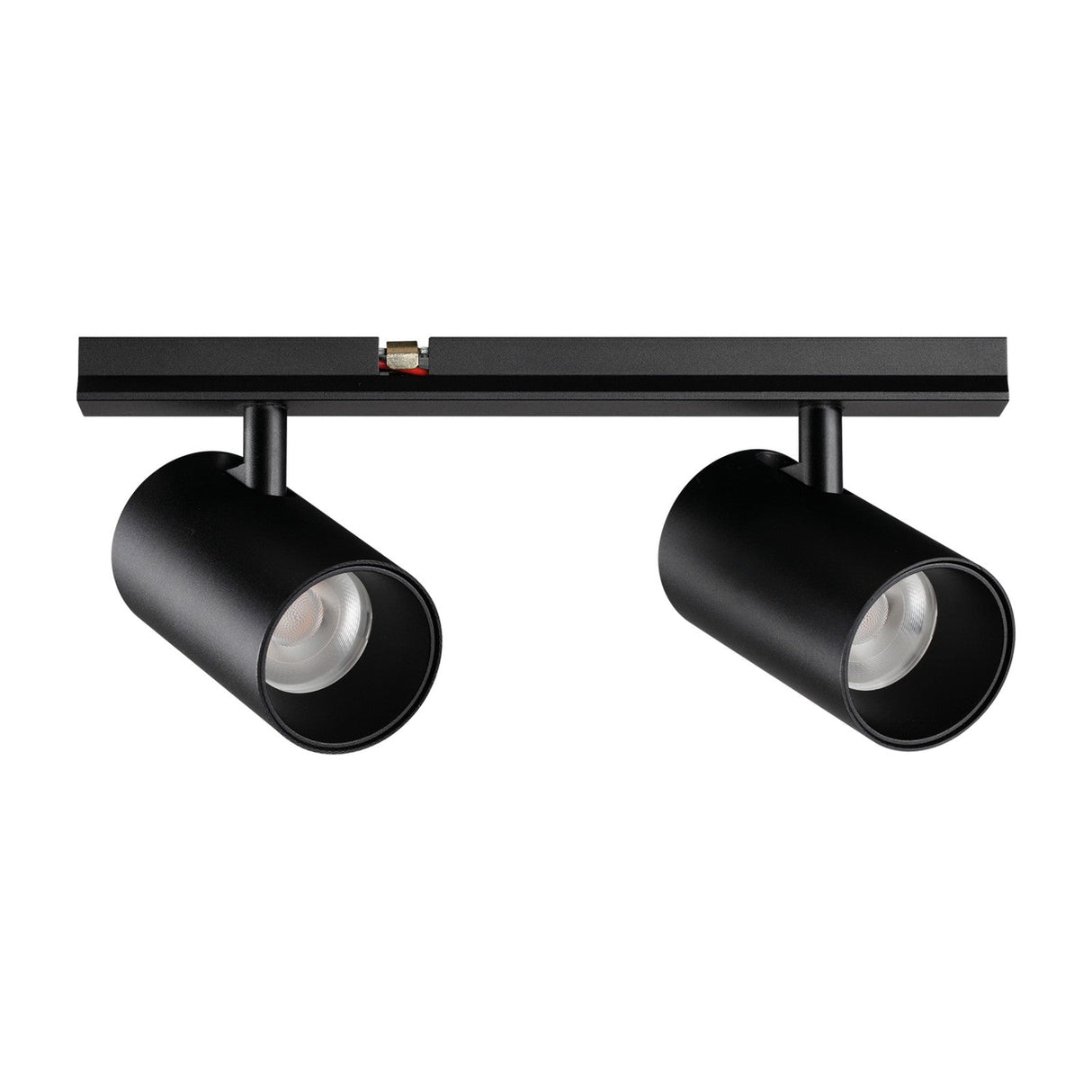

The Stick double is a twin-head spotlight that fixes magnetically to the Stick low-voltage rail, carrying two aimable integrated-LED heads on one body so a single point on the run lights two targets at once. Each head tilts and turns on its mount, so the pair can splay to cover two pictures side by side or angle together onto one broader area. Lit, the two 30 degree beams read as a matched pair of warm 2700K pools; off, the 150mm matt black body keeps a low profile on the rail.
The two heads draw 10W together and give about 780 lumens in total from the 48V line, with a colour rendering above 90 so artwork, timber and fabric keep their true tone under the beams. Because the body lives on the magnetic track, it slides along a recessed or surface rail and repositions by hand whenever a hang or layout changes, which suits a gallery wall, a stair run or a pair of framed pieces that want even accenting from one fixing.
The body is extruded aluminium in matt black and the fitting is rated IP20 for dry indoor rooms. Both LED modules are built in and rated to 50,000 hours, so there is no bulb to fit or replace. It dims by PWM through a compatible driver, and it needs the Stick rail and a remote 48V supply, neither of which is included, all of which we can supply alongside.
Specification
| Number of lights |
2 |
| Light source |
Integrated LED, 10W total (50,000h) |
| Luminous flux |
780 lumens |
| Colour temperature |
2700K (warm white) |
| CRI |
Ra > 90 |
| Beam angle |
30 degrees per head |
| Length |
150mm |
| Height |
72.5mm |
| Projection |
32mm |
| IP rating |
IP20 |
| Dimmable |
Yes, PWM |
| Voltage |
48V DC (remote driver required, not included) |
| Mounting |
Stick magnetic rail (recessed or surface) |
| Adjustment |
Both heads tilt and rotate independently |
| Insulation class |
Class III |
| Frame / Structure finish |
Matt black aluminium |
| Materials |
Extruded aluminium |
Downloads
Datasheet
Frequently Asked
What kind of light does the Stick double spotlight give?
Two aimable beams of warm 2700K light from one body, about 780 lumens in total, with a colour rendering above 90. Each head spreads 30 degrees, so the pair can light two objects side by side or angle onto a single wider area.
Do the heads use bulbs?
No, both LED modules are built in and rated to 50,000 hours. There is nothing to fit or replace; the body fixes magnetically to the Stick rail and runs from its 48V supply.
Can it be dimmed?
Yes, it dims by PWM through a compatible 48V driver, so both beams adjust together to suit the room. The driver is remote and supplied separately.
What does it need to run?
The Stick recessed or surface rail and a remote 48V driver, not a standard mains ceiling point. The body clips to the track and can be slid and re-aimed later, so we can supply the rail, feed and driver to build the run.
