Description

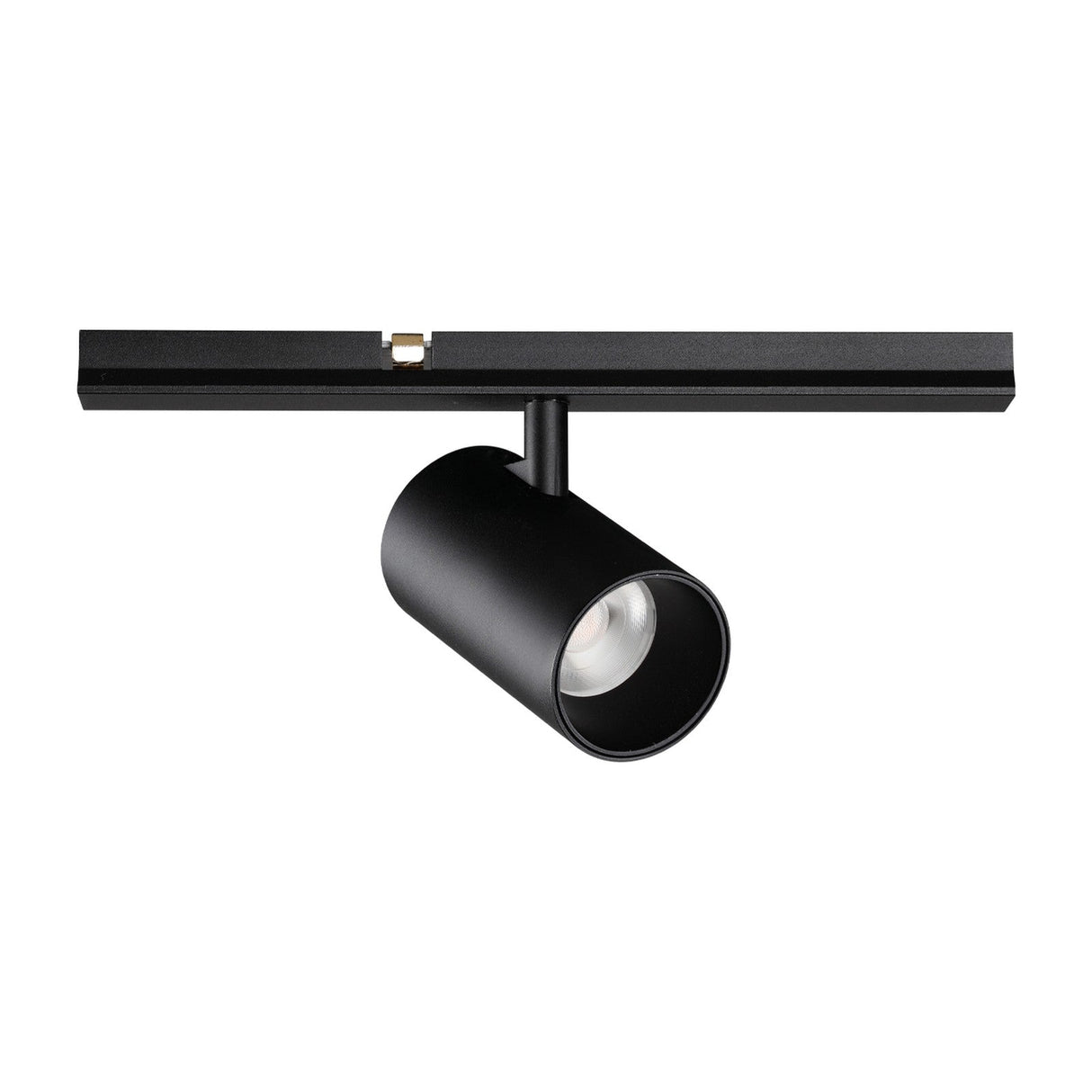

The Stick is an aimable spotlight that fixes magnetically to the low-voltage rail, giving you one directed integrated-LED head you slide along the run and lock where light is wanted. The head tilts and turns on its mount, and a 36 degree beam covers a picture or a grouped display with a soft margin around the edge. Lit, it reads as a warm 3000K pool; off, the slim matt black body stands 150mm long on the track.

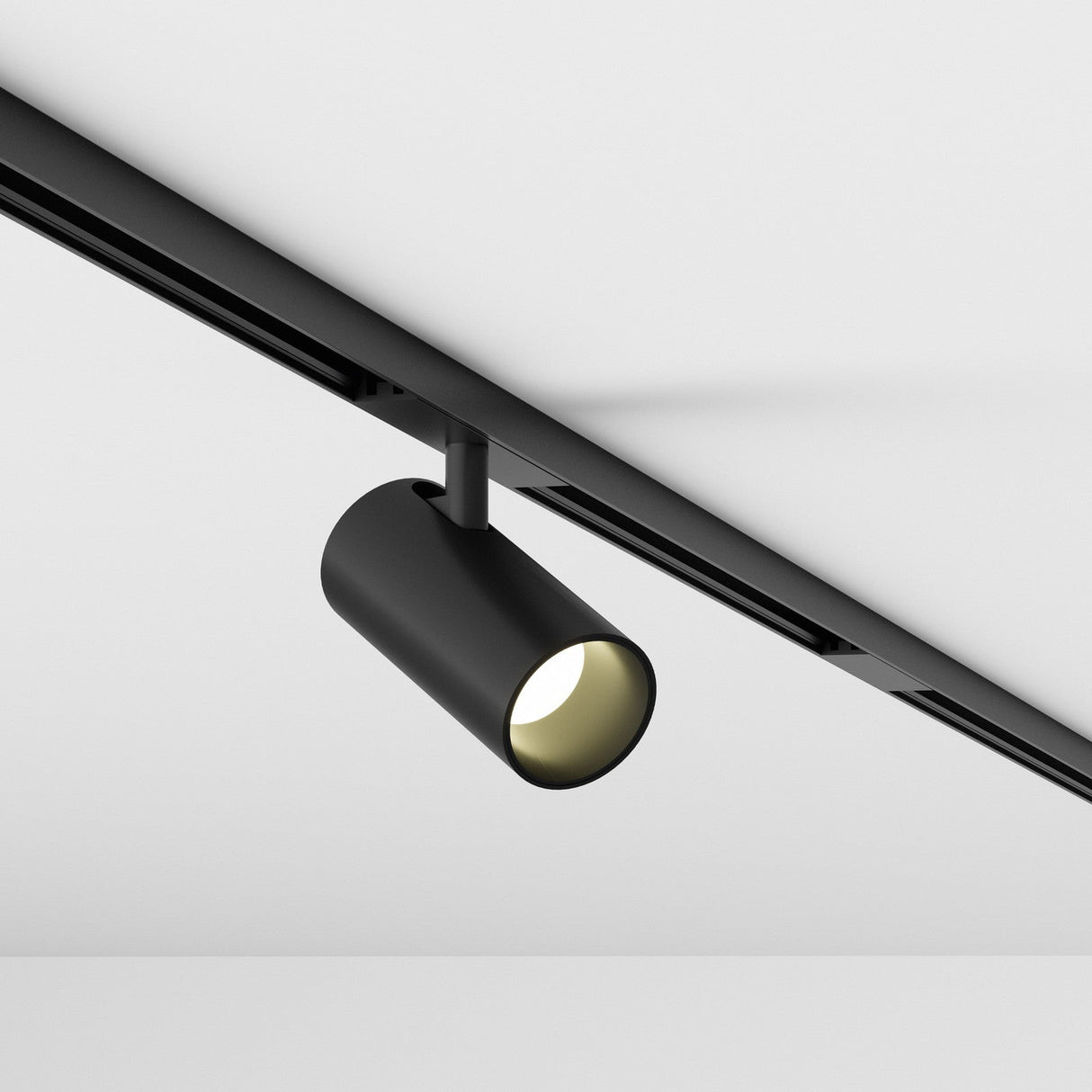

Its module runs at 7W and gives 620 lumens from the 48V line, with colour rendering above 90 so artwork, timber and fabric hold their true tone under the beam. Because the head lives on the magnetic rail, several can share one recessed or surface run and each aim at a separate target, then reposition by hand whenever a hang or layout shifts, which suits a gallery wall, a shelf bay or a retail fit-out.
The body is extruded aluminium in matt black and the fitting carries an IP20 rating for dry indoor rooms. The LED is built in and rated to 50,000 hours, so there is no bulb to fit. It dims by PWM through a compatible driver, and it needs the Stick rail with a remote 48V supply, neither of which comes with the head, both of which we can supply alongside.
Specification
| Number of lights |
1 |
| Light source |
Integrated LED, 7W total (50,000h) |
| Luminous flux |
620 lumens |
| Colour temperature |
3000K (warm white) |
| CRI |
Ra > 90 |
| Beam angle |
36 degrees |
| Length |
150mm |
| Height |
109.2mm |
| Projection |
42mm |
| IP rating |
IP20 |
| Dimmable |
Yes, PWM |
| Voltage |
48V DC (remote driver required, not included) |
| Mounting |
Stick magnetic rail (recessed or surface) |
| Adjustment |
Head tilts and rotates |
| Insulation class |
Class III |
| Frame / Structure finish |
Matt black aluminium |
| Materials |
Extruded aluminium |
Downloads
Datasheet
Frequently Asked
What kind of light does the Stick 7W spotlight give?
One directed beam of warm 3000K light at 620 lumens, with colour rendering above 90. The 36 degree spread lights a framed picture or a small grouped display rather than a single narrow point.
Does it use a bulb?
No, the LED is built in and rated to 50,000 hours. There is nothing to fit or replace; the head fixes magnetically to the rail and runs from its 48V supply.
Can it be dimmed?
Yes, it dims by PWM through a compatible 48V driver, so the accent level can be set to suit the room. That driver sits remote and is supplied separately.
What does it need to run?
The Stick recessed or surface rail and a remote 48V driver, not a standard mains ceiling point. The head clips to the track and can be slid and re-aimed later, so we can provide the rail, feed and driver to build the run.
